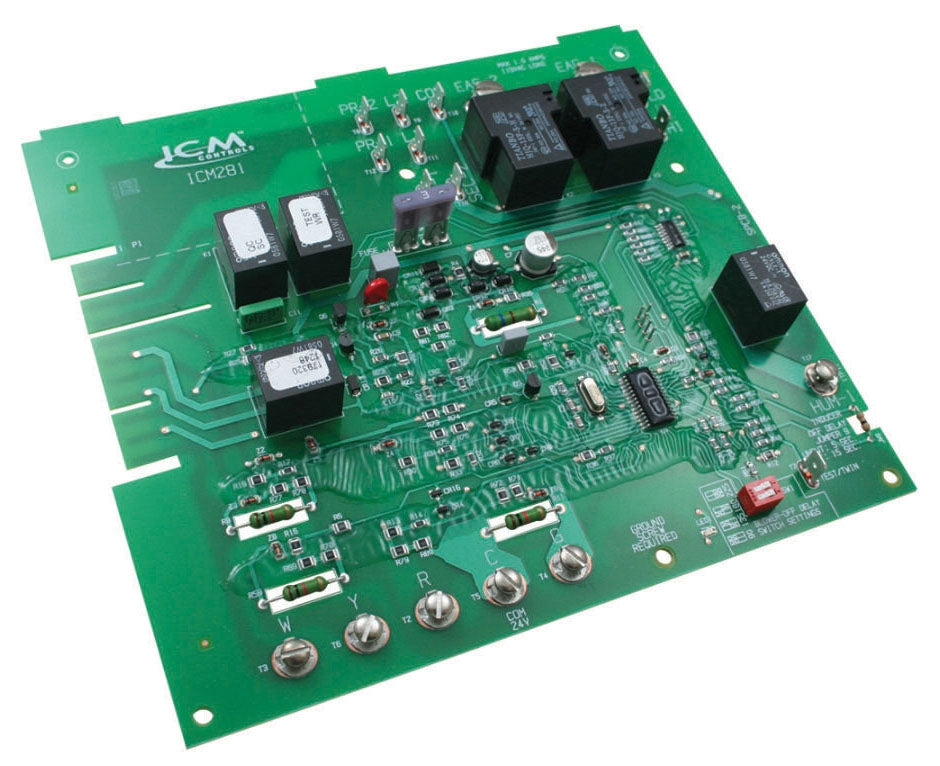

ICM Controls ICM281 Furnace Control Board 98 to 132 VAC at 60 Hz * Final Sale *

Product Description

* Final Sale * No Warranty * No Returns *

ICM Controls ICM281 is a furnace control board designed for use with various furnace models. It operates on a voltage range of 98 to 132 VAC at sixty Hertz. This microprocessor-based control module offers precise functionality for controlling gas valves, igniters, blower motors, and other essential components.

• Voltage Input: 98 to 132 VAC
• Control Type: Microprocessor Based
• Dimensions: 7.625 inches Length x 8.5 inches Width x 0.75 inches Height

Product Highlights

ICM281 provides reliable gas furnace operation with advanced safety features. It includes diagnostic LEDs for troubleshooting and is compatible with standard 24VAC thermostats.

Product Information

Standard Information

• Type: Control Board, Microprocessor Based
• Used On: Gas Furnace

Technical Specifications

• Voltage Rating: 98 to 132 VAC
• Current Rating: 5 Amp at 120 VAC (Igniter), 30 Amp at 240 VAC (Cool Blower), 4 Amp (Full Load)
• Temperature Rating: -40 to 176 degrees F (Operating)
• Humidity Requirement: 5 to 95 Percent RH
• Power Rating: 2 HP (Cool Blower)
