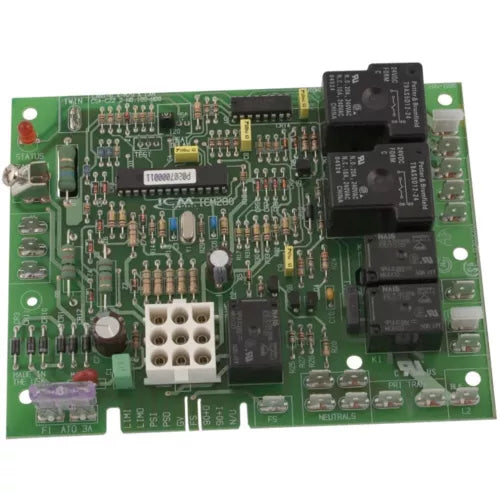

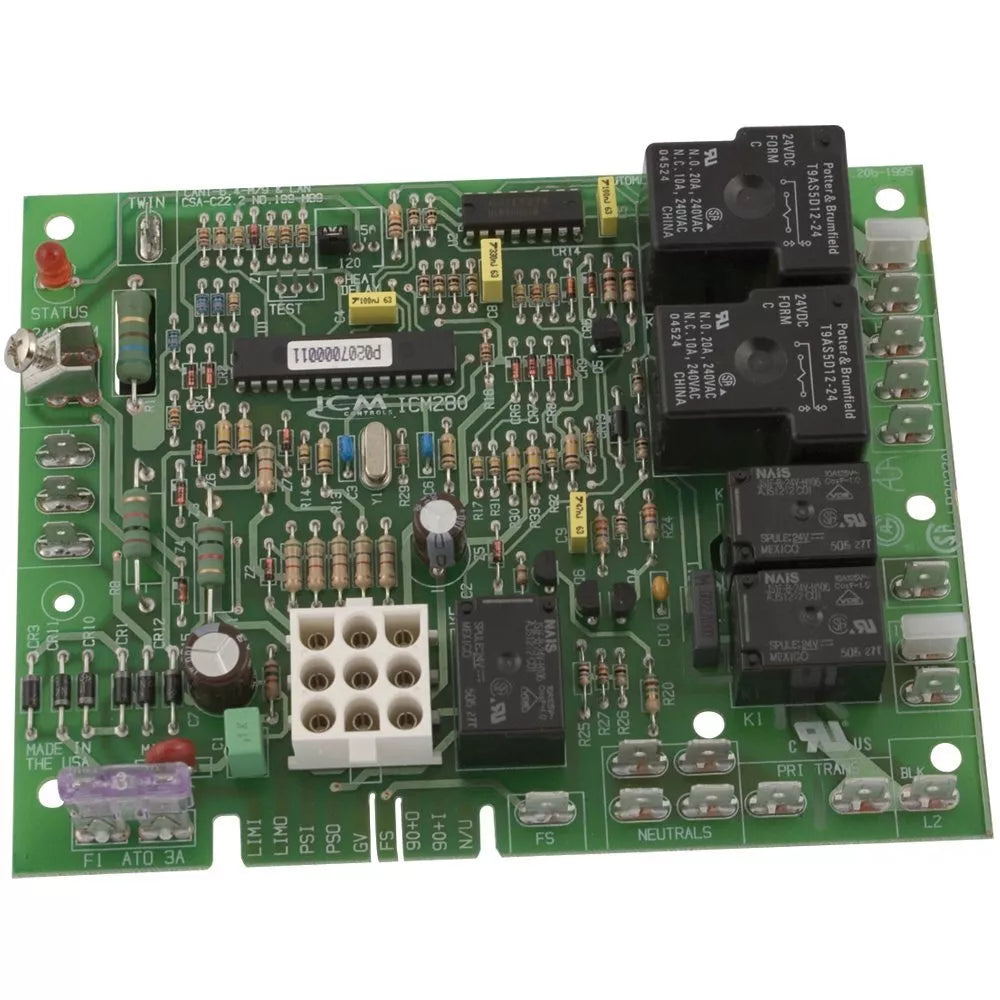

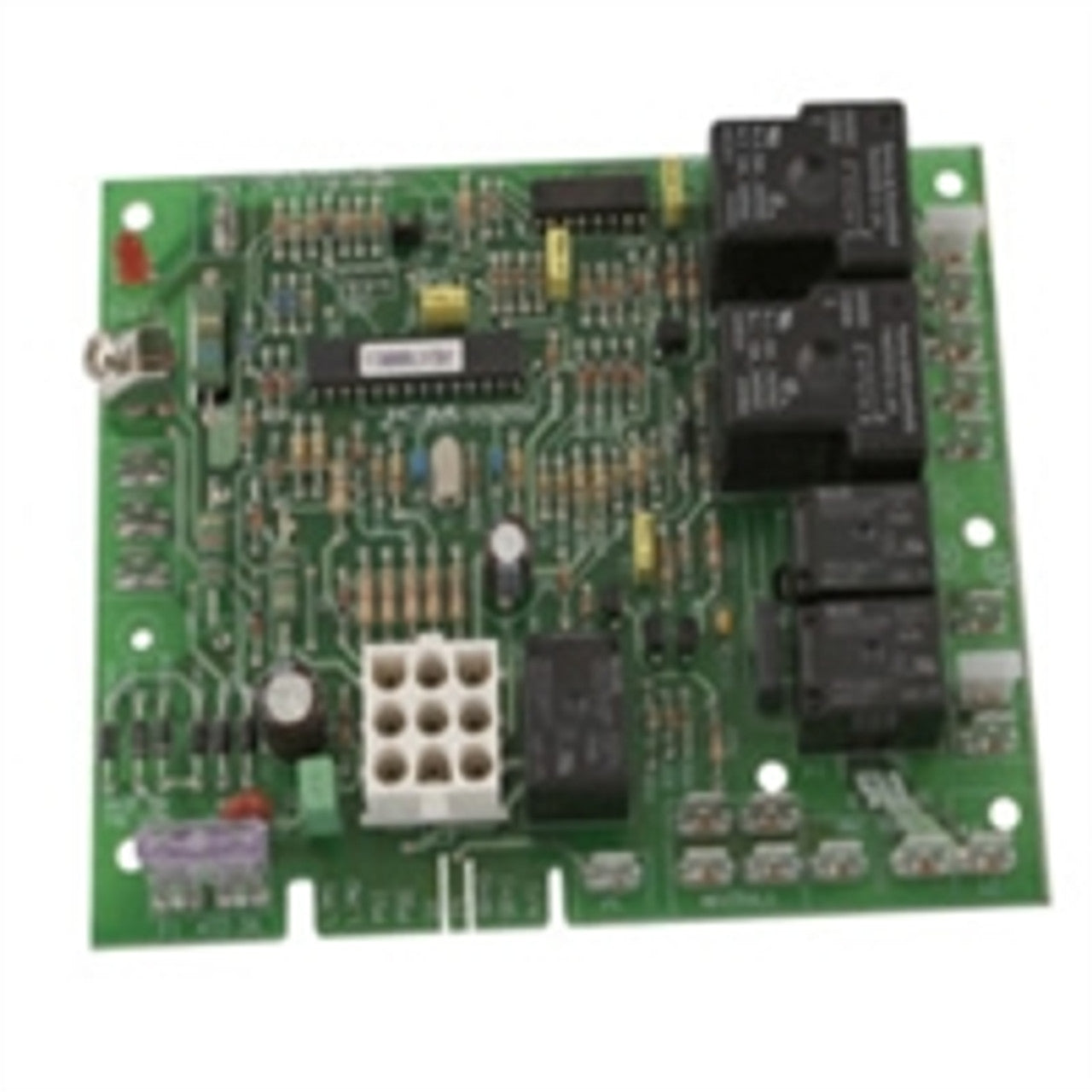

ICM CONTROLS ICM280C Furnace Control Board

Product Description

The ICM CONTROLS ICM280C Furnace Control Board is suitable for replacing Goodman B18099-xx series boards and other compatible OEM models. It effectively manages crucial furnace functions like the gas valve, ignitor, blower motor, and inducer. This control board works with 24 VAC thermostats and includes diagnostic features, indicated by a blinking LED, to assist with troubleshooting.

• Compatible with 24 VAC thermostats.
• Diagnostic fault codes for easy troubleshooting.
• Supports twinning with another ICM280 control board.

Product Highlights

The ICM280C provides essential functionality for furnace systems, ensuring effective operation and easy diagnostics.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM280C

Technical Specifications

• Length: 4.75 inches
• Width: 5.75 inches
• Input Voltage: 98 to 132 VAC
• Ignitor: 5 A at 120 VAC
• Fan: 2 hp at 240 VAC
• Inducer Motor: 7 A at 250 VAC
• Gas Valve: 1 A at 24 VAC
• Height: 1 inch
