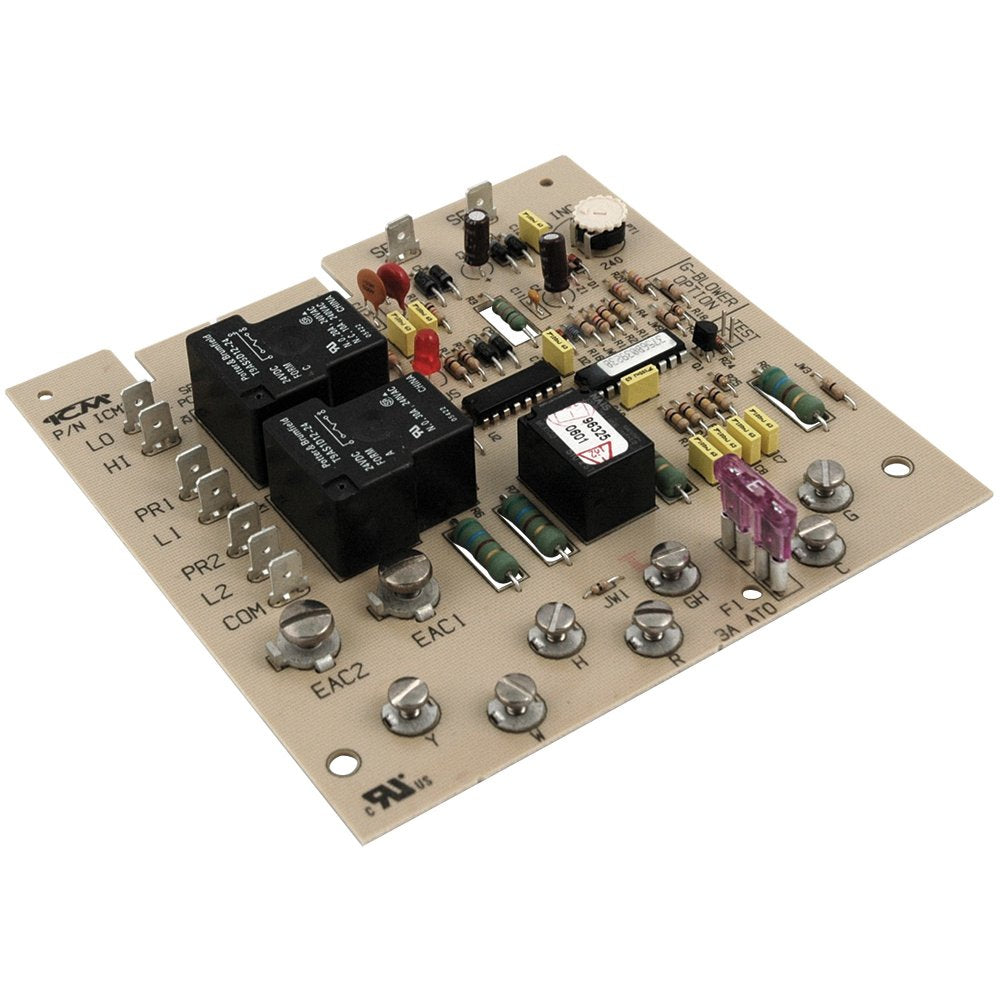

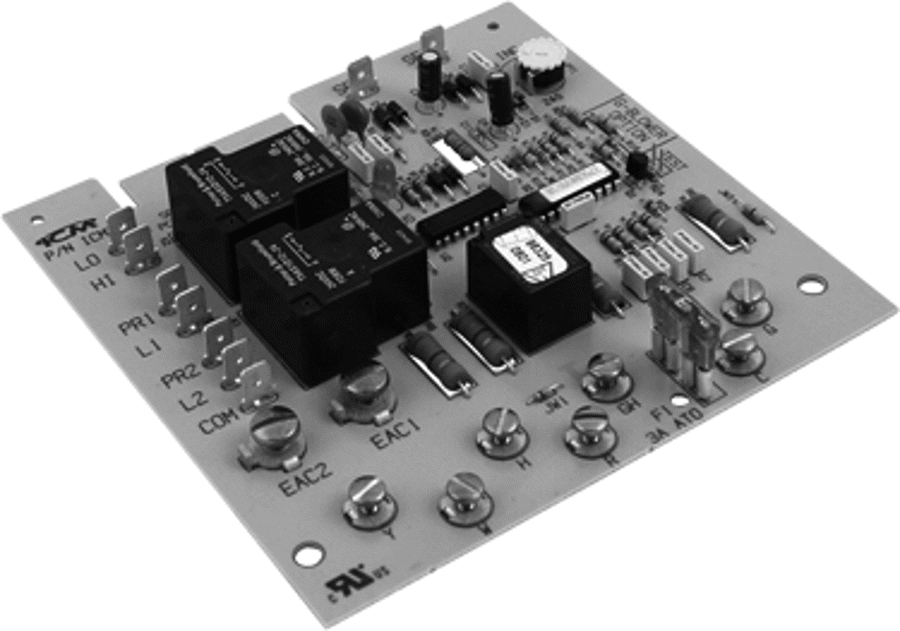

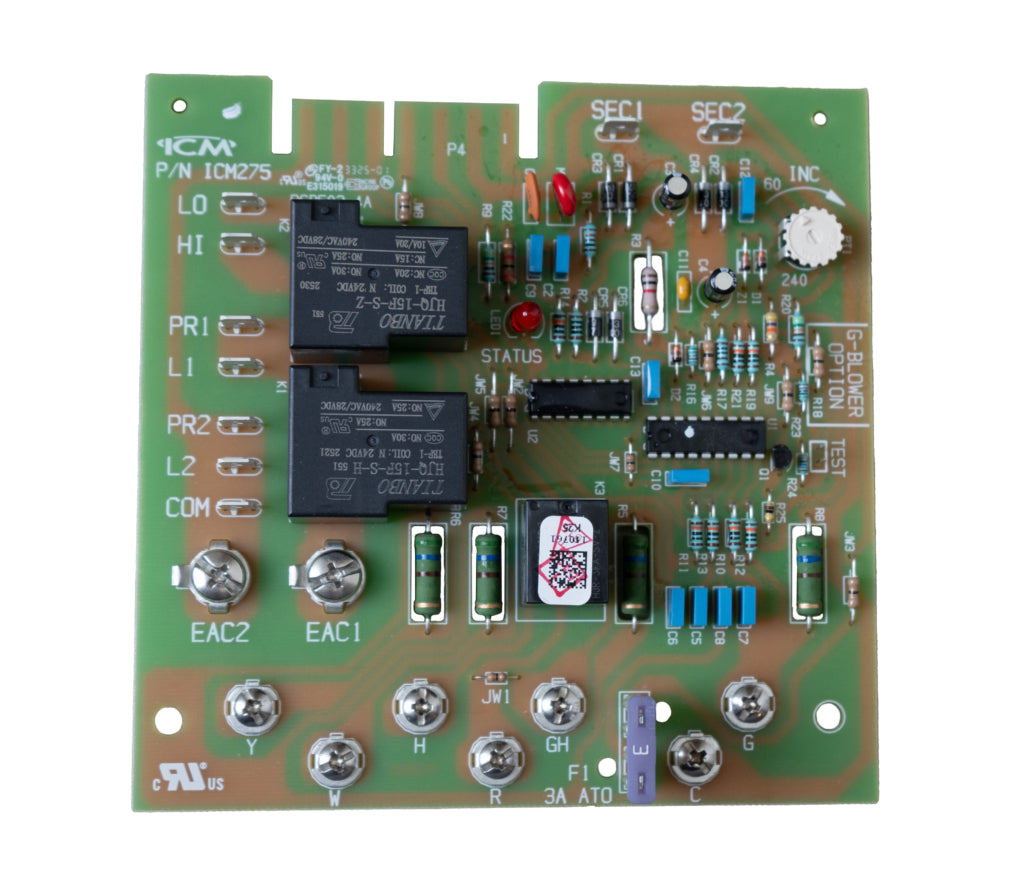

Icm Controls ICM275 Fan Blower Control 16 watts (5.5 x 5.5 x 0.88 inches) Replacement for Carrier CES0110019

Product Description

ICM Controls ICM275 is a fan blower control board designed as a direct replacement for specified OEM units including Carrier CES0110019 and HH84AA-series control boards. The microprocessor-based controller accepts 18-30 VAC input, provides pin-selectable blower delays, and drives heavy-duty relay outputs rated up to 20 amps at 240 VAC. The unit includes fixed and adjustable time delays, duct purge and short-cycle protection. Dimensions 5.5 x 5.5 x 0.88 inches; weight ~4.8 ounces; power draw 16 watts.

• Microprocessor-based control with pin-selectable blower delays and timing functions
• Input 18-30 VAC; relay contact ratings: 20 amps @ 240 VAC (high) and 10 amps @ 240 VAC (low)
• Includes fixed/adjustable time delays, duct purge of residual air, and integral short-cycle protection

Product Highlights

Direct replacement for Carrier CES0110019 and HH84AA-series; heavy-duty relay outputs (20A@240VAC); microprocessor control with selectable delays.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM275
• Country of Origin: United States

Technical Specifications

• Brand: ICM Controls
• Manufacturer: ICM
• MPN: ICM275
• Model: ICM275
• Type: Fan blower control board
• Input Voltage: 18-30 VAC
• Power Consumption: 16 watts
• Contact Ratings: 20 amps @ 240 VAC (high); 10 amps @ 240 VAC (low)
• Time Delays: Heat ON: 60 seconds fixed; Heat OFF: 60-240 seconds adjustable; Cool OFF: 90 seconds fixed
• Cooling Method: Air
• Dimensions: 5.5 x 5.5 x 0.88 inches
• Weight: 4.8 ounces (0.30 lb)
• Features: Microprocessor-based control; heavy-duty heat relay; duct purge; integral short-cycle protection; pin-selectable blower delays
• Replaces: Carrier CES0110019, HH84AA001, HH84AA003, HH84AA005, HH84AA009, HH84AA014, HH84AA015, HH84AA021; Robertshaw 695-101
• Certifications: cRUus E53944
• UPC: 0800442000756
• GTIN: 00800442000756
