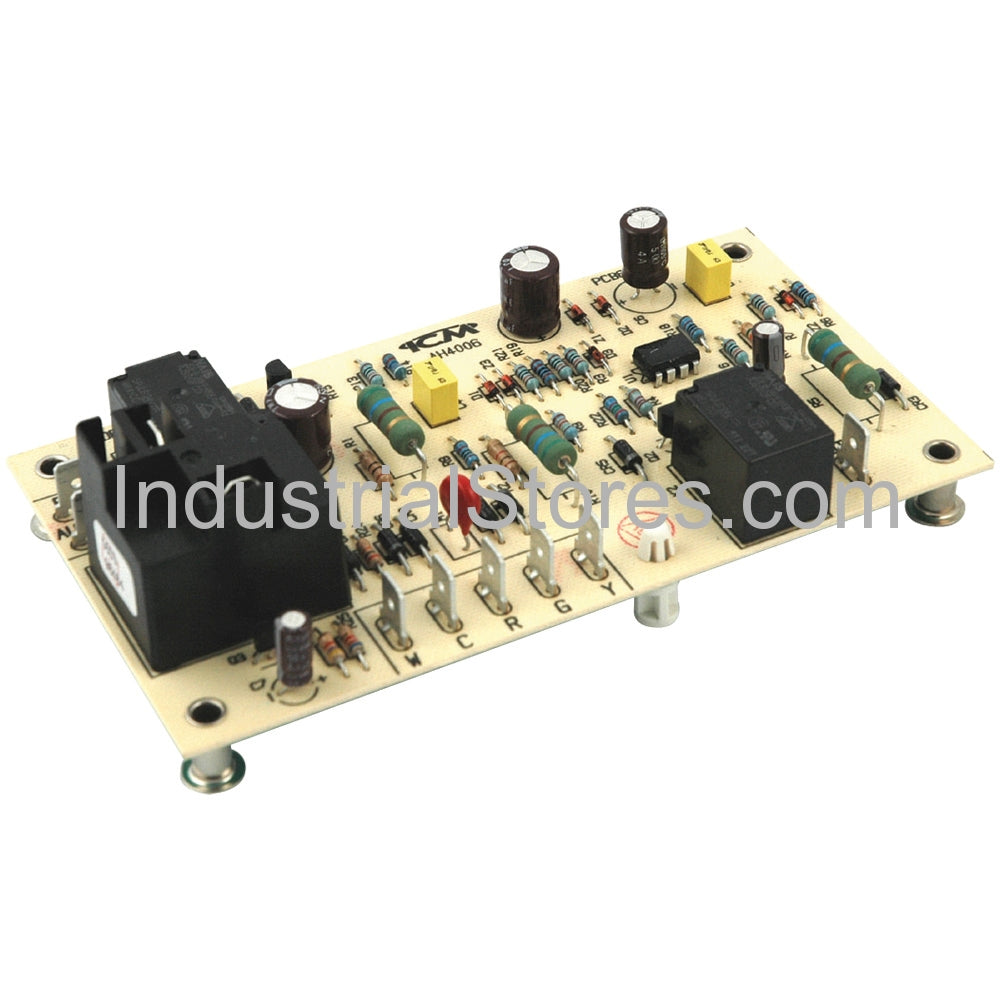

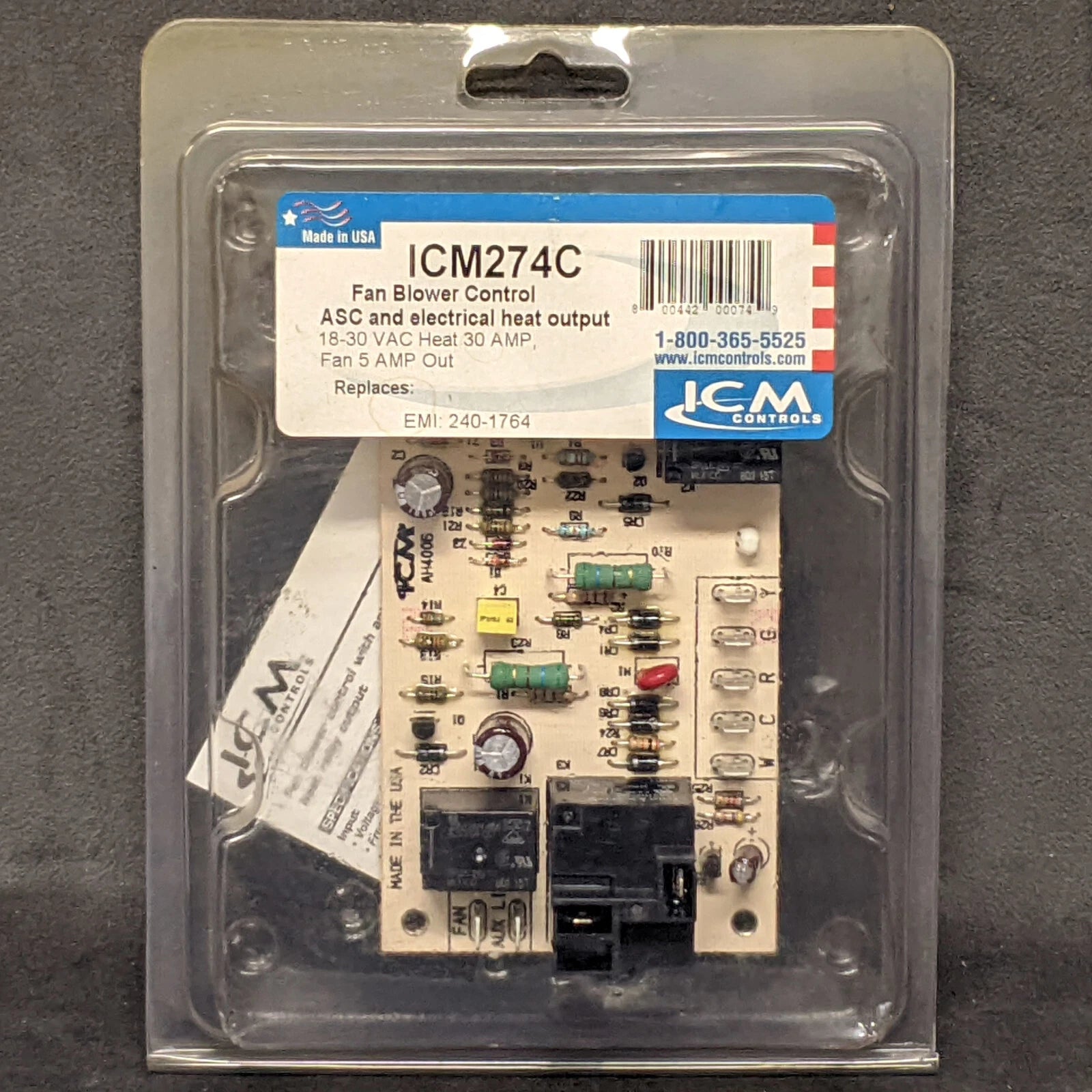

ICM CONTROLS ICM274C Fan Blower Control Board

Product Description

The ICM CONTROLS ICM274C is a fan blower control board suitable for single-phase systems operating at fifty or sixty Hz. This board takes an input voltage between eighteen and thirty VAC and provides control voltage at eighteen to thirty-two VAC. The product uses microprocessor-based control technology for efficient operation of fan blowers and features a built-in humidity relay.

• Accepts input voltage of 18-30 VAC.
• Manual adjustment for post-purge off delay from sixty to two hundred forty seconds.
• Outputs for electronic air cleaner and supports electric heat relay.

Product Highlights

This fan blower control board ensures reliable performance and includes a preset blower off delay of sixty seconds.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM274C

Technical Specifications

• Voltage: 18/32 VAC
• Input Voltage: 18-30 VAC
• Fan Output: 2 amps
• Y Out: 1.5 amps
• Electric Heat Relay: 30 amps at 240 VAC
• Blower OFF Delay: 60 seconds
• Dimensions: 5.5 inches (Length) x 1.5 inches (Width) x 3 inches (Height)
• Weight: 0.3 pounds
