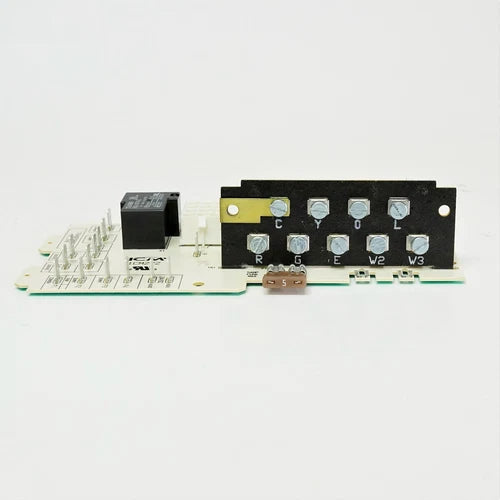

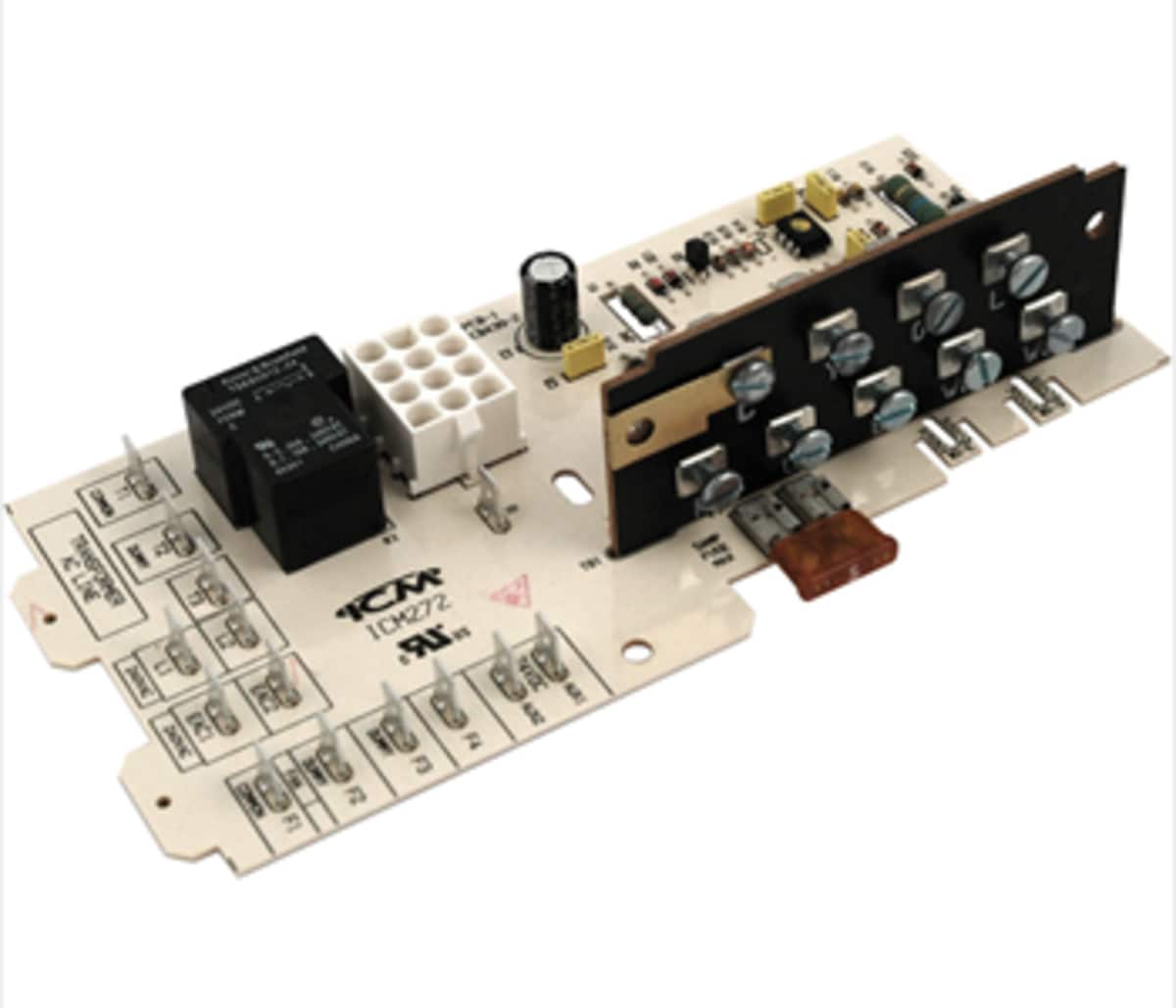

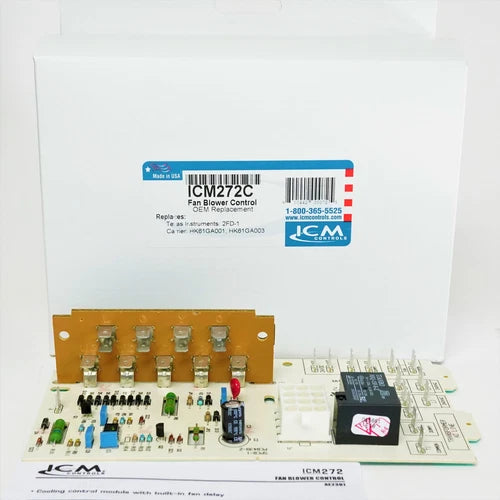

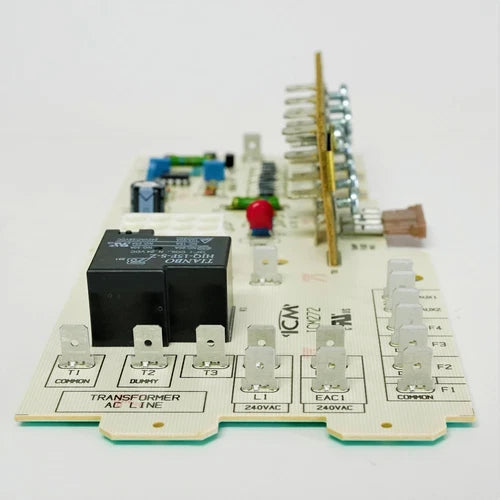

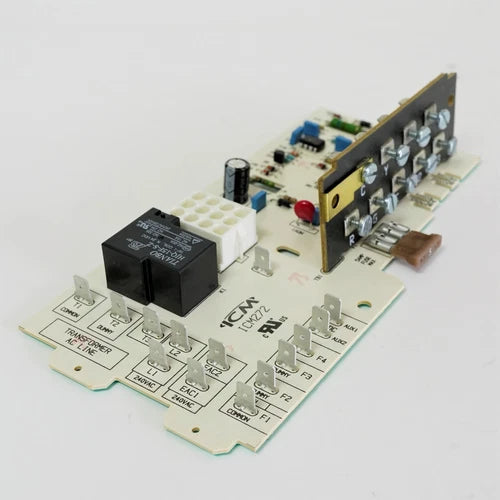

ICM Controls ICM272C Furnace Fan Blower Control Board

Product Description

The ICM Controls ICM272C is a fan blower control board for furnace applications. It operates within an input voltage range of eighteen to thirty VAC. This control unit has a fixed time delay of ninety seconds. Its output current is rated at twenty Amps normally open and ten Amps normally closed. The board is suitable for Carrier and ICM Controls central furnaces and meets Underwriters Laboratories (UL) standards for both Canada and the United States.

• Functions as a furnace fan blower control.
• Features a built-in fan delay.
• Approved by UL for use in Canada and the US.

Product Highlights

This control board is essential for effective furnace operation.

Product Information

Standard Information

• Brand: ICM Controls
• Product Type: Control

Technical Specifications

• Type: Fan Blower Control
• Voltage Rating: 18 to 30 VAC (Input)
• Current Rating: 20 Amp NO, 10 Amp NC (Output)
• Time Delay: 90 Second Fixed
• Approval: UL (Canada and US)
• Material: Plastic
• Item Length: 11.1 inches
• Width: 8 inches
• Height: 3.75 inches
• Item Weight: 0.45 lb
• Compatible Brand: For Carrier, For ICM Controls
