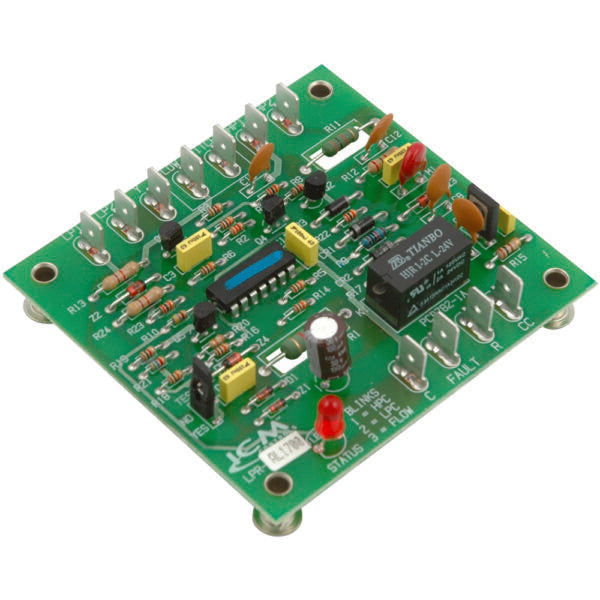

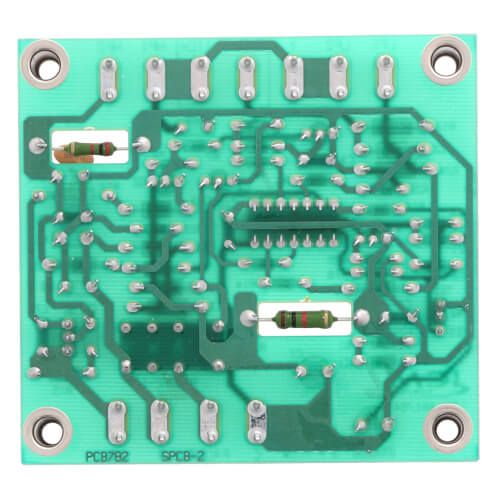

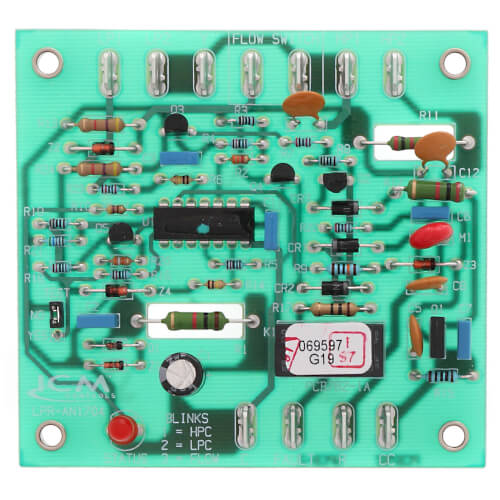

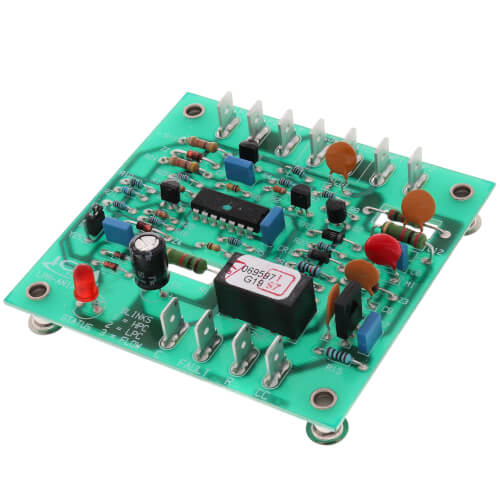

ICM Controls ICM222 Lockout Protection Module 18-30 VAC

Product Description

The ICM CONTROLS ICM222 is a lockout protection module designed to monitor switch inputs and protect your compressor effectively. This module functions within a voltage range of eighteen to thirty VAC and operates at a frequency of fifty to sixty Hertz. It includes features such as anti-short cycle control and monitoring for pressure and flow switches. The device also offers an alarm output during lockout conditions, ensuring that you are notified of any issues. The module incorporates a five-minute anti-short cycle delay and a five-second test mode for easy troubleshooting.

• Low-cost lockout protection module
• Anti-short cycle/lockout control
• Pressure/flow switch monitoring

Product Highlights

The ICM222 protects your HVAC systems by preventing compressor damage through effective monitoring and control.

Product Information

Standard Information

• Product Type: Lockout Protection Module
• Voltage: 18/30 VAC

Technical Specifications

• Frequency: 50-60 Hz
• Output Type (CC): Solid state (Triac)
• Output Rating (CC): 1 amp @ 30 VAC
• Output Type (Fault): Relay (SPDT) N.O
• Output Rating (Fault): 1 amp @ 30 VAC
• Anti-Short Cycle Time (Fixed): 5 Minutes +/-20% (5 second test mode)
• Part #: ICM222
