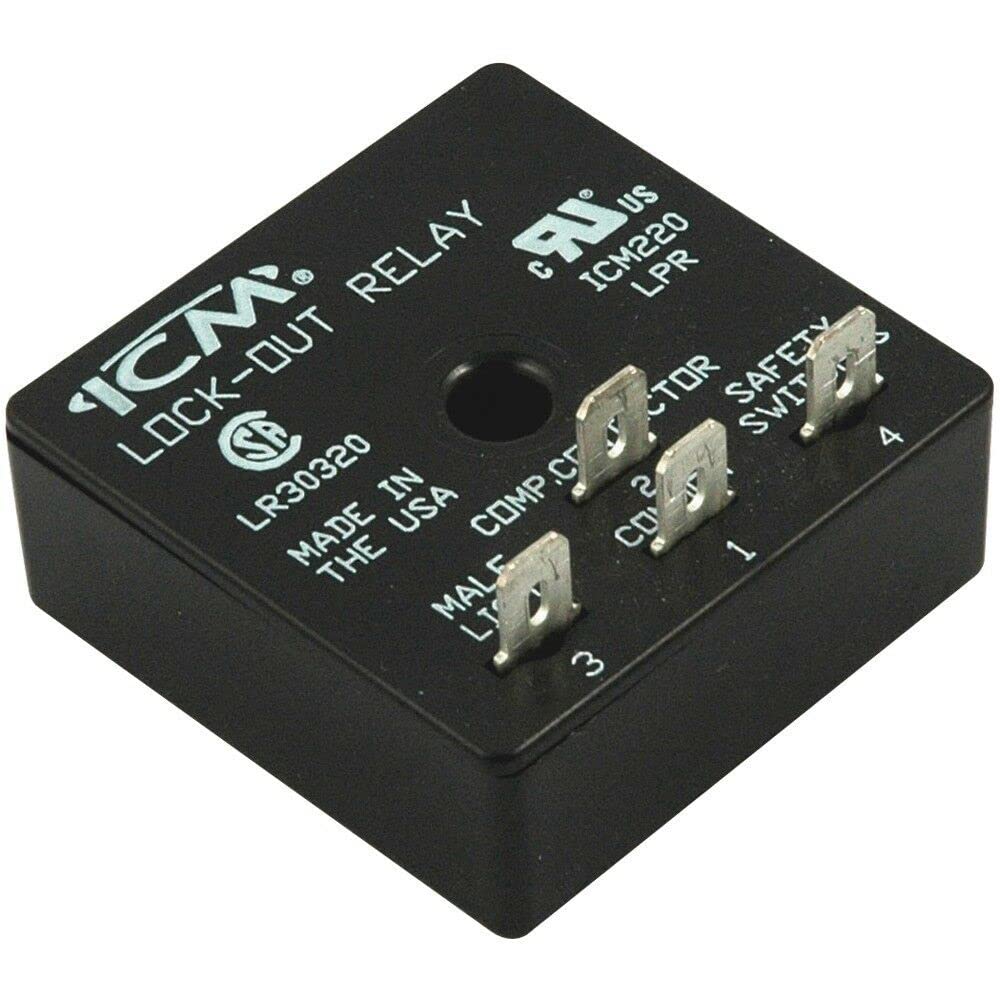

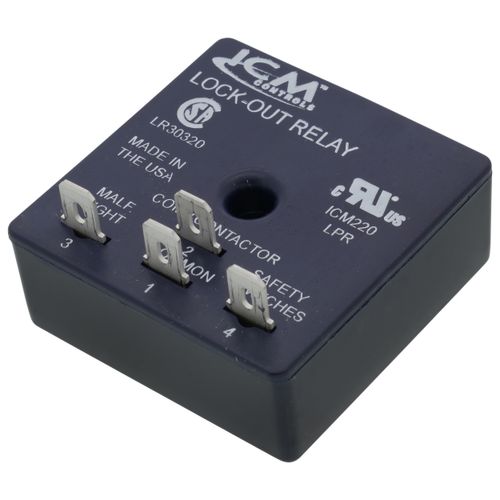

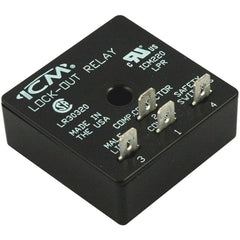

Icm Controls icm220b lockout relay 18-30v spdt

Product Description

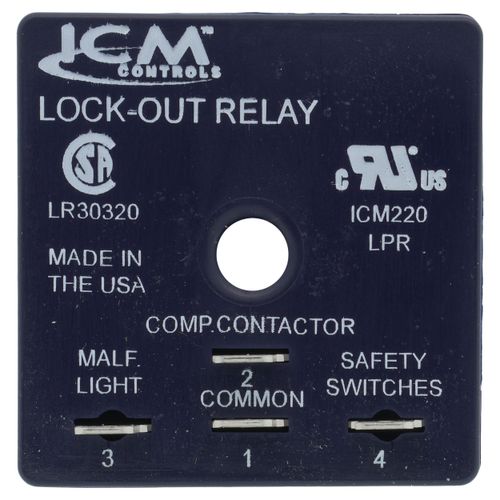

The ICM Controls ICM220B is an 18-30V Lockout Relay designed to protect compressors by monitoring safety switch inputs. This lockout protection module ensures that if safety switches open for over 600 ms, the load de-energizes and a fault light activates. To re-energize, power must be removed for 100 ms and safety switches closed, resetting the fault. It operates on 18-30 VAC at 50-60 Hz.

• UL 873 recognized as a compressor controller.
• Helps eliminate nuisance lockouts common with Series 84 and 93 impedance relays.
• Ideal for use with safety and interlock switches.

Product Highlights

Monitors safety switch inputs to protect compressors and eliminate nuisance lockouts.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM220B

Technical Specifications

• Manufacturer: ICM Controls
• Brand: ICM
• MPN: ICM220B
• Input Voltage: 18-30V
• Relay Type: Lockout
• Product Type: Lockout Protection Module
• Contact Configuration: SPDT
• Frequency: 50-60 Hz
• Power Consumption: 2 Watts Max @ Lockout
• Contact Rating: 2 amps @ 30 VAC resistive
