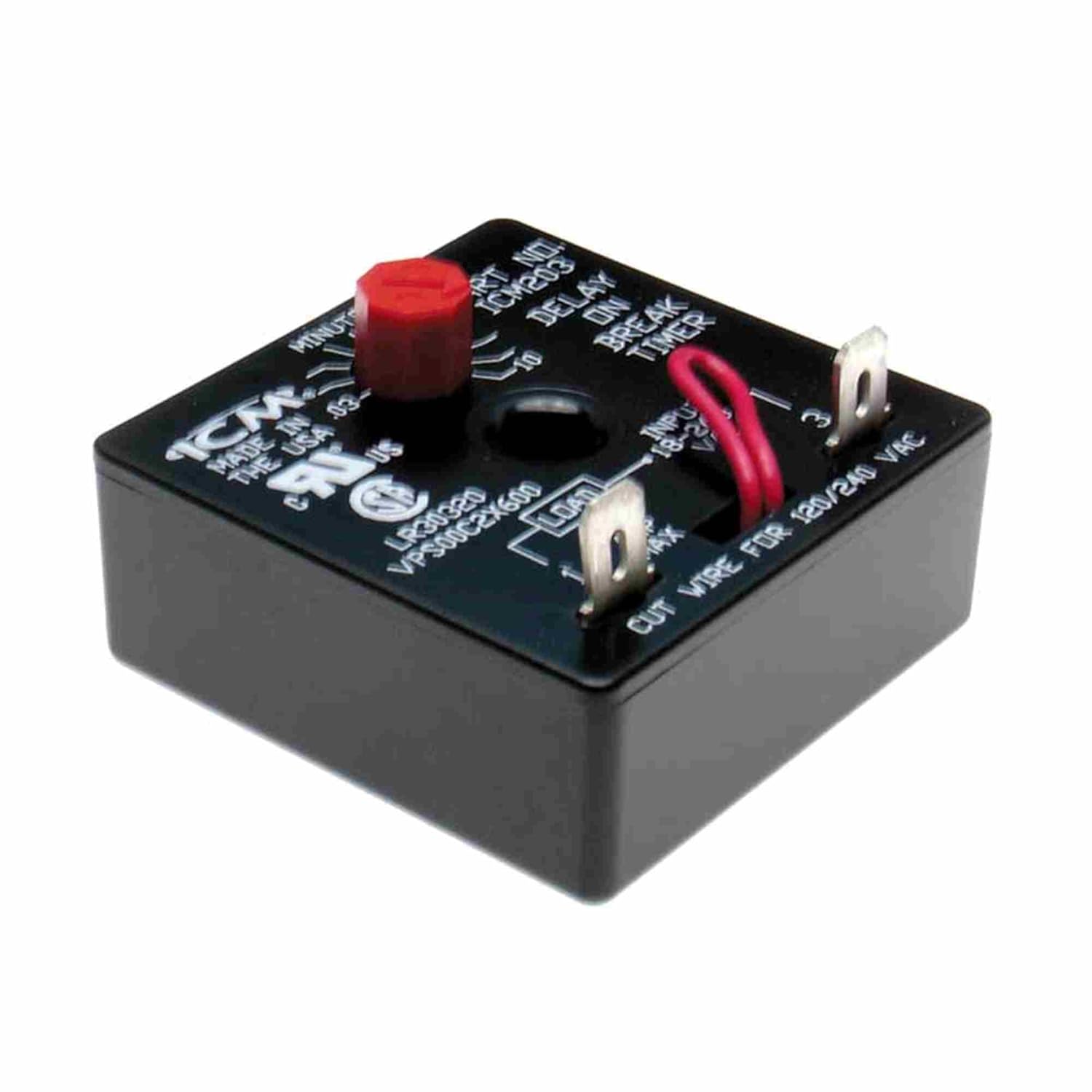

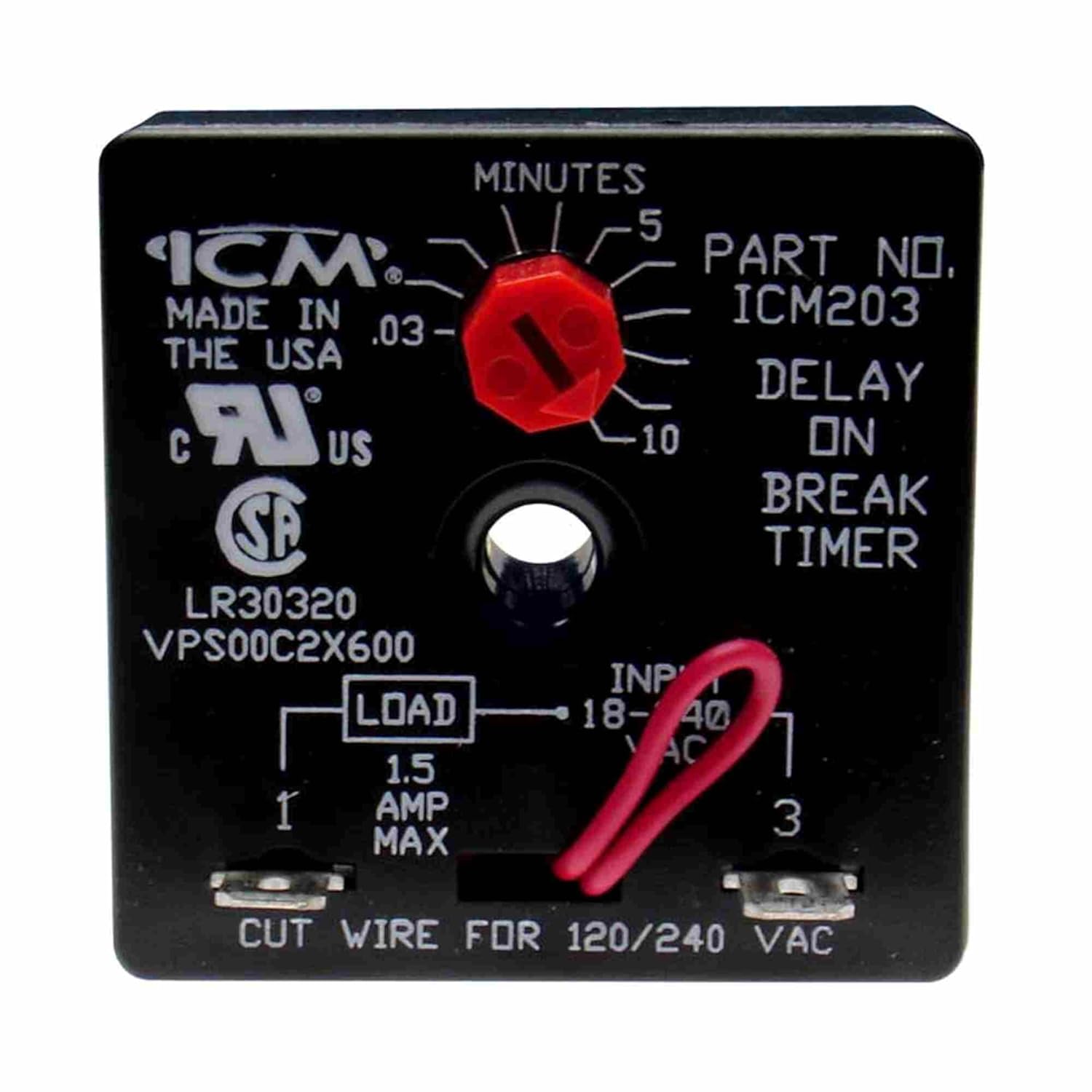

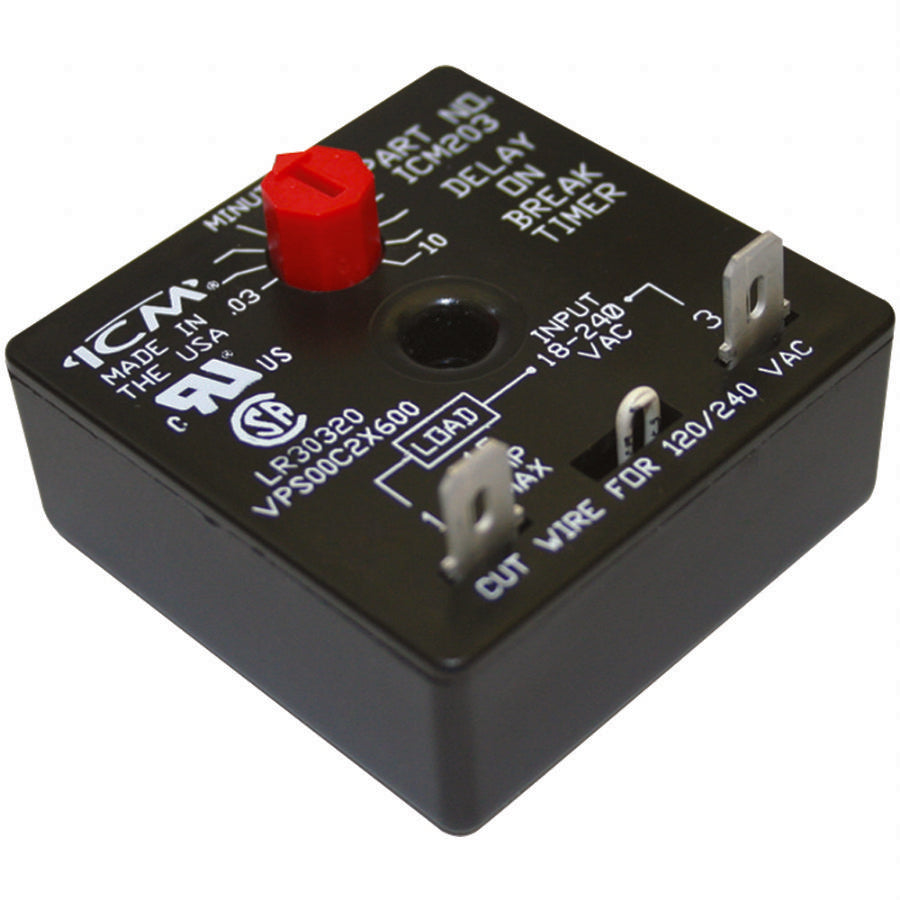

Icm Controls ICM203 Delay on Break Timer 18-240 Vac 1.25 inches Height, 2 inches Width 2 inches Length ICM203B

Product Description

The ICM Controls ICM203 is a delay on break timer designed to operate within a voltage range of 18-240 Vac. This compact unit, measuring 1.25 inches in height, 2 inches in width, and 2 inches in length, prevents damage from rapid short cycling in HVAC and refrigeration applications. Upon power application, the load is energized, and a delay period begins when the thermostat opens or power is lost, protecting compressors.

• Delay on break timer functionality for controlled system operation.
• Operates on a wide voltage range of 18-240 Vac for versatile applications.
• Protects compressors from damage caused by rapid short cycling.

Product Highlights

Prevents rapid short cycling damage with adjustable delay from 1.8 to 600 seconds for flexible system control.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: ICM203
• Country of Origin: United States

Technical Specifications

• Manufacturer: ICM Controls
• Brand: ICM Controls
• Model Number: ICM203
• National Stock Number: 6645-01-522-7447
• Input Voltage: 18-240 Vac
• Input Frequency: 5-60 Hz
• Output Maximum Rating: 1.5 amp
• Output Minimum Rating: 40mA
• Output Inrush: 15 amp in-rush
• Time Delay: 0.03-10 minutes (1.8-600 seconds)
• Unit Count: 1 Count
• Included Components: Control
• Number of Settings: 1
• Alternative Model Number: ICM203B
