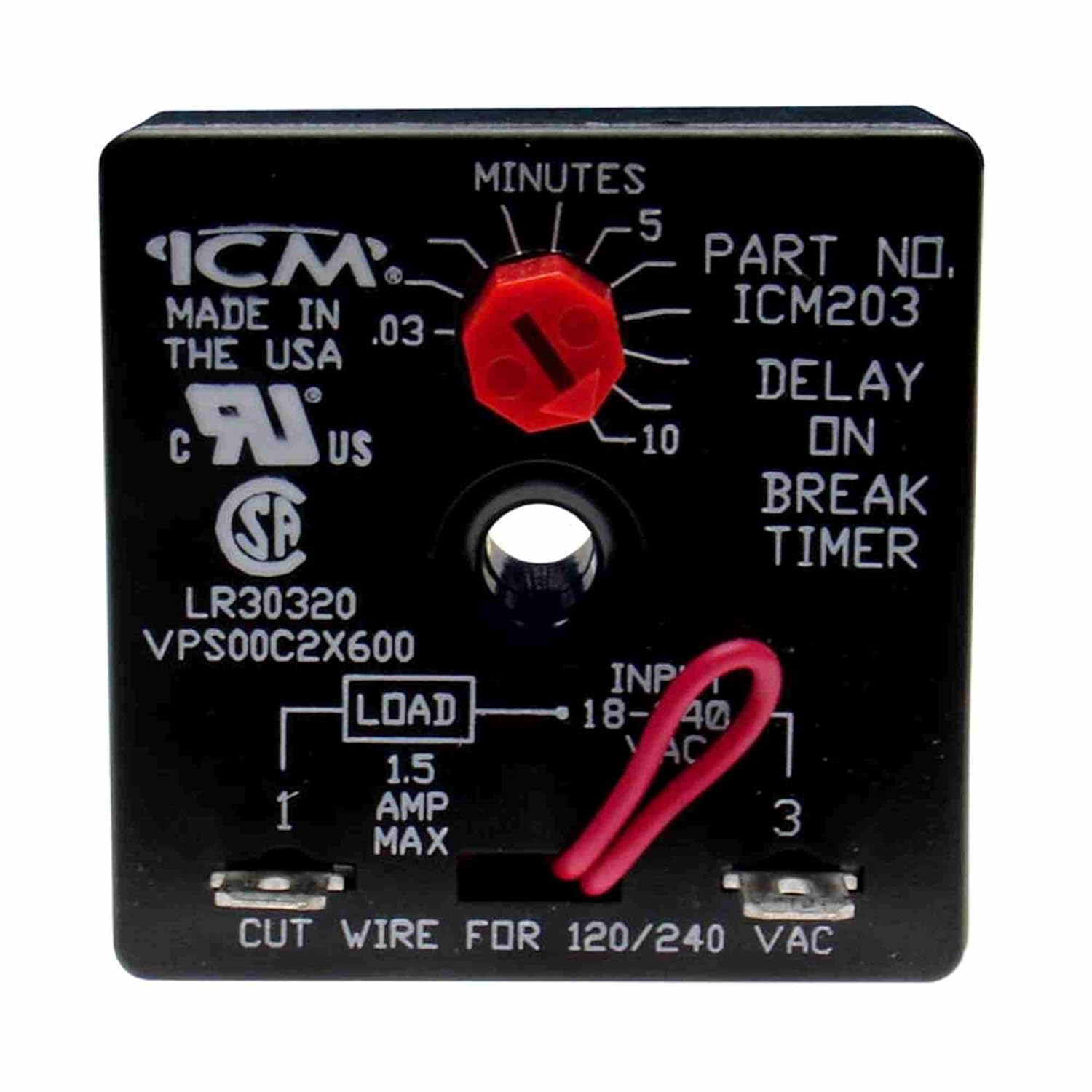

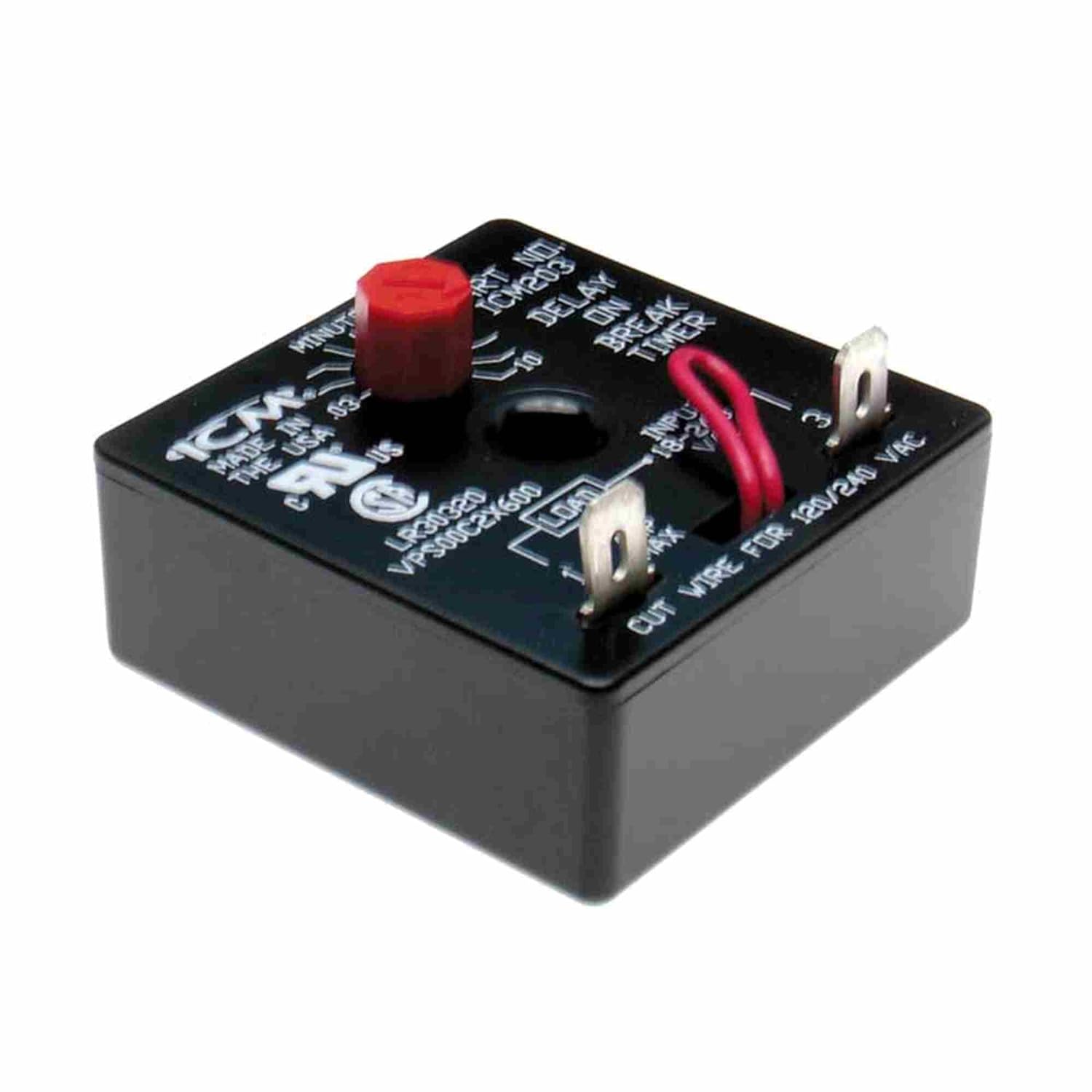

ICM Controls ICM203 Delay on Break Timer 18-240 Vac 1.25 Height 2 Width 2 Length

Product Description

The ICM Controls ICM203 Delay on Break Timer is designed to enhance control systems in HVAC applications. The timer operates at a voltage range of eighteen to two hundred forty volts alternating current (Vac). It features adjustable delay timing that spans from one point eight seconds to six hundred seconds, making it suitable for various control needs.

• Voltage range: 18-240 Vac
• Adjustable delay time: 1.8 to 600 seconds
• Compact design: 2 inches by 2 inches by 1.25 inches

Product Highlights

This timer provides reliable performance in preventing short cycling of HVAC systems. It ensures proper operation and enhances system efficiency.

Product Information

Standard Information

• Brand: ICM Controls
• MPN: ICM203

Technical Specifications

• Control Type: Delay on Break
• Voltage Rating: 18 to 240 Vac
• Contact Rating: 1.5 Amperes
• Frequency Rating: 50/60 Hz
• Delay Range: Adjustable from 1.8 to 600 seconds
• Mounting Type: Single Hole Mount
• Dimensions: 2 inches L x 2 inches W x 1.25 inches H
