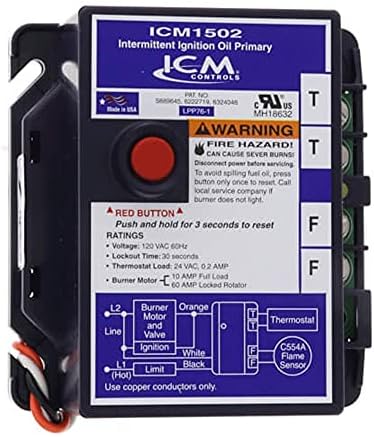

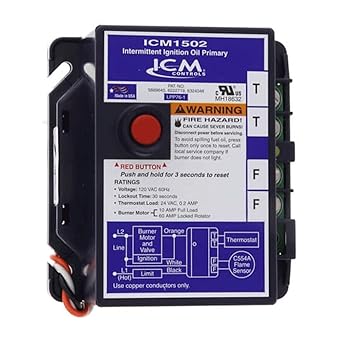

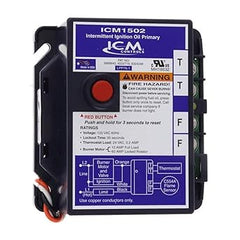

Icm Controls ICM1502 intermittent ignition oil primary control 30 seconds safety timing replacement for R8184G Series Honeywell

Product Description

The ICM Controls ICM1502 is an intermittent ignition oil primary control, designed as a replacement for the Honeywell R8184G Series. This 24 Volts control unit manages the oil burner, oil valve, and ignition transformer in response to a call for heat. It features a solid-state flame sensing circuit and an LED indicator for system lockout. With 30-second safety timing, it ensures safe operation for oil-fired burners, boilers, and furnaces.

• Controls oil burner, oil valve, and ignition transformer in response to a call for heat
• Features a solid-state flame sensing circuit
• LED on terminal strip indicates system lockout

Product Highlights

Enclosed safety switch with external reset button; mounts on a standard 4x4 J-Box.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 1502

Technical Specifications

• Operating Voltage: 24 Volts
• Connector Type: Screw
• Terminal: Screw
• Mounting Type: Panel Mount
• Control Type: Intermittent
• Compatible Devices: Oil-fired burners, boilers, forced air furnaces, water heaters, other oil burning appliances, 24 VAC thermostats
• International Protection Rating: IP54
• Brand: ICM Controls
• Model: ICM1502
• Manufacturer: ICM
• Part Number: ICM1502
• Included Components: Control
• Contact Material: Copper
