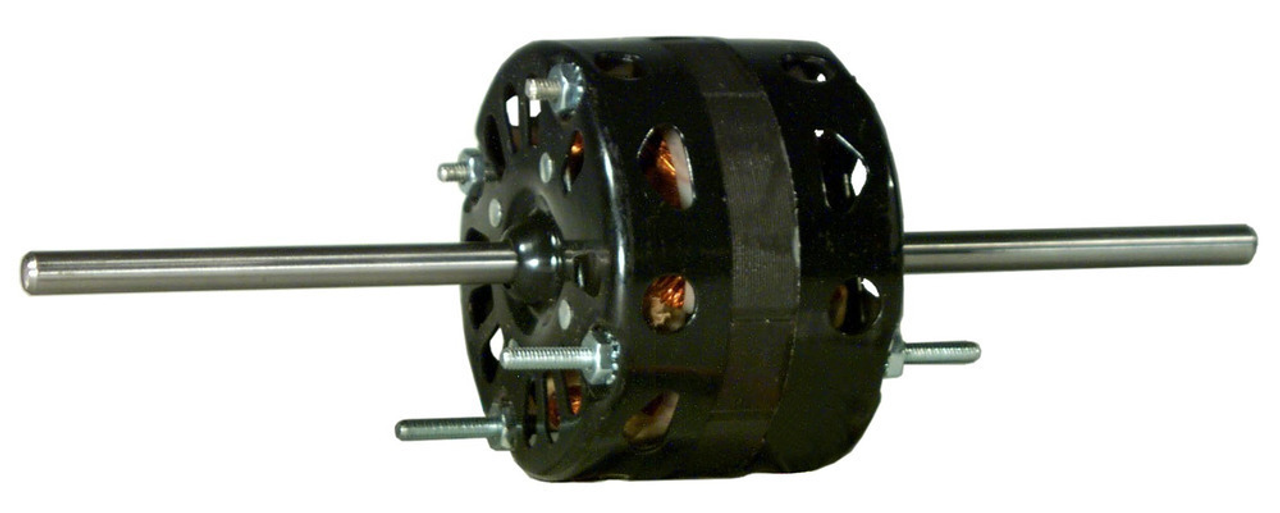

ICM Controls HM-R489 Wood Stove Blower Motor

Product Description

The ICM Controls HM-R489 is a wood stove blower motor that operates at one-fifth horsepower and is designed for effective performance. This motor runs on one hundred fifteen volts at one amp and features a shaded pole design. It has a clockwise rotation with a rated speed of three hundred RPM. The body measures two and a half inches while the frame is three point three inches. The shaft dimensions are three point six inches by five sixteenths inches by three and a half inches, making it compatible with most standard wood stove applications.

• One-fifth horsepower motor
• Operates at one hundred fifteen volts
• Designed for clockwise rotation

Product Highlights

Ideal for improving air circulation in wood stoves, enhancing heating efficiency.

Product Information

Standard Information

• Power: 1/5 hp
• Voltage: 115v

Technical Specifications

• Amperage: 1.0 amp
• Rotation Type: CW
• Body Size: 2.5 inches
• Frame Size: 3.3 inches
• Shaft Dimensions: 3.6 in x 5/16 in x 3.5 in
• Speed: 1300 RPM
