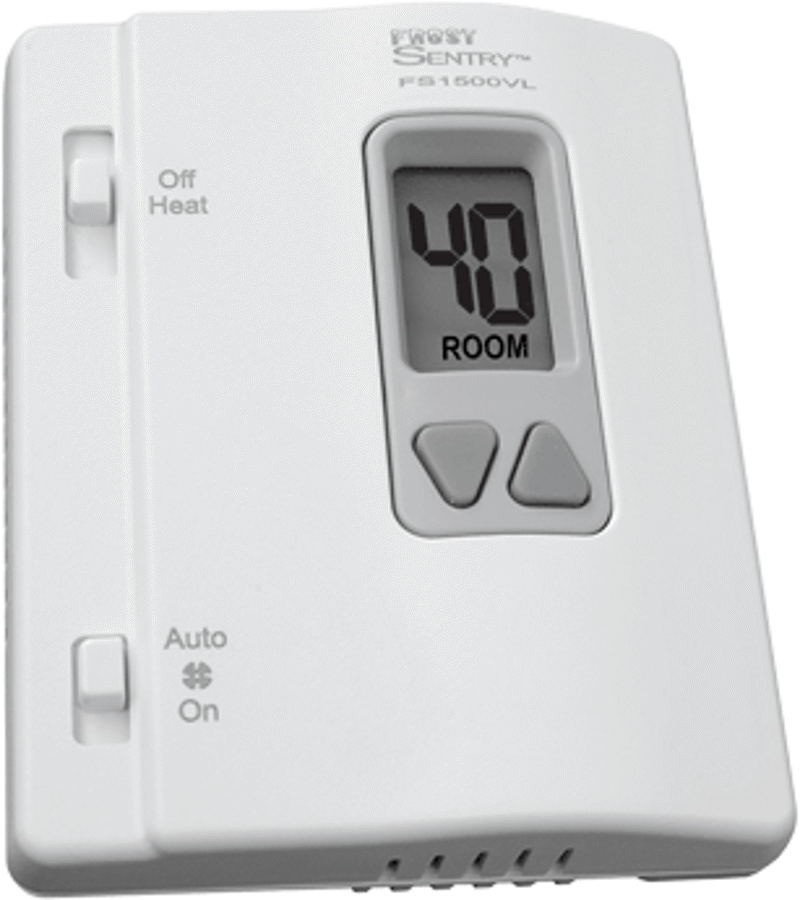

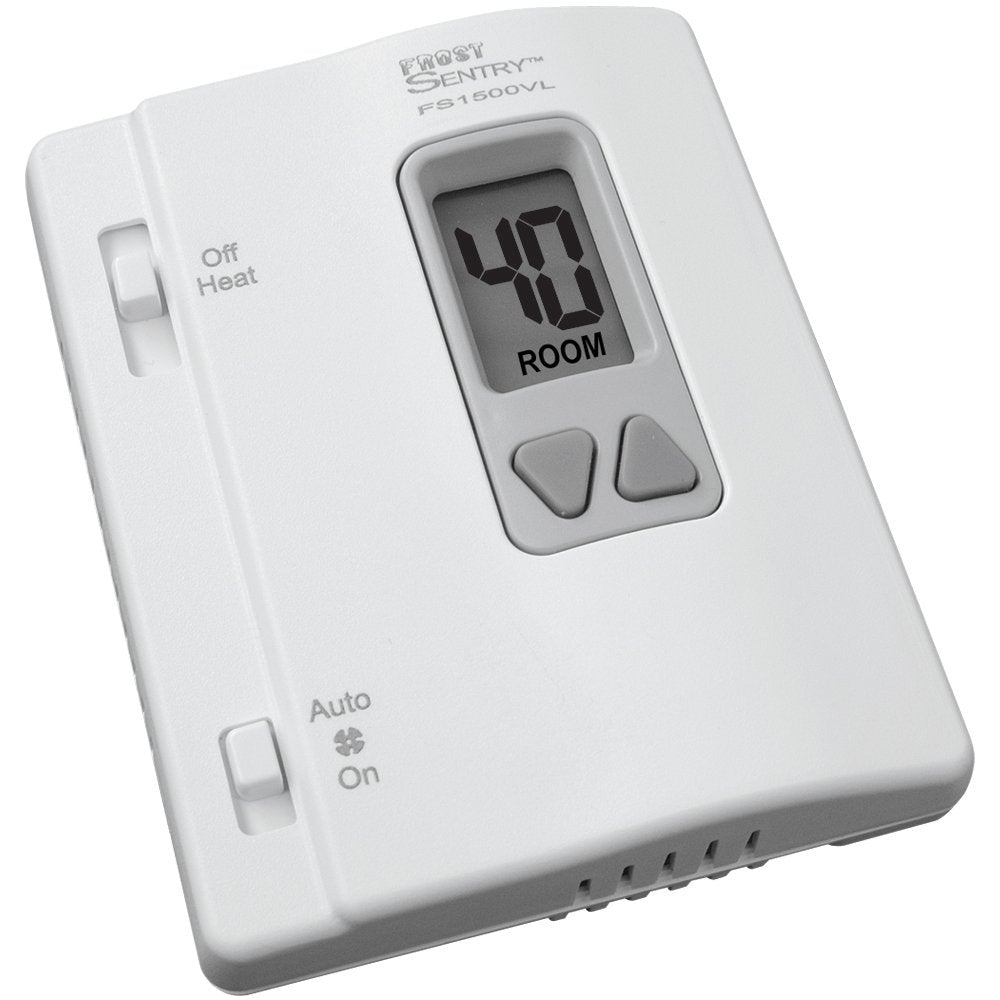

Icm Controls fs1500vl garage thermostat low voltage vertical

Product Description

The ICM CONTROLS FS1500VL is a low voltage thermostat designed for single-stage heating systems. This battery-operated unit features a digital display and remote sensing capability. It maintains temperatures within a range of 35°F to 75°F, providing freeze protection for spaces like garages, storage areas, and workshops. Its vertical design allows for easy installation and compatibility with various heating setups.

• Low Voltage Thermostat
• 1 Stage Heat
• Digital Display

Product Highlights

This thermostat provides freeze protection for critical areas, compatible with single-stage heating systems including millivolt, hydronic, gas, and electric.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: FS1500VL
• Country of Origin: United States

Technical Specifications

• MPN: FS1500VL
• SKU: fs1500vl
• Product ID: 8863b060-4482-49c6-93cc-ac14014a7b70
• Brand: ICM Controls
• Series: Spring Stocking
• Unit of Measure: EA
• Category 1: Residential HVAC
• Category 2: Thermostats & Zoning
• Category 3: Thermostats
• Quantity per Unit of Measure: 1
• Type: Low Voltage Thermostat
• Stages Heat: 1
• Stages Cool: None
• Terminal Designations: R, W, G, S1, S2
• System Switching: Heat-Off
• Fan Switching: Auto-On
• Display: Digital
• Key Pad Lockout: No
• Programmable Fan: No
• Automatic Changeover: No
• Humidification Control: No
• Dehumidification Control: No
• Remote Sensing Capability: Yes
• Temporary Program Override: No
• Temporary Temperature Hold: No
• Filter Indicator: No
• Temperature Limiting: No
• Battery Backup: No
• Low Battery Indicator: No
• Batteries Included: Yes
• Temperature Range: 35F-75F
• Heating Type: Heat Only
• Mounting: Vertical
• Current Rating: 2 A
• Application: Heating
• Input Voltage: 24 VAC (18/30 VAC)
• Accuracy: +/- 1°F
• Power Method: Battery
