Icm Controls FS1500L Garage Stat 18 VAC - 30 VAC 35 Degree - 75 Degree Heat Only

Product Description

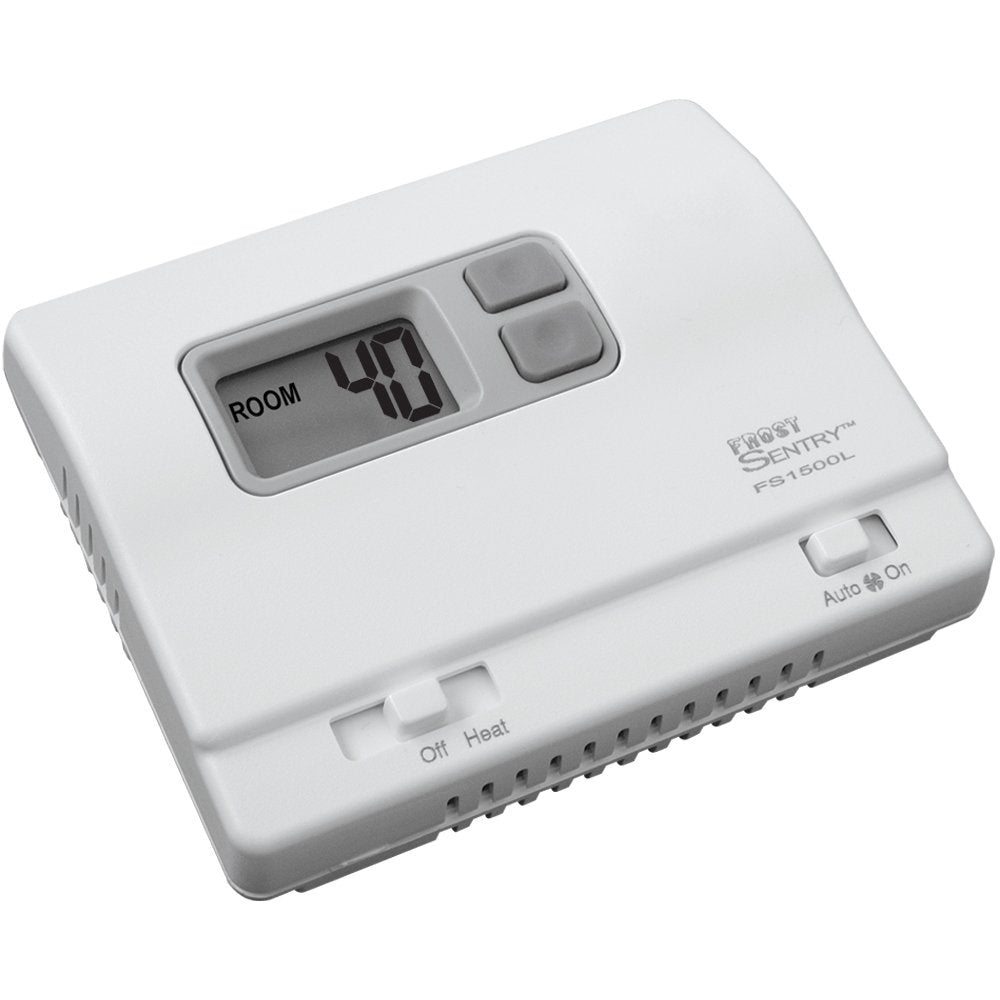

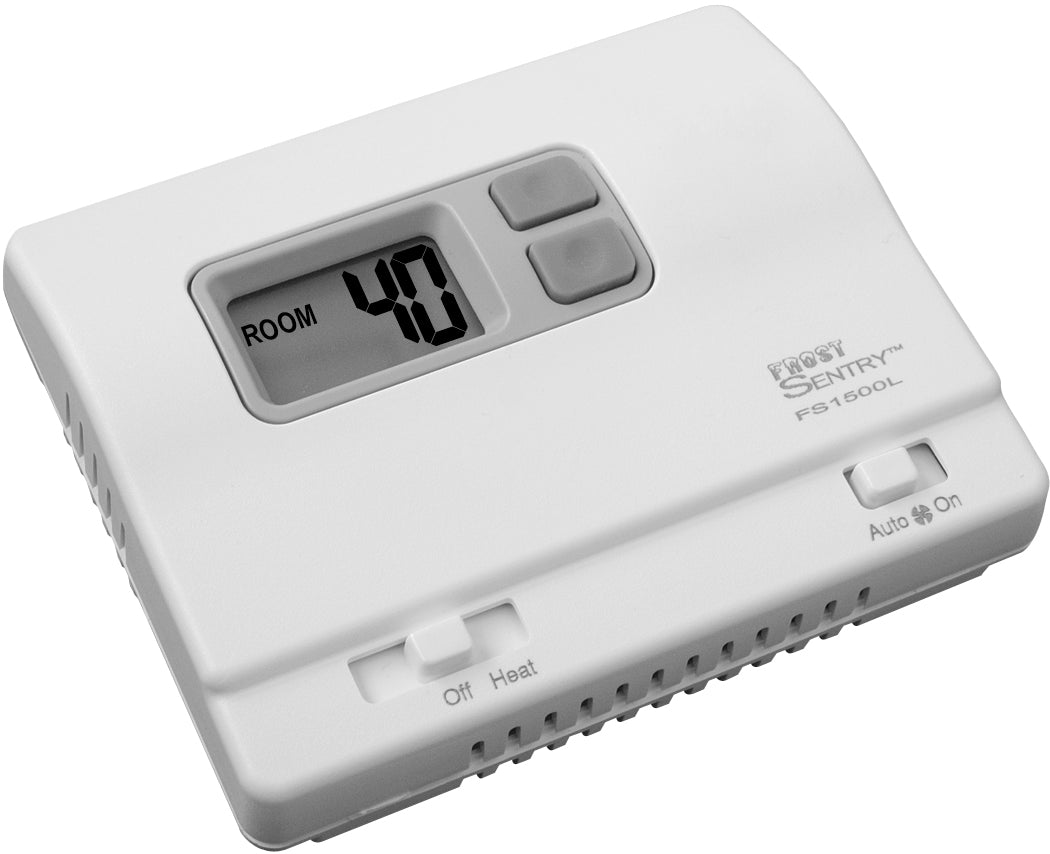

The ICM CONTROLS FS1500L Garage Stat is a thermostat designed for heating-only applications. It operates within a temperature range of 35°F to 75°F and is battery-operated. This single-stage thermostat is compatible with millivolt, hydronic, gas, and electric heating systems. It features a backlit display and is mercury-free.

• Heat Only operation with a temperature range of 35°F to 75°F
• Battery powered and remote compatible (ACC-RT104)
• Compatible with single-stage heating systems, including millivolt, hydronic, gas, and electric

Product Highlights

Designed for garage and storage areas, this thermostat offers heat-only control from 35°F to 75°F, is battery-operated, and features a backlit display.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: FS1500L
• Country of Origin: United States

Technical Specifications

• Brand: ICM Controls
• Manufacturer: ICM
• Model Number: FS1500L
• MPN: FS1500L
• Temperature Range: 35°F to 75°F
• Input Voltage: Millivolt to 30 VAC/VDC
• Power Source: Battery (3.0 VDC, 2 AA alkaline batteries included)
• Remote Compatibility: ACC-RT104
• Function: Heating Only
• Max Load: 1 amp maximum per terminal, 2-amp maximum total load
• Accuracy: ±1°F
• System Compatibility: Single-stage heat, gas, oil, electric
• Terminal Designations: S1, S2, W, G, R
• Shape: Rectangular
• Display Type: LCD Digital
• Control Type: Button Control
• Mounting Type: Panel Mount
• Backlight: Yes
• Stages: Single
• Specific Uses: Garage
