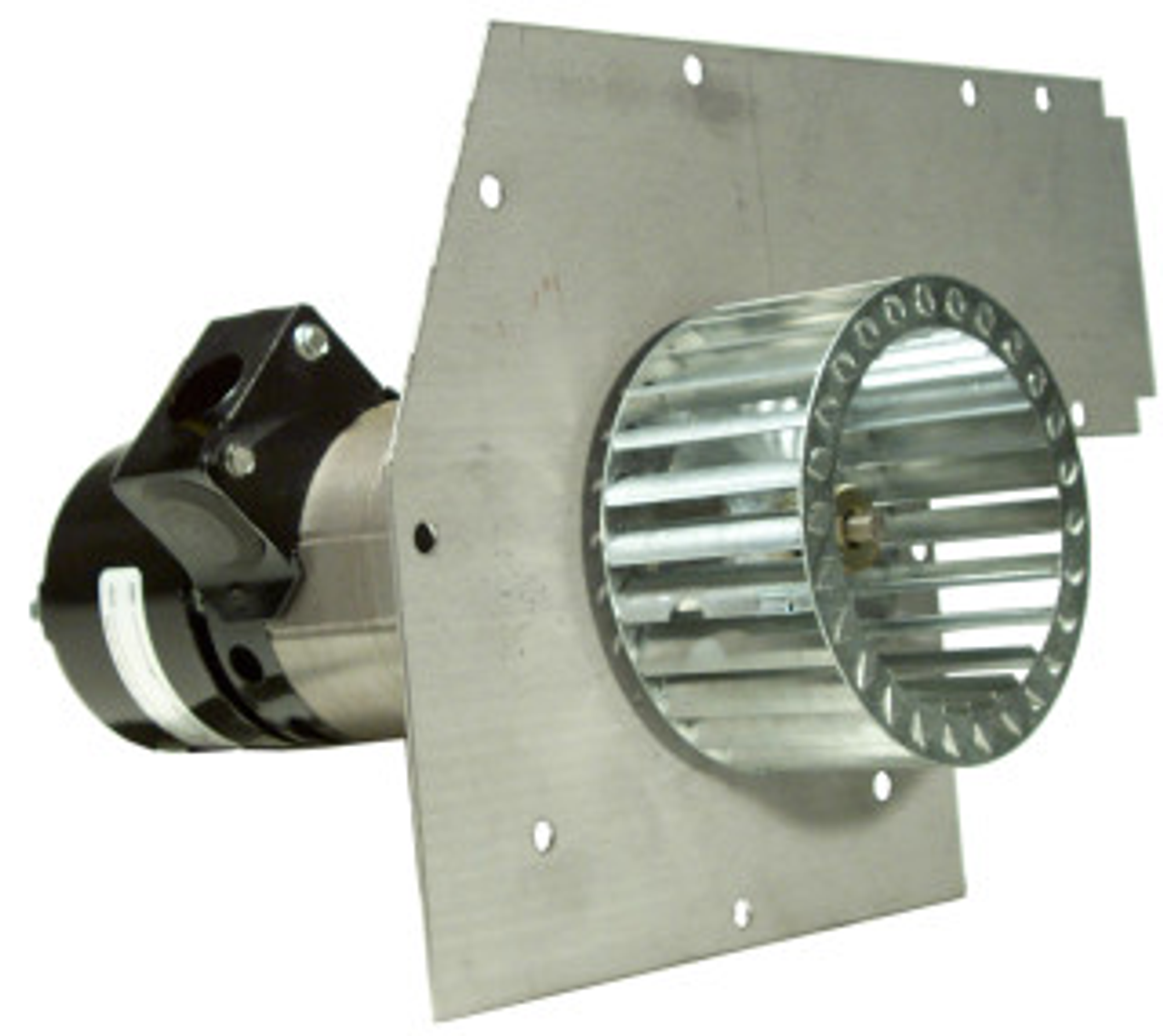

ICM CONTROLS FB-RFB655 Rotom Exhaust Blower

Product Description

The ICM CONTROLS FB-RFB655 is a Rotom exhaust blower built for various industrial applications. It operates efficiently at both 230 and 460 Volts and is equipped with a 1/16 HP motor. This single-phase blower features an open design, reaching a speed of 1/3000 RPM in a clockwise rotation.

• Exhaust blower with 1/16 HP motor
• Operates at 230/460 Volts, 1.2/0.6 Amps
• Includes a built-in centrifugal switch

Product Highlights

This blower is ideal for use in environments that require reliable air movement. It is suitable for commercial applications, with cross-reference capabilities for models like Commercial 024-24115-018, 020, 713, and Fasco 7162-4547.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: FB-RFB655

Technical Specifications

• Horsepower: 1/16 HP
• Voltage: 230/460 Volts
• Amperage: 1.2/0.6 Amps
• Type: SP/Open
• Rotation Speed: 1/3000 RPM
• Rotation: CW (Clockwise)
• Body Length: 11.1 inches
• Frame Size: 3.3 inches
• Bearing Type: Ball Bearing
