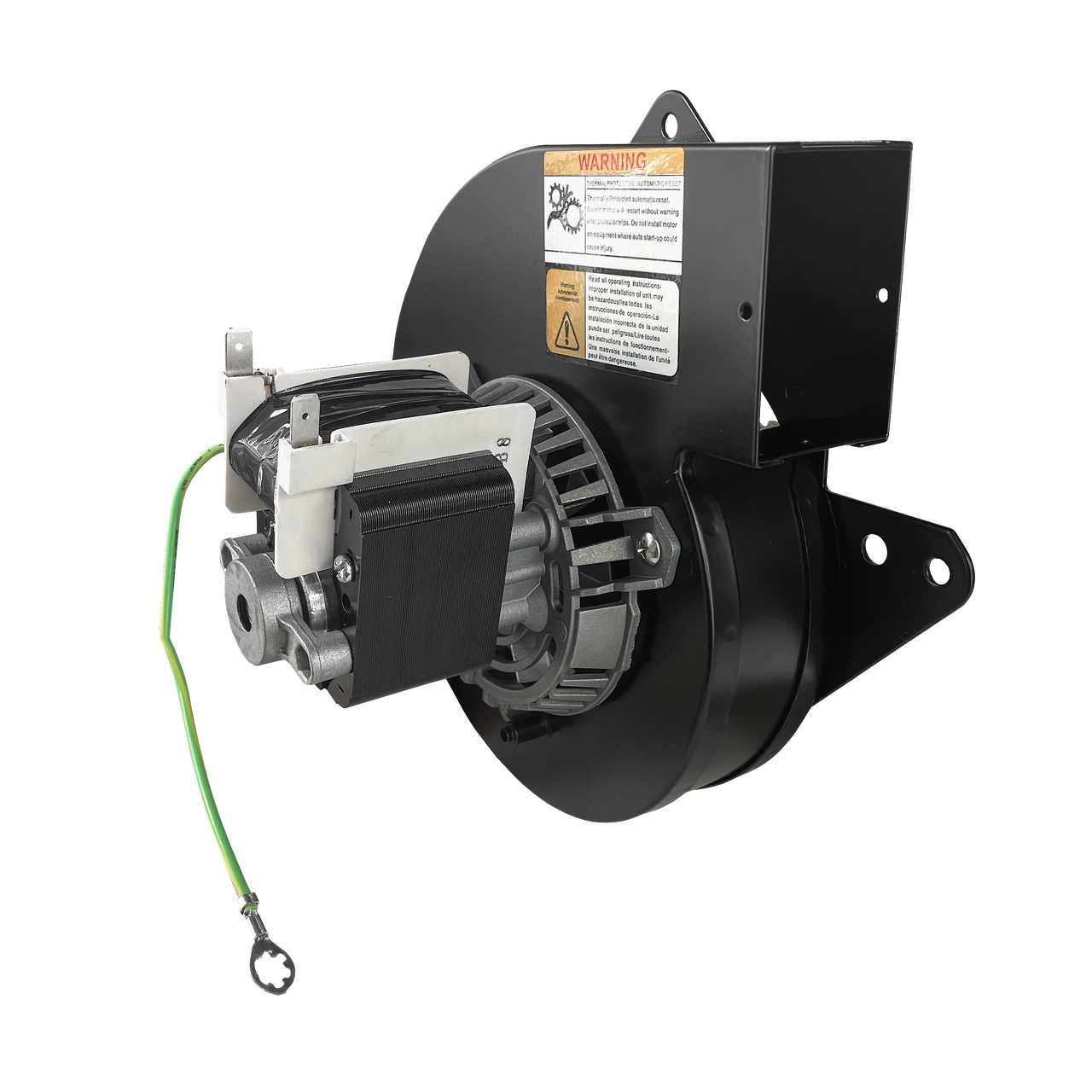

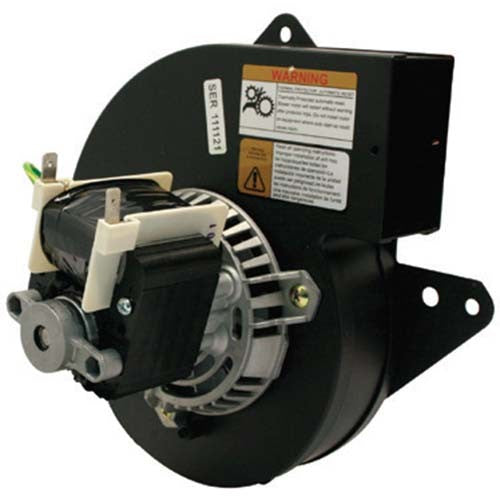

ICM Controls FB-RFB495 N200 Nidec US Motors Furnace Blower

Product Description

The ICM Controls N200 Nidec US Motors Furnace Blower, with MPN FB-RFB495, is designed for efficiency in HVAC applications. This blower operates at one hundred fifteen volts and draws one point two amps. It runs at a speed of three thousand RPM in a counter-clockwise rotation. The open enclosure design allows for better airflow, while the thermally protected feature prevents overheating.

• Includes a gasket for easy installation.
• Compatible with several models including Lennox, Dayton, and Fasco.
• Ideal for residential and commercial heating systems.

Product Highlights

The N200 blower is reliable for various furnace systems and is an excellent replacement option for many standard brands.

Product Information

Standard Information

• Voltage: 115 Volt
• Amperage: 1.2 Amps

Technical Specifications

• Frequency: 60 Hz
• Phase: 1 Ph
• Rotation: CCWSE
• RPM: 3000
• Enclosure Type: Open
• Protection: Thermally Protected
• Replacement References: Lennox 7002-2975, 31L5501, 7002-3509, 7058-1311; Dayton 45KC91; Fasco A200
