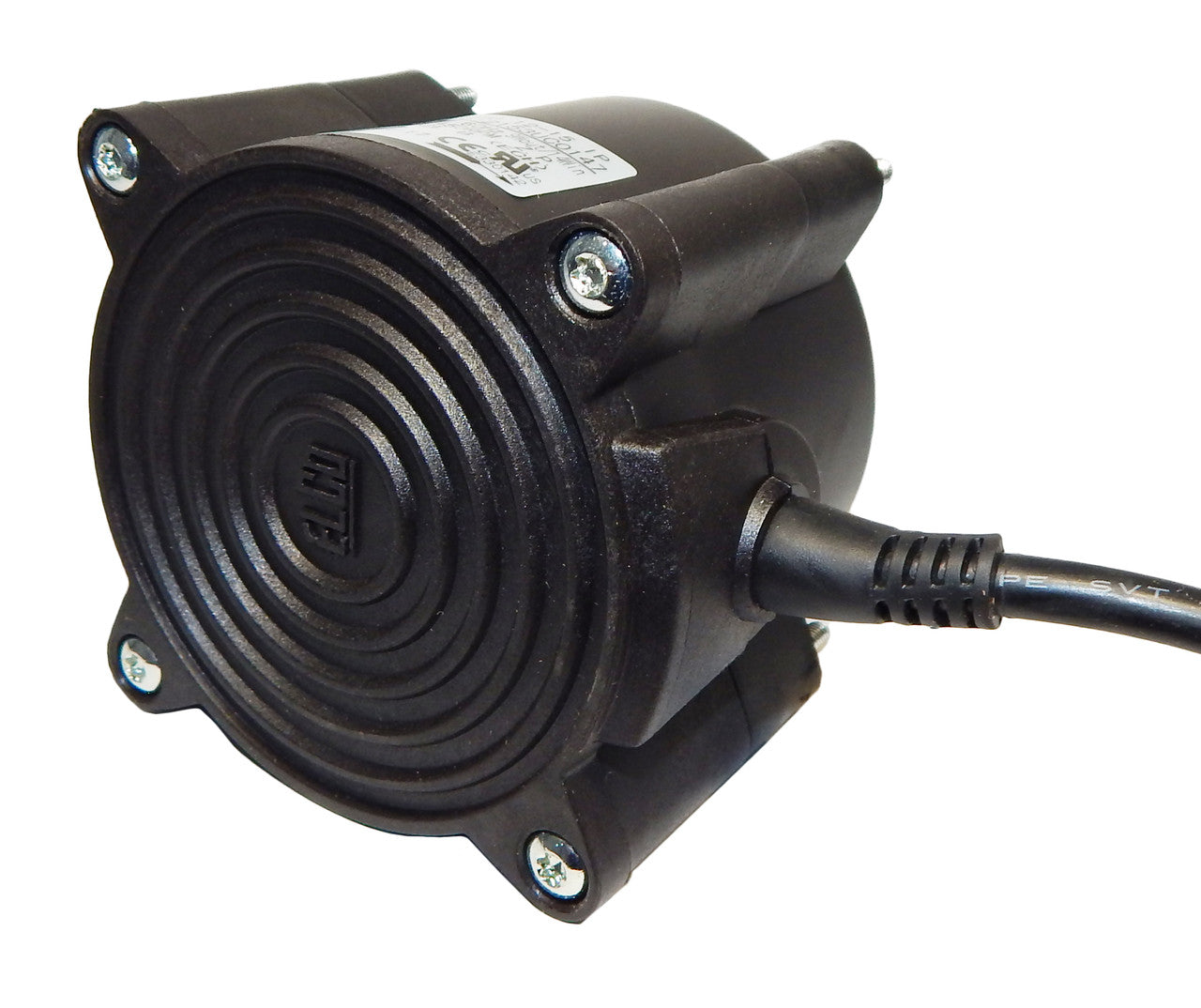

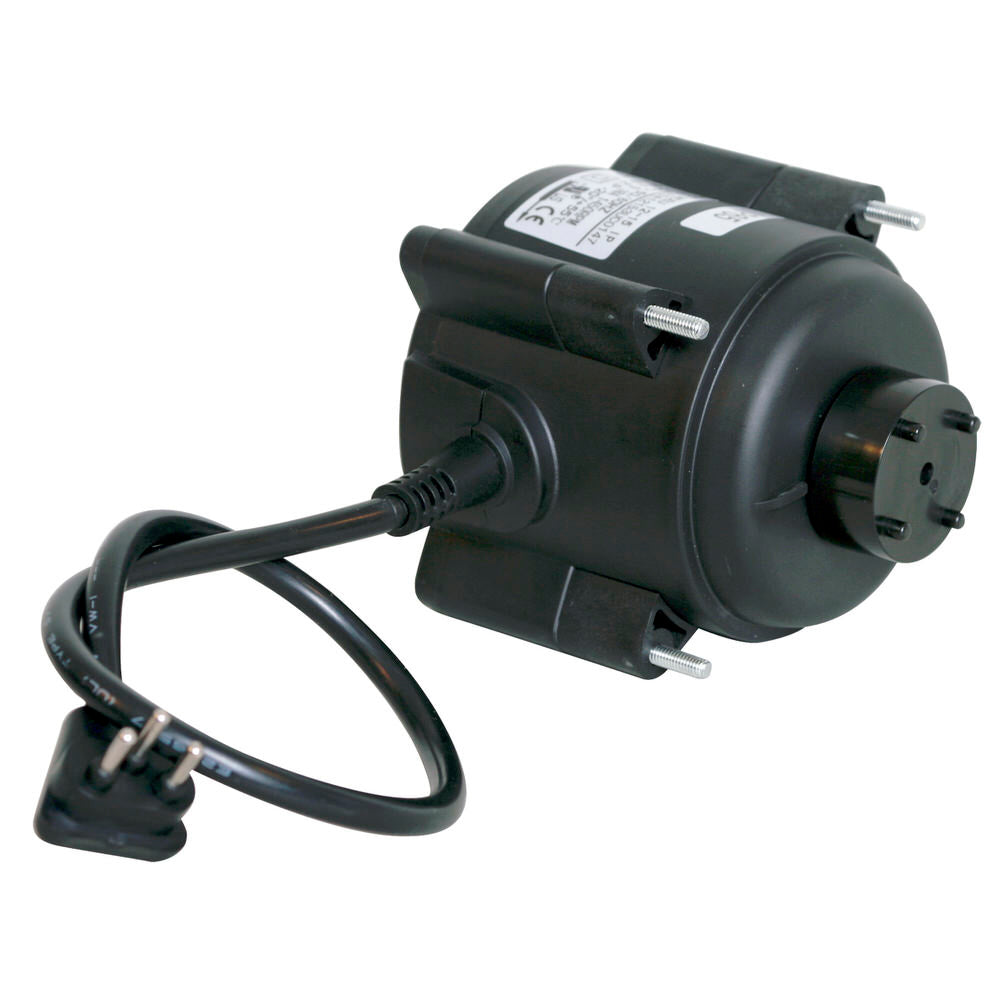

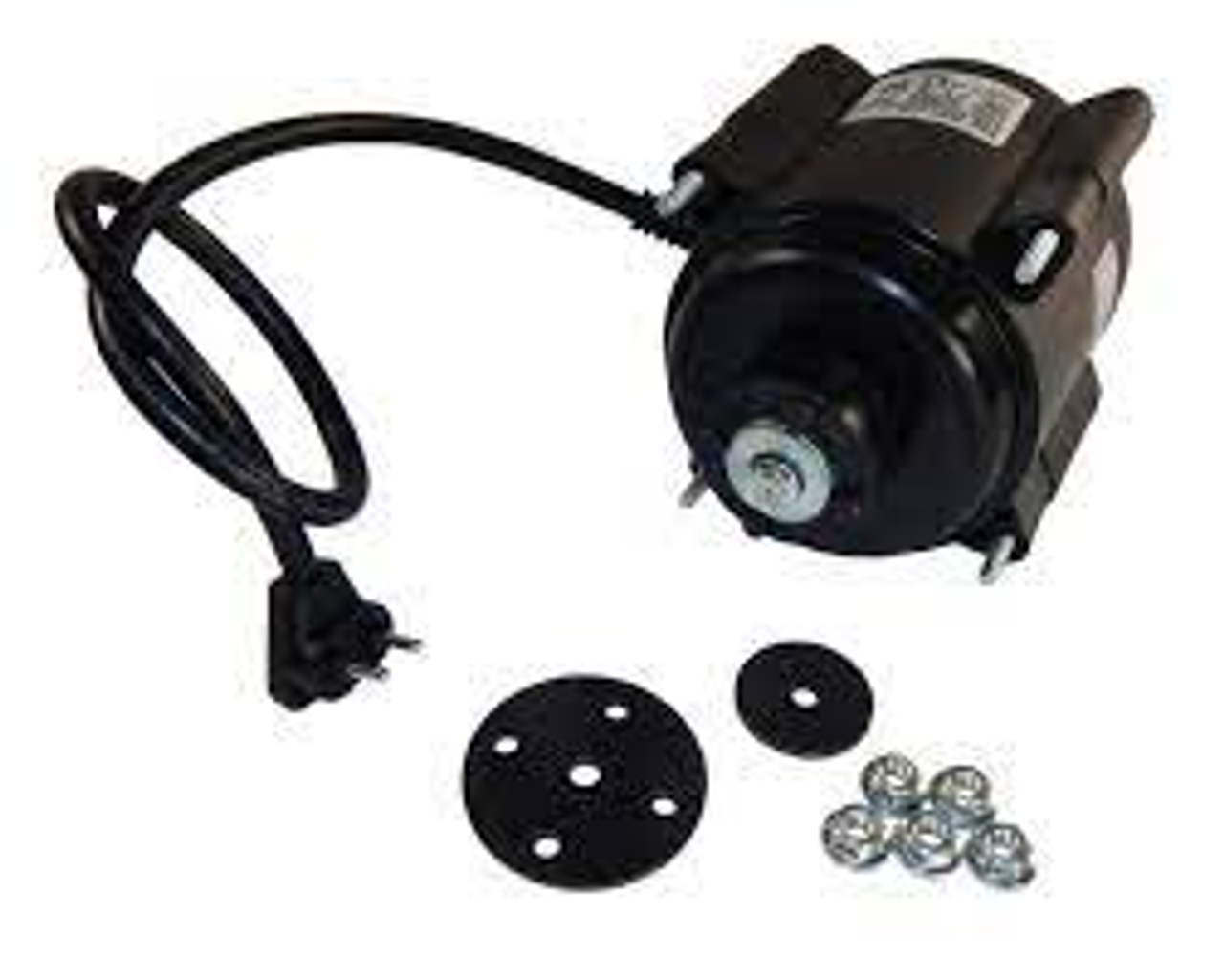

ICM CONTROLS EC-HE0147 ECM Elco Refrigeration Motor

Product Description

The ICM CONTROLS EC-HE0147 is an ECM Elco refrigeration motor designed for evaporator fan applications in both Arneg Canada and US refrigeration systems. This motor operates on 115 volts and consumes 12 watts, producing a speed of 1450 RPM. The totally enclosed design assures durability and efficient performance, ideal for continuous duty applications. The product includes long-life sealed ball bearings and features moisture protection through its plastic case.

• Operates at 12 watts and 115 volts with a speed of 1450 RPM.
• IP65-rated enclosure for protection against moisture.
• Comes with a 14-inch cord and a 3-pin plug for easy connection.

Product Highlights

This motor is suitable for various refrigeration systems, ensuring reliable performance and long life.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: EC-HE0147

Technical Specifications

• Watts: 12
• Voltage: 115
• Amps: 0.18
• RPM: 1450
• Frequency: 60 Hz
• Enclosure: IP65 Totally Enclosed
• Type: Electronically Commutated
• Diameter: 3.3 inches
• Bearings: Ball
• Rotation: CCWSE
• Cord Length: 14 inches
