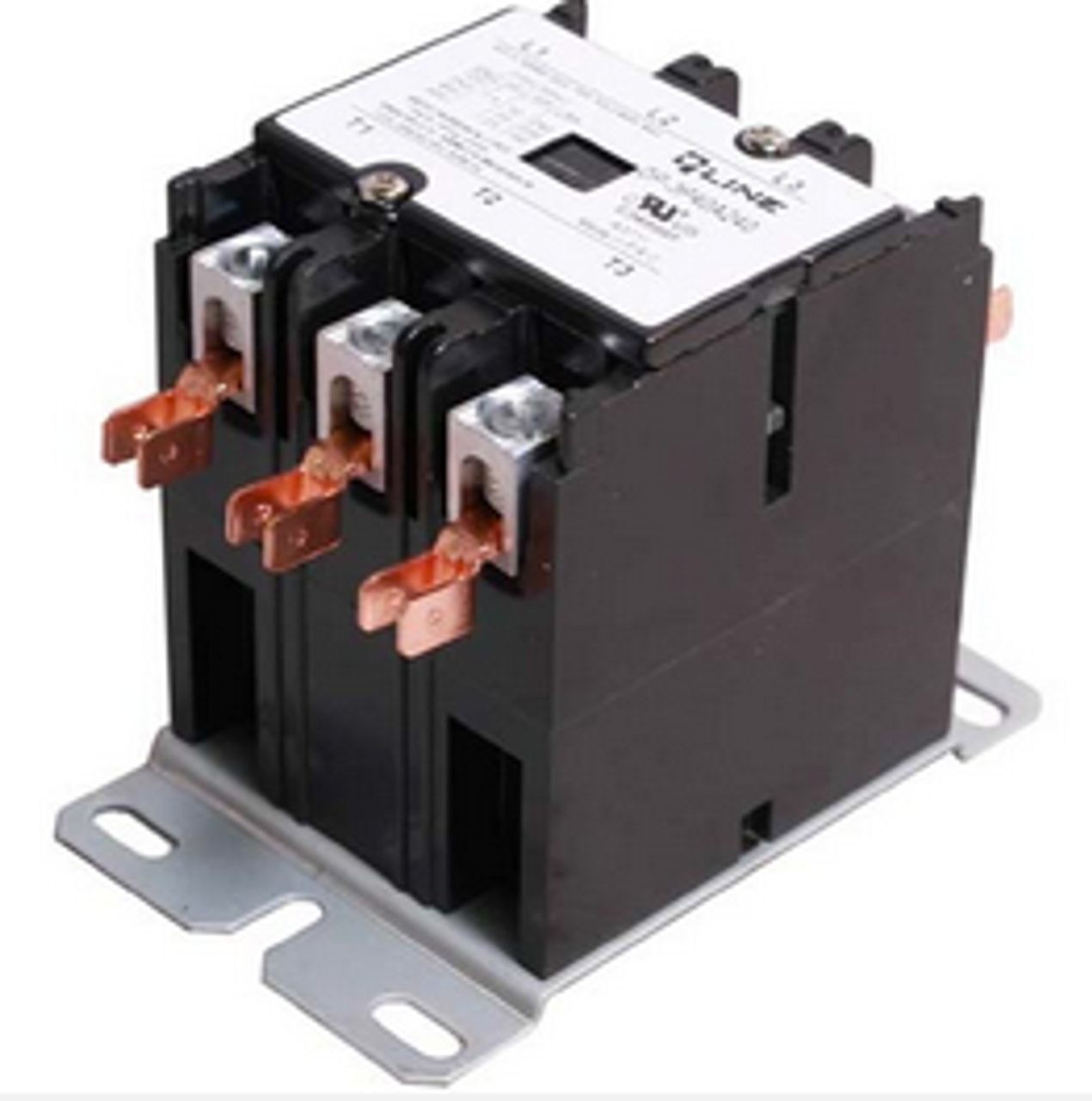

ICM Controls DP-3P50A240 Definite Purpose Magnetic Contactor

Product Description

The ICM CONTROLS DP-3P50A240 is a magnetic contactor designed for specific power circuit applications. This contactor is rated for 50 amps and operates efficiently at 208/240V. It includes box lug termination with a universal galvanized mounting plate, simplifying installation. The product meets ARI 780/790 standards and comes equipped with lug and spade terminals along with protective covers.

• 3 pole design for versatile applications.
• Rated for 50 amps at 208/240V.
• Compact size with secure mounting features.

Product Highlights

The ICM CONTROLS DP-3P50A240 provides a reliable solution for establishing or interrupting power circuits in various demanding environments.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: DP-3P50A240

Technical Specifications

• Poles: 3
• Full Load Amps: 50
• Coil Voltage: 208/240
• Locked Rotor Amps @ 240V: 300
• Locked Rotor Amps @ 480V: 250
• Locked Rotor Amps @ 600V: 200
• Resistive Amps: 65
• Contact Termination: Box Lug
