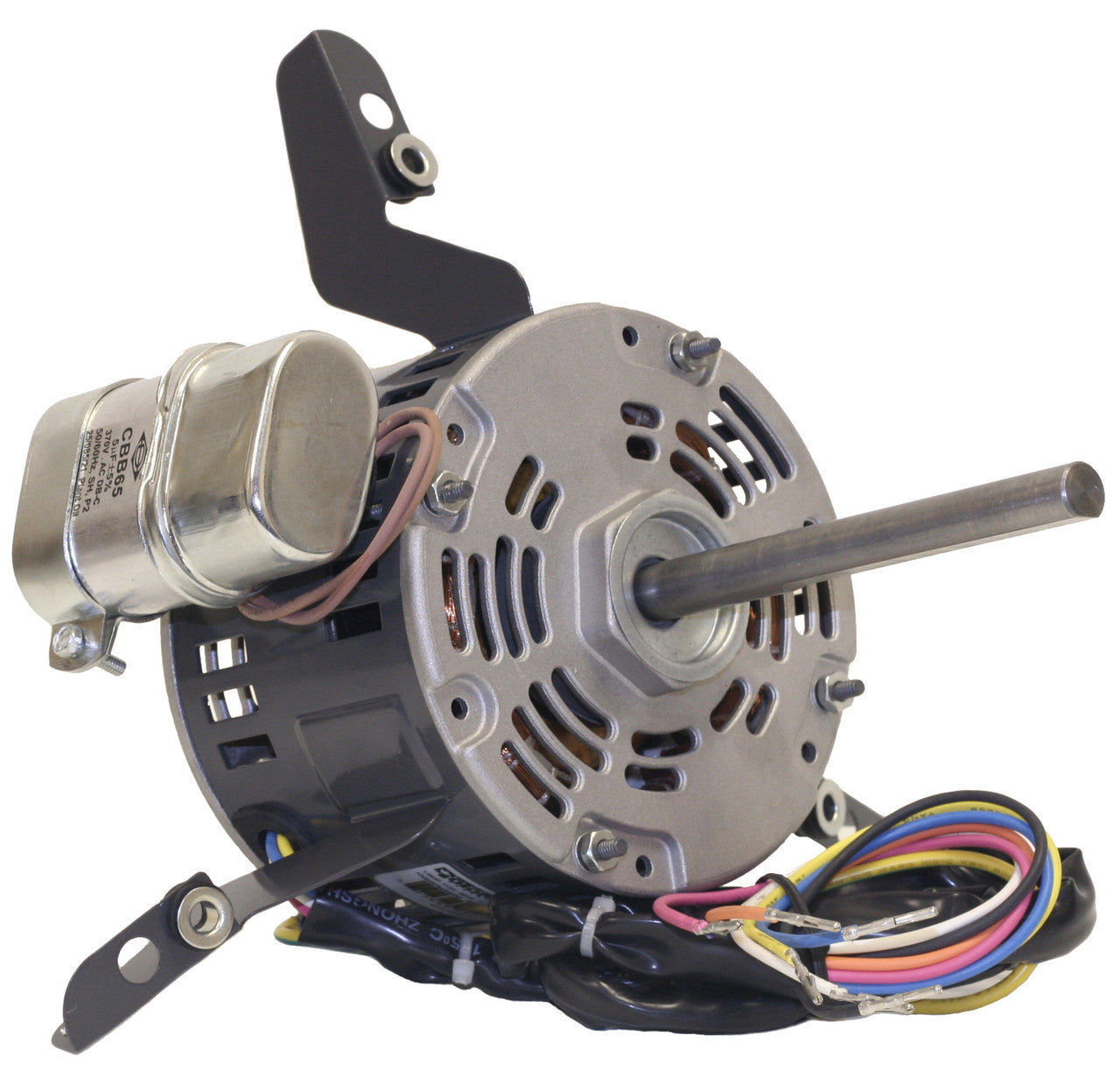

ICM Controls DD-030 1/6 hp 950 RPM 5-Spd 115V Rotom Blower Motor

Product Description

The ICM CONTROLS DD-030 is a 1/6 horsepower, 115V blower motor designed for fan coil units in heating and air conditioning systems. This motor operates at nine hundred fifty revolutions per minute and draws two point six amps. It is suitable as a direct replacement in various applications including models from Climetec, Snyder-General, Temspec, and Unilux.

• 1/6 HP, 950 RPM, 2.6 amps, 115V
• 5-speed capability for flexible performance
• Includes 5 MFD capacitor and 34 leads with a 6-hole connector

Product Highlights

This motor features a torsion flex mount for secure installation. The included capacitor is mounted directly to the motor, simplifying setup.

Product Information

Standard Information

• Country of Origin:
• Weight: 9 lbs
• Dimensions: Body 3.98 inches

Technical Specifications

• Horsepower: 1/6 HP
• RPM: 950
• Voltage: 115V
• Amps: 2.6
• Speed: 5
• Shaft Size: 1/2 x 4.4 inches
• Rotation: CW Shaft End
• Mounting: Torsion Flex Mount
• Capacitor: 5 MFD
