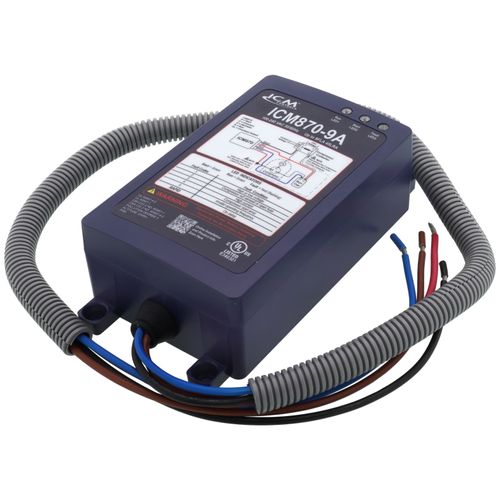

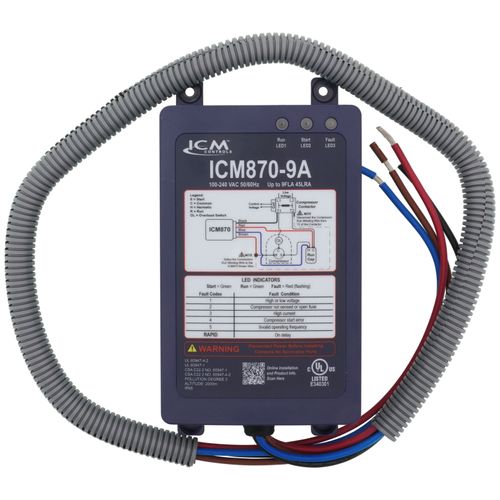

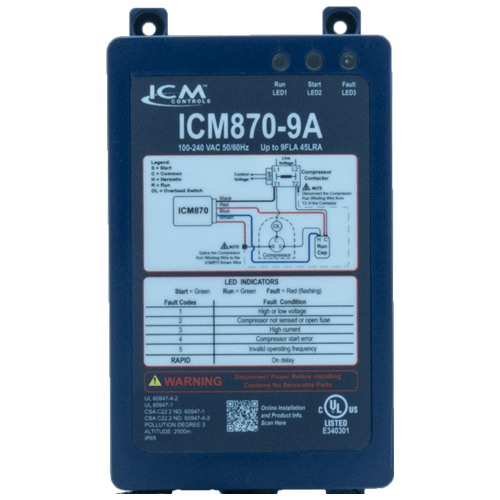

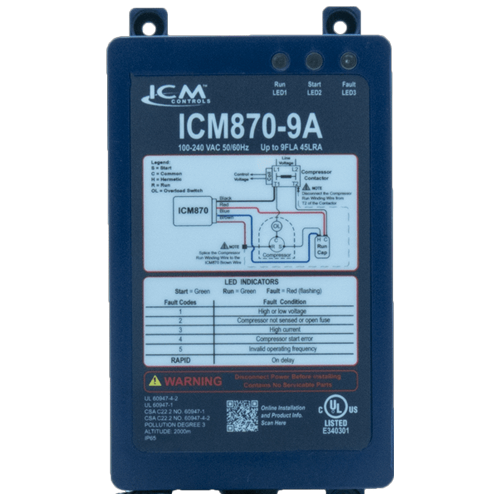

Icm Controls 870-9A Soft Start, Built-in Start Capacitor, Over/Under Voltage Monitoring, Over-Current Protection 9A

Product Description

The ICM CONTROLS 870-9A is a soft start device designed to reduce compressor or motor in-rush current during startup, thereby lowering peak current demand on power supplies like generators. It monitors system health, including voltage and current, and integrates compressor startup. This unit is suitable for marine, RV, residential, and commercial applications, operating at 100-240 VAC. It features over/under voltage monitoring and over-current protection.

• Starting current reduction & self-learning algorithm
• Built-in start capacitor
• Over/under voltage monitoring

Product Highlights

The ICM CONTROLS 870-9A soft start reduces in-rush current, monitors system health, and protects against voltage and current anomalies.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 870-9A

Technical Specifications

• Inputs: L1 & L2
• Input Voltage: 100-240 VAC 50/60Hz
• Outputs: Compressor
• Solid State Relay: Yes
• Operating Temperature: -40°F to 131°F
• Humidity: 0-95% non-condensing
• Product Type: Starter
• Nominal Current: 9 FLA
• Over Current Limit: 11.25A
• Over Voltage Limit: 115 VAC nominal = 140 VAC, 240 VAC nominal = 264 VAC
• Under Voltage Limit: 115 VAC nominal = 95 VAC, 240 VAC nominal = 195 VAC
