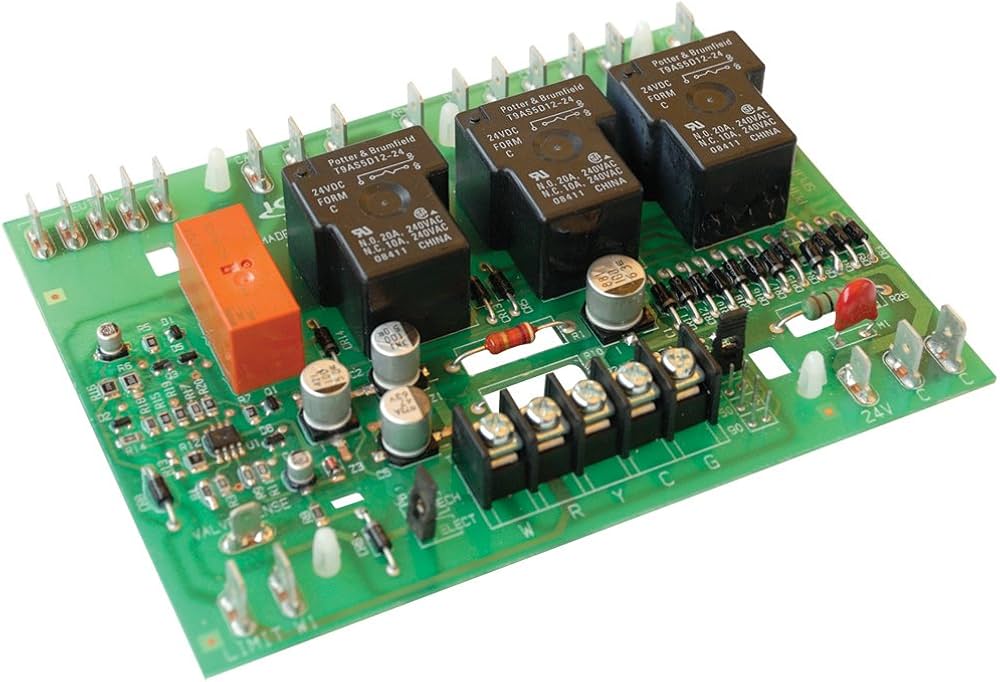

ICM Controls 83-30289 ICM289 Furnace Control Board

Product Description

The ICM Controls ICM289 is a furnace control board designed for replacing Lennox BCC1, BCC2, and BCC3 circuit boards. This unit manages the inducer fan motor and blower fan, while also monitoring limit switches within the furnace system. Its microprocessor-based design provides reliable operation.

• Direct replacement for Lennox BCC1, BCC2, and BCC3 circuit boards
• Controls inducer fan motor and blower fan, monitors limit switches
• Compatible with all 24 VAC thermostats

Product Highlights

This control board offers a practical solution for maintaining furnace control systems, ensuring functional replacement and easy integration.

Product Information

Standard Information

• Country of Origin: United States
• UPC: 800442013312

Technical Specifications

• Voltage Rating: 98-132 VAC at 60 Hz
• Amperage Rating: 20 A at 120 VAC Heat and Cool Blower, 5 A at 120 VAC Inducer Motor
• Time Delay: 1 s Off (Cool Blower), 45 s On (Heat Blower), 90, 150, 210, 270 s Off (Heat Blower)
• Dimensions: 4-1/4 inches L x 5-5/8 inches W x 1 inch H
