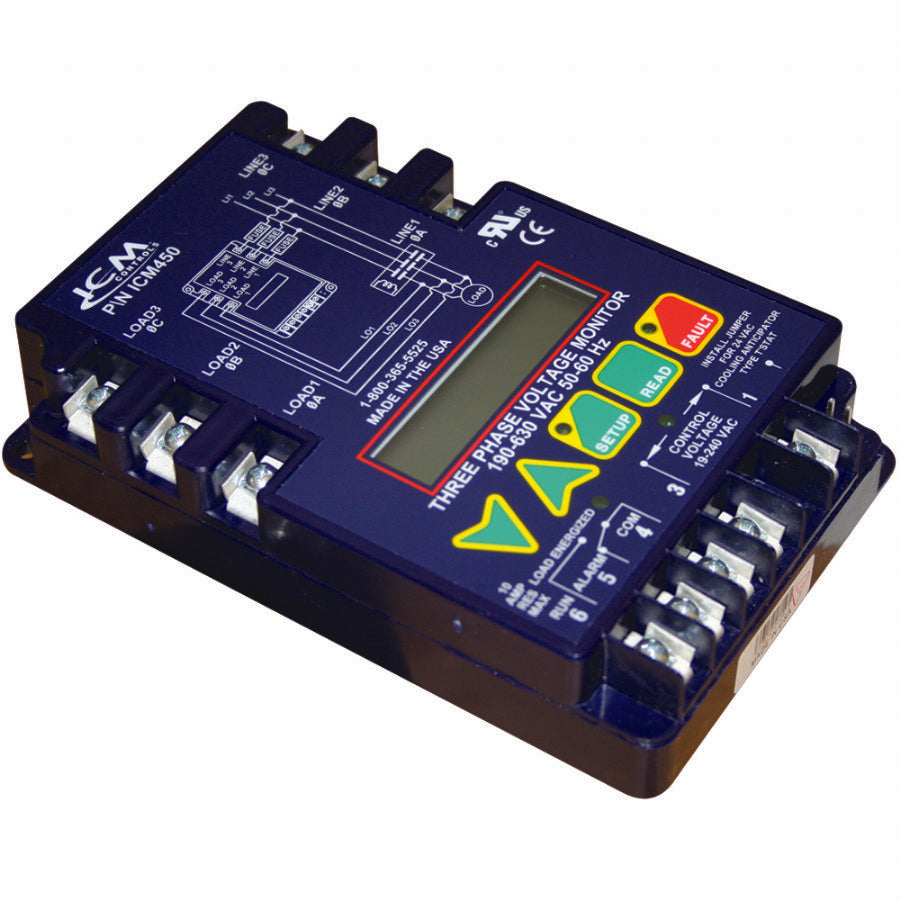

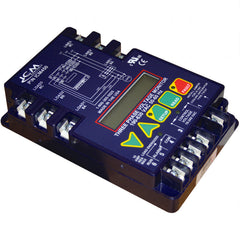

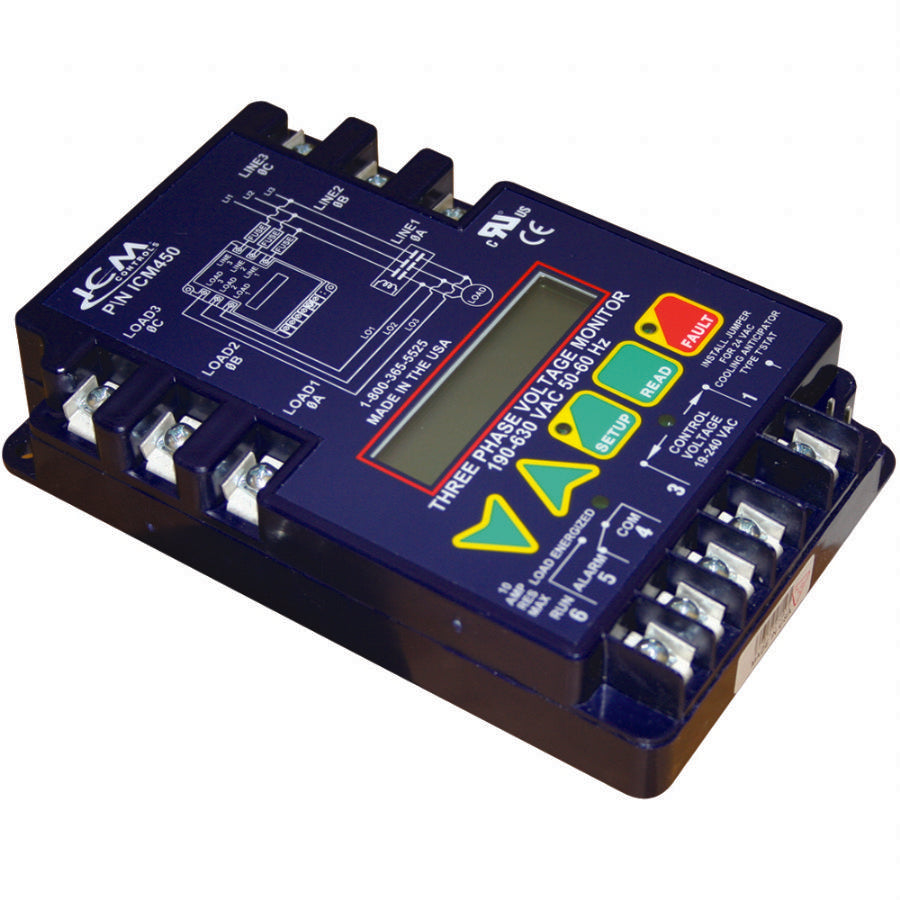

Icm Controls 450 ICM450

Product Description

The ICM CONTROLS 450 is a motor protection device designed to safeguard motors and other 3-phase loads from premature failure and damage. It addresses common voltage faults such as voltage unbalance, over/under voltage, phase loss, reversal, incorrect sequencing, and rapid short cycling. With a universal input line voltage of 190-630 VAC and 50-60 Hz frequency, this unit provides comprehensive protection for industrial applications. Its relay SPDT output can handle up to 240 VAC at 10A.

• Protects 3-phase loads from common voltage faults.
• Monitors for voltage unbalance, over/under voltage, and phase loss.
• Prevents damage from incorrect sequencing and rapid short cycling.

Product Highlights

Comprehensive 3-phase motor protection against voltage faults, ensuring equipment longevity.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 450

Technical Specifications

• Input Voltage: Universal, 190-630 VAC
• Input Frequency: 50-60 Hz
• Load Side Monitoring: Optional
• Control Voltage: 18-240 VAC
• Control Frequency: 50-60 Hz
• Output Type: Relay, SPDT
• Output Voltage: 240 VAC @ 10A maximum
• Output Frequency: 50-60 Hz
• Operating Temperature: -40°F to +167°F (-40°C to +75°C)
• Storage Temperature: -40°F to +185°F (-40°C to +80°C)
