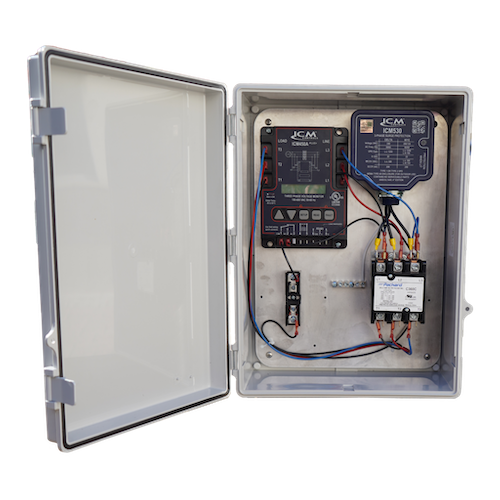

Icm Controls 3VMS-60-208 3-Phase Surge Protection and 3-Phase Voltage Monitor 60A, 208VAC

Product Description

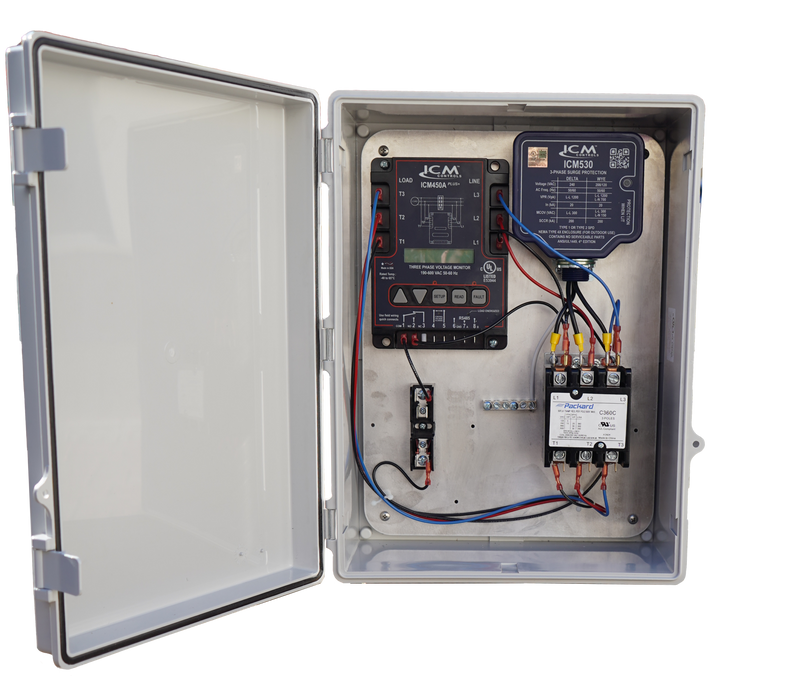

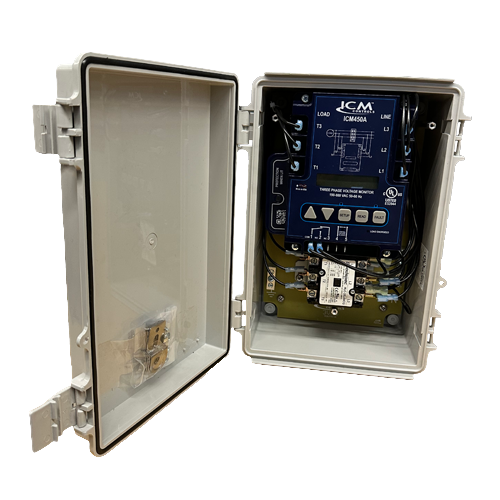

The ICM CONTROLS 3VMS-60-208 combines a 3-phase line voltage monitor and a three-phase Surge Protective Device (SPD) into one solution. It protects against power surges and over/under voltage issues that can damage circuit boards and motors in residential and commercial three-phase 208VAC HVAC/R equipment.

• Individual components are replaceable and pre-wired for 208VAC
• Features a field programmable voltage monitor with backlit LCD display and fault history
• Protects against over and under voltage, phase loss, phase reversal, phase unbalance and rapid short cycling

Product Highlights

This device utilizes TFMOV technology for surge protection up to 150kA and has a NEMA 4X rating. It includes a separate 3-pole, 60amp contactor.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 3VMS-60-208

Technical Specifications

• Nominal Voltage: 208 VAC
• Operating Voltage: 190 – 252VAC
• Frequency: 50/60 Hz
• SCCR: 5kA
• Contactor: 60A FLA, 208/240VAC
• Surge Protection Device: Maximum surge current: 150,000 amps
• Protection modes: L-L, L-N
• Phase Unbalance: 7%
• Over/Under Voltage: 5%
• Delay on Break (ASC): 15 seconds
• Delay on Fault: 3 seconds
• Reset Mode: 0 (auto)
