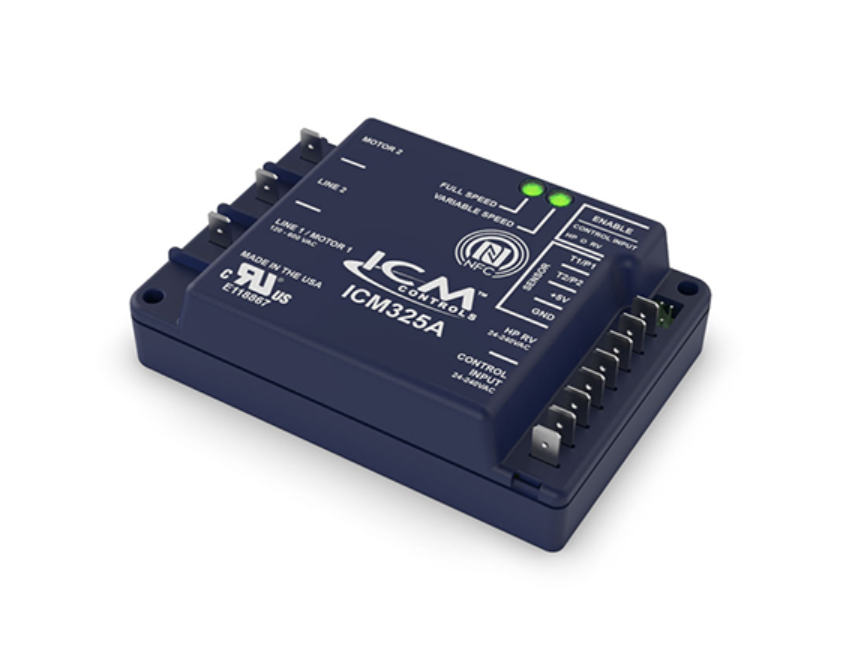

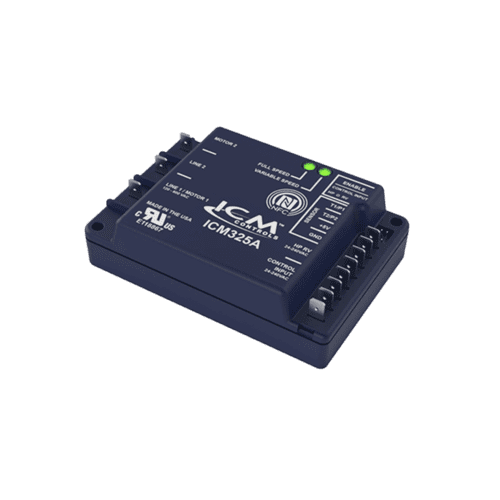

ICM CONTROLS 325A Single Phase Head Pressure Control

Product Description

The ICM CONTROLS 325A is a single-phase head pressure control suitable for air conditioning and heat pump applications. This unit operates with a universal line voltage range of one hundred twenty to six hundred volts and control voltage from twenty-four to two hundred forty volts. The device integrates heat pump bypass circuitry allowing for efficient operations in low ambient situations. It prevents issues like evaporator freeze-ups and liquid slugging in compressors.

• Controls temperature or pressure-sensitive motor fan speed.
• Equipped with heat pump bypass circuitry for electronic speed control.
• Supports Near Field Communication via the ICM OMNI App.

Product Highlights

This device is designed to enhance efficiency and reliability in HVAC systems.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: 325A

Technical Specifications

• Line Input: 120 - 600V
• Control: 24-240 VAC (Jumper Enabled)
• Input: 50/60 Hz 1.8 VA Max.
• Maximum Output: 10 Amps
• Minimum Output: 100 mA
• Operating Temperature: -40F to +176F
• Temperature Sensors: 10K Ohms At 77F
• Heat Pump Reversing Valve Input: 24-240 VAC
• Controls: Up to 3 refrigeration circuits
• RoHS Compliant: Yes
• Power Consumption: 1.8 VA max.
