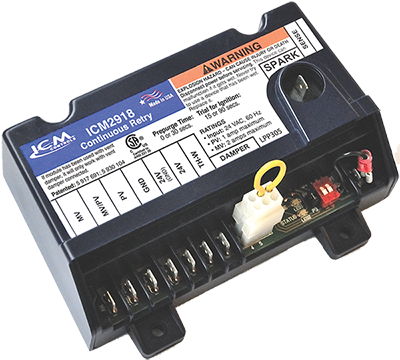

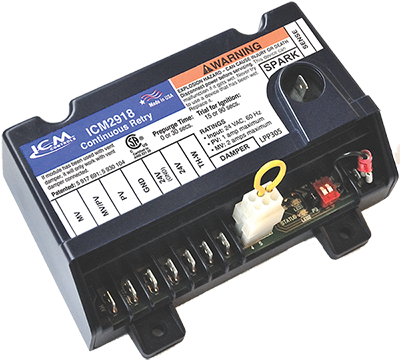

Icm Controls 2918 universal intermittent pilot ignition control 18-30 VAC replaces ICM290A

Product Description

The ICM CONTROLS 2918 Direct Spark Ignition (DSI) control board is a microprocessor-based module designed for efficient furnace operation. It manages spark ignition sequencing, gas valve output, and inducer and blower operations with comprehensive safety control. Operating on 18-30 VAC, this module coordinates the direct spark ignition sequence, including pressure switch validation and flame sensing. Continuous safety monitoring checks high-limit circuits and flame detection. Integrated diagnostic LEDs provide status information and fault codes for troubleshooting heating appliances.

• Manages spark ignition sequencing, gas valve output, and inducer/blower operations.
• Microprocessor-based for precise timing and reliable ignition control.
• Continuous safety monitoring of high-limit circuits, auxiliary limits, and flame detection.

Product Highlights

Universal intermittent pilot gas ignition control module, field service replacement for ICM290A, Honeywell S8610U, and over 280 other models.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 2918
• Country of Origin: United States

Technical Specifications

• Manufacturer: ICM
• Part Number: ICM2918
• Product Model Number: ICM2918
• Number of Item Packages: 1
• Included Components: Control
• Batteries Included: No
• Batteries Required: No
• Control Voltage: 18-30 VAC @ 50/60 Hz
• Ignition Test: 15 or 90 seconds (switch configurable)
• Operating Temperature: -40 °C to 160 °F (74 °C)
• Relative Humidity: 5% – 95% (non-condensing) at +55°C
• Pre-purge Time: 0 seconds or 30 seconds (switch configurable)
• Green Status LED: System status and error codes
• Yellow Flame LED: Flame presence and flame resistance
