Icm Controls 289 ICM 48K98 Control Board 45K48

Product Description

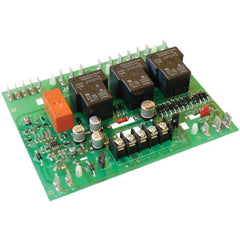

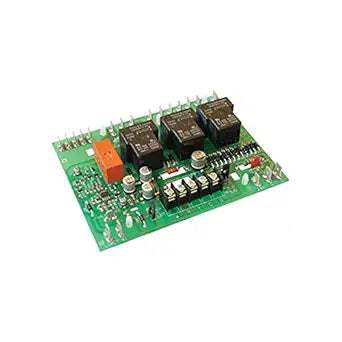

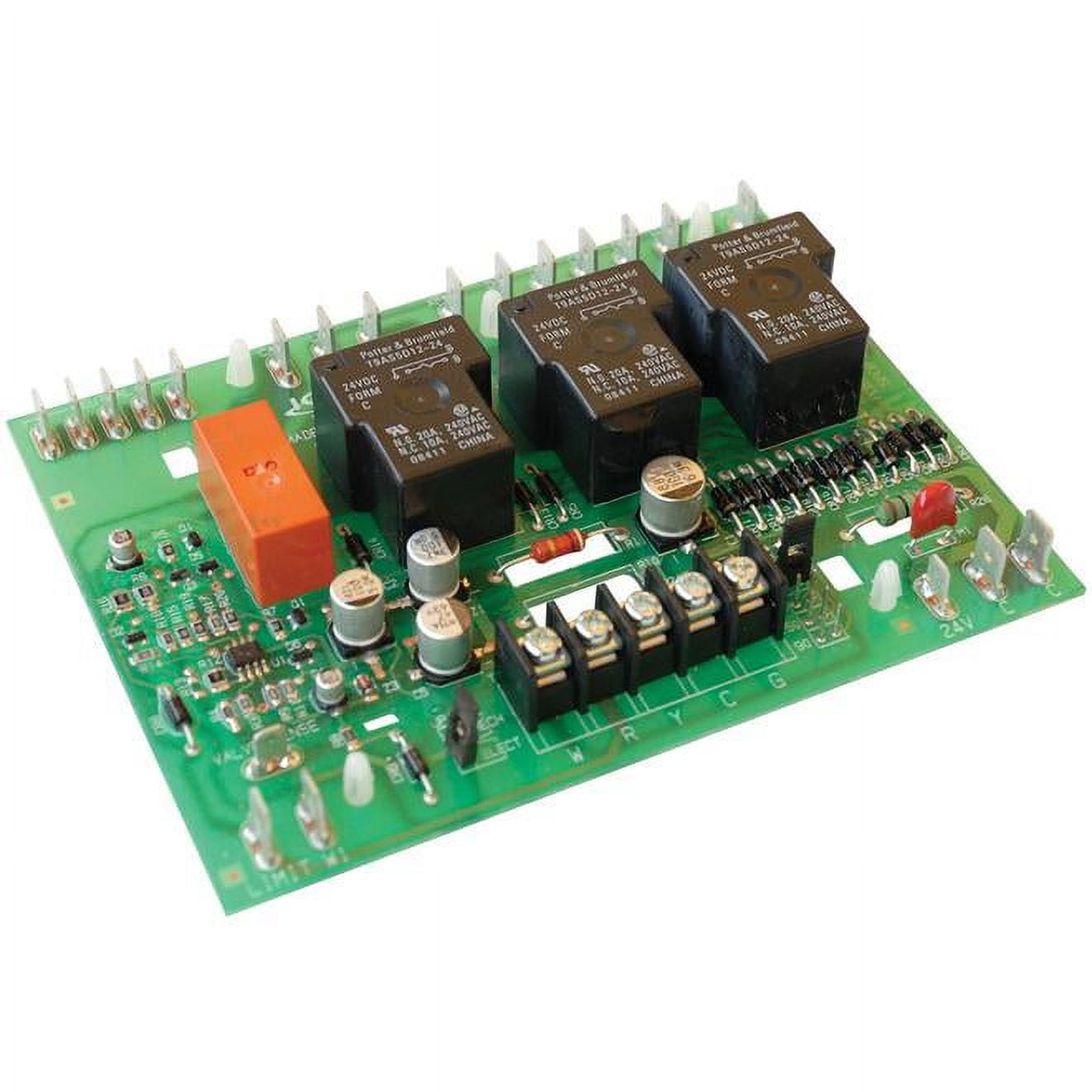

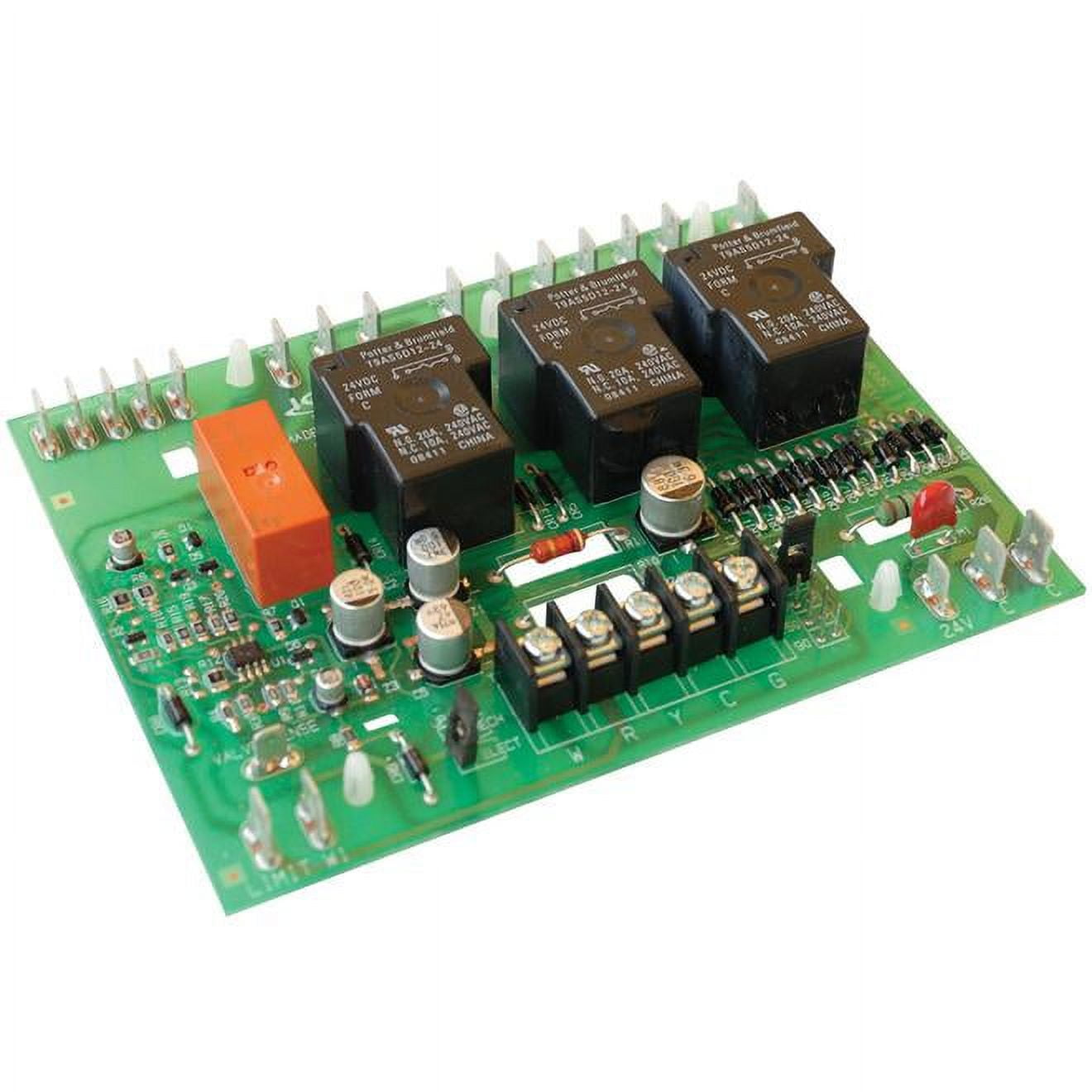

The ICM Controls 289 is a furnace control module designed as a low-cost, form, fit, and functional replacement board for Lennox BCC1, BCC2, and BCC3 circuit boards. This microprocessor-based control manages the inducer fan motor, blower fan, and monitors limit switches. It ensures 100% gas shutoff in case of ignition failure and functions with all 24 VAC thermostats. The board also features diagnostic fault codes for troubleshooting and includes a compressor lockout timer.

• Low-cost, form, fit, and functional replacement for Lennox BCC1, BCC2, and BCC3 circuit boards.
• Controls inducer fan motor, blower fan, and monitors limit switches.
• Microprocessor-based design functions with all 24 VAC thermostats.

Product Highlights

Replaces Lennox BCC1, BCC2, and BCC3 circuit boards, offering precise control for furnace operations with diagnostic fault codes.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 289
• Country of Origin: United States

Technical Specifications

• ASIN: B00QW2JD80
• Manufacturer: ICM Controls
• Brand: ICM Controls
• MPN: 289
• Input Voltage Range: 98-132 VAC @ 60 Hz
• Cool Blower Output: 20A @ 120 VAC
• Heat Blower Output: 20A @ 120 VAC
• Inducer Motor Output: 5A @ 120 VAC
• Cool Blower ON Delay: 1 second
• Cool Blower OFF Delay: 1 second
• Heat Blower ON Delay: 45 seconds
• Heat Blower OFF Delay: 90, 150, 210, 270 seconds
• Replaces: Lennox BCC1, BCC2 and BCC3 circuit boards, including 48k98 and 45K48
• Type: OEM Furnace Control Board
• Compatibility: Lennox G23 Gas Furnace, BCC3 Circuit Board
