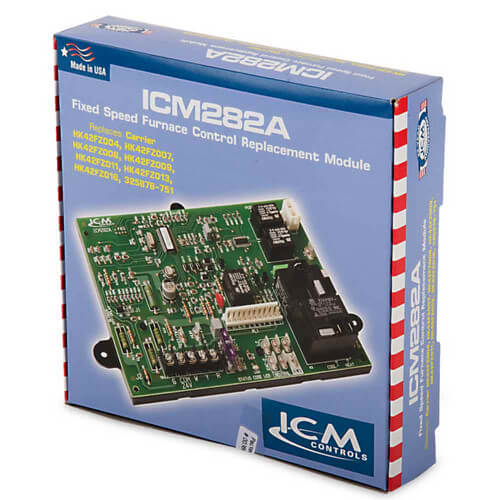

Icm Controls 282 fixed speed furnace control module

Product Description

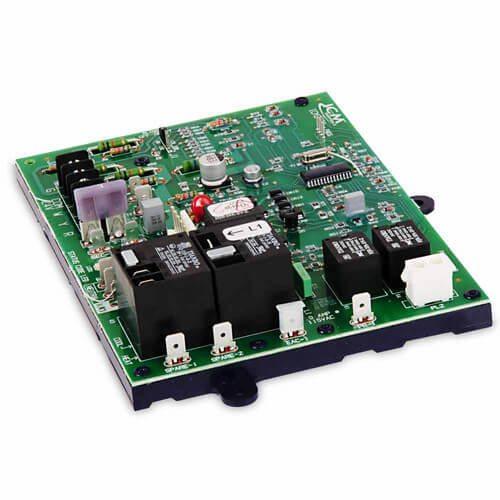

The ICM CONTROLS 282 is a microprocessor-based fixed speed furnace control module, offering direct wire-for-wire replacement for various OEM models. It manages the gas valve, ignitor, blower motor, and inducer, operating with a line voltage of 98-132 VAC at 60 Hz. This control ensures safety with 100% gas shutoff upon ignition failure and includes reverse polarity protection. It is compatible with 24 VAC standard thermostats and provides diagnostic LEDs for troubleshooting.

• Microprocessor-based control for gas valve, ignitor, blower motor, and inducer.
• Features 100% gas shutoff in case of ignition failure and reverse polarity protection.
• Compatible with 24 VAC standard thermostats and includes diagnostic LEDs.

Product Highlights

Microprocessor-based furnace control module with comprehensive safety features and diagnostic capabilities.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 282

Technical Specifications

• Product Type: Furnace Control
• Input Voltage: 98-132 VAC @ 60 Hz
• Ignitor Current: 5A @ 120 VAC
• Cool Blower Rating: 10A, 2 HP, 240 VAC
• Heat Blower Rating: 5A, 1/2 HP, 240 VAC
• Inducer Motor Rating: 4A FLA, 8.0 LRA @ 120 VAC
• Gas Valve Current: 1.5A @ 30 VAC
• Operating Temperature Range: -40°F to 176°F
• Heat Blower ON Delay: 60 Seconds
• Heat Blower OFF Delay: 90, 120, 150, 180 Seconds
• Fan (Heat) On/Off Delay: 1 Second
• Cool ON Time Delay: 2 Seconds
• Cool OFF Time Delay: 90 seconds (jumper JW2 uncut), 5 seconds (jumper JW2 cut)
