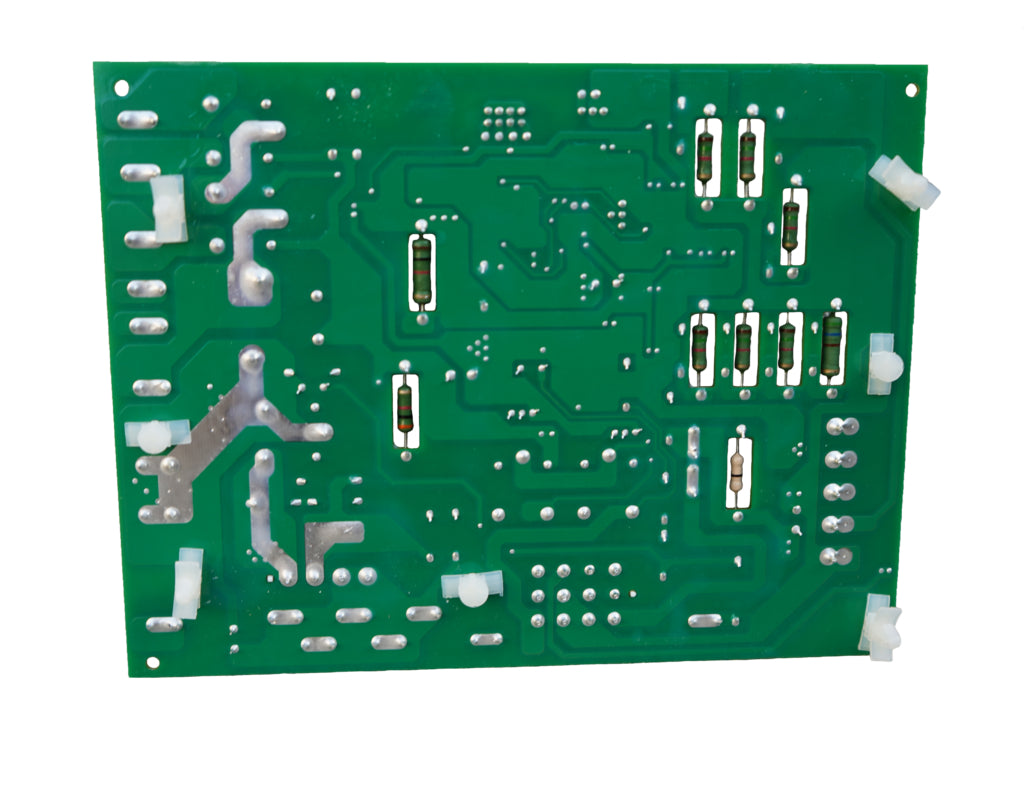

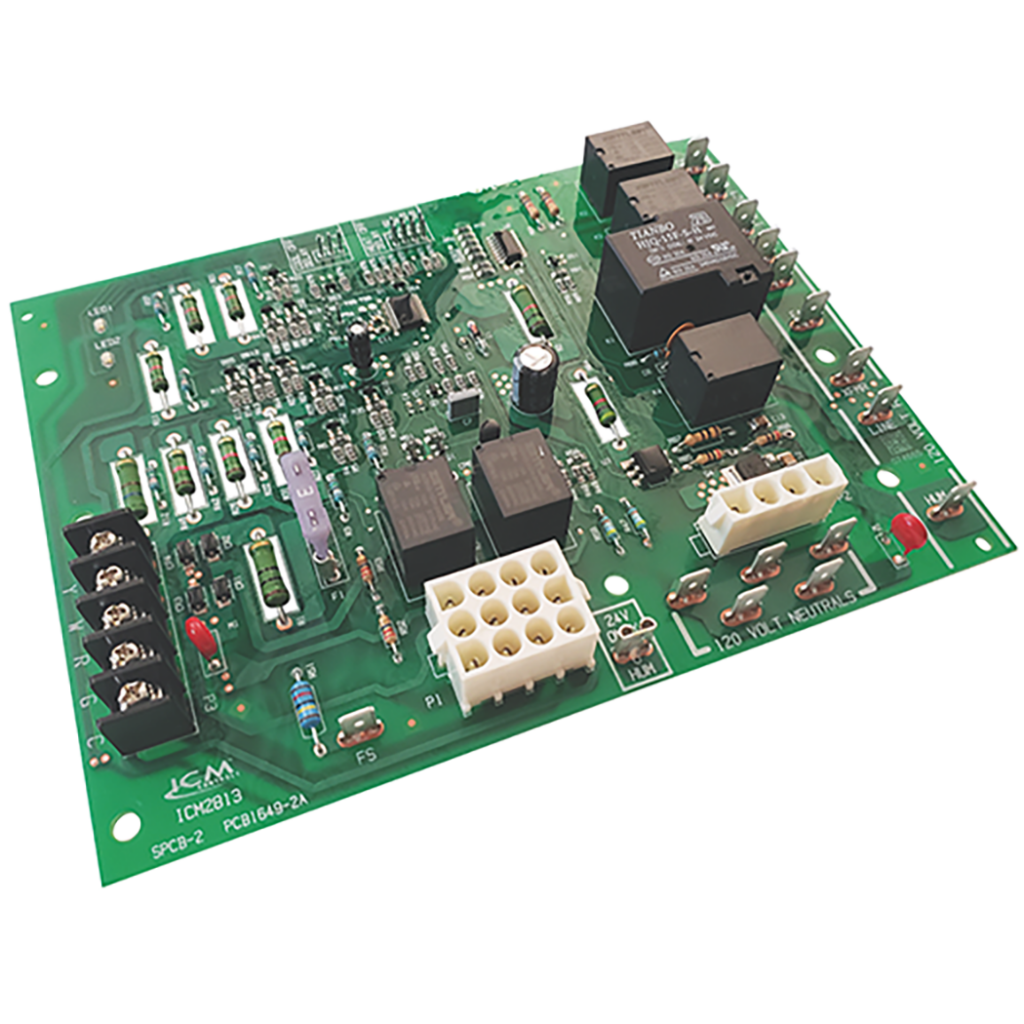

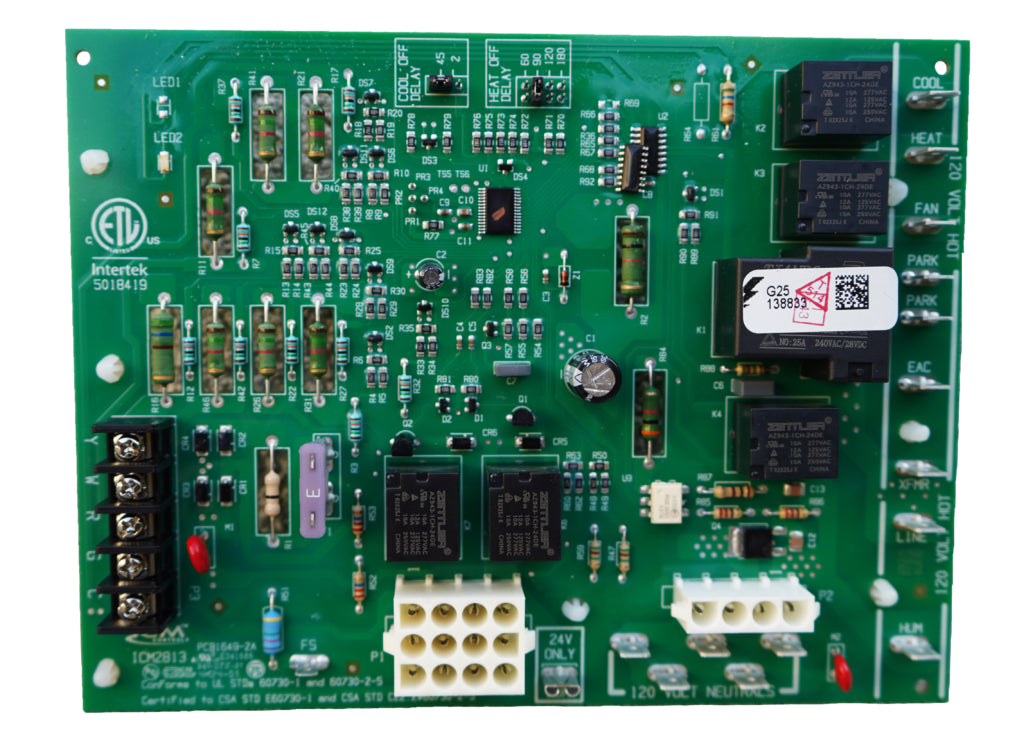

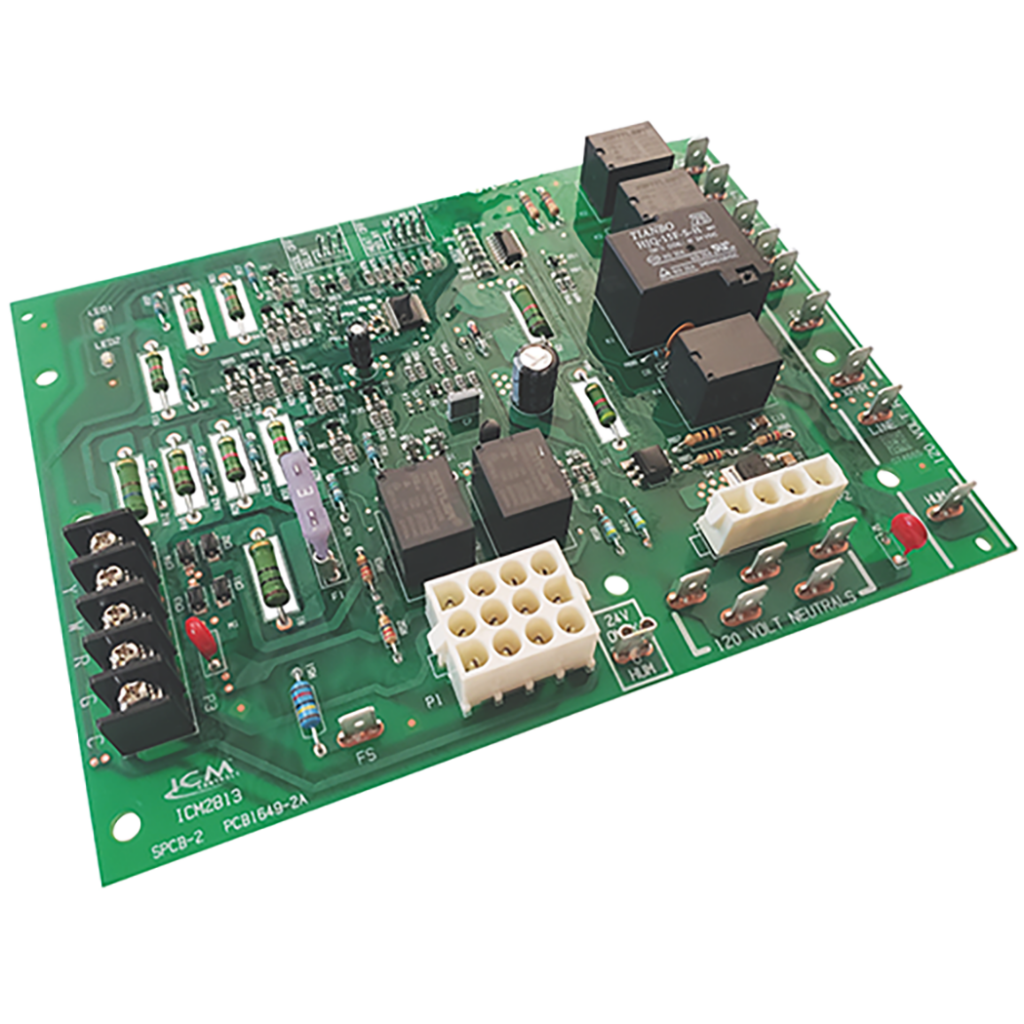

Icm Controls 2813 Lennox Replacement Furnace Control Board

Product Description

The ICM CONTROLS 2813 is a form, fit, and functional replacement for Lennox SureLight Series Boards and White-Rodgers equivalent ignition controls. This automated gas ignition control board monitors the complete ignition sequence, including the inducer, pressure switch, hot surface igniter, gas valve, and circulating blower. It also maintains full safety circuit monitoring for high limit, roll-out, and auxiliary limit switch circuits. Operating with an input voltage of 18-30 VAC, it ensures precise control and safety.

• Controls gas valve, inducer draft motor, circulating blower, and hot surface ignitor.
• Monitors system pressure, limit switches, and maintains full safety circuit monitoring.
• Features microprocessor-based precision and diagnostic LEDs for troubleshooting.

Product Highlights

Automated gas ignition control board with diagnostic LEDs for Lennox and White-Rodgers furnace systems.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 2813
• Country of Origin: United States

Technical Specifications

• Input Voltage: 18-30 VAC (supports 50/60 Hz systems)
• Igniter Current: 2.0 amp @ 80 VAC (resistive)
• Inducer Relay: 2.2 FLA–3.5 LRA @ 120 VAC
• Blower Relay: 14.5 FLA–25.0 LRA @ 120 VAC (2spd–H/C)
• Gas Valve Relay: 1.5 amp @ 25 VAC 0.6 pf
• Operating Temperature Range: -40° to 176°F (-40° to 80°C)
• Humidity Range: 5 to 95% relative humidity (non-condensing)
