Icm Controls 2812-KIT furnace control board kit White-Rodgers 50M56U-843

Product Description

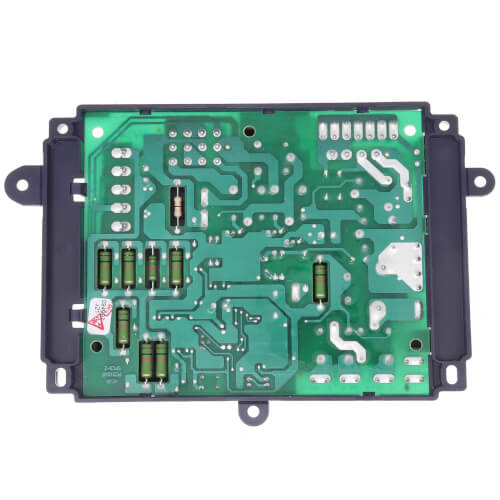

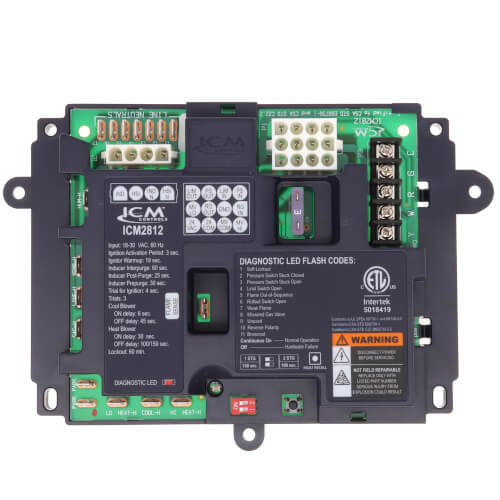

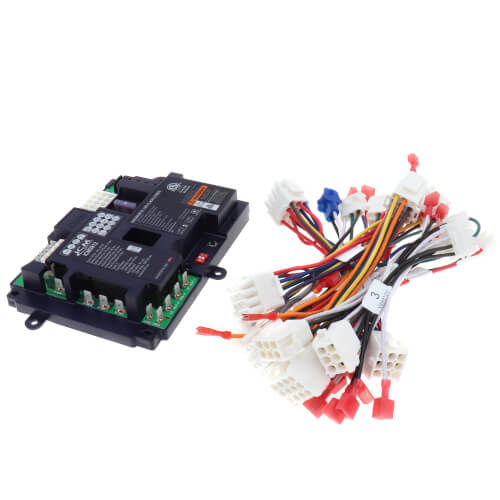

The ICM CONTROLS 2812-KIT is a universal replacement board designed for furnace control applications. It comes packaged with a series of cable harnesses, making it a replacement for the White-Rodgers 50M56U-843 and over 150 competitive part numbers. This microprocessor-based board operates with a line voltage of 120 VAC and a control voltage of 18-30 VAC, monitoring timing, trial for ignition, system switches, flame sensing, and lockout.

• Hot Surface Ignition (HSI) control board for reliable operation.
• Microprocessor-based design ensures precise monitoring and control.
• LED indication provides status and fault codes to aid in troubleshooting.

Product Highlights

Features a 100% lockout safety feature and is compatible with LP or Natural Gas systems.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 2812-KIT

Technical Specifications

• Line Voltage: 120 VAC
• Product Type: Kit Control Board
• Operating Temp Range: -40° to 176°F
• Control Voltage: 18-30 VAC
• Humidity Range: 5% to 95% Relative Humidity (Non-Condensing)
• Heat Blower ON Delay: 30 Seconds
• Heat Blower OFF Delay: 100 Seconds, 150 Seconds
• Cool Blower ON Delay: 6 Seconds
• Cool Blower OFF Delay: 45 Seconds
• HSI Hot Surface Ignitor: 6 amp @ 120 VAC
• Gas Valve: 1.5 amp @ 24 VAC
• Inducer Draft Motor: 2.2 FLA @ 120 VAC
• Blower Motor: 14.5 FLA @ 120 VAC
