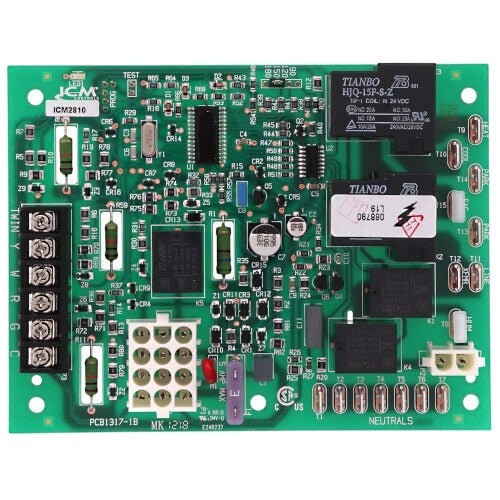

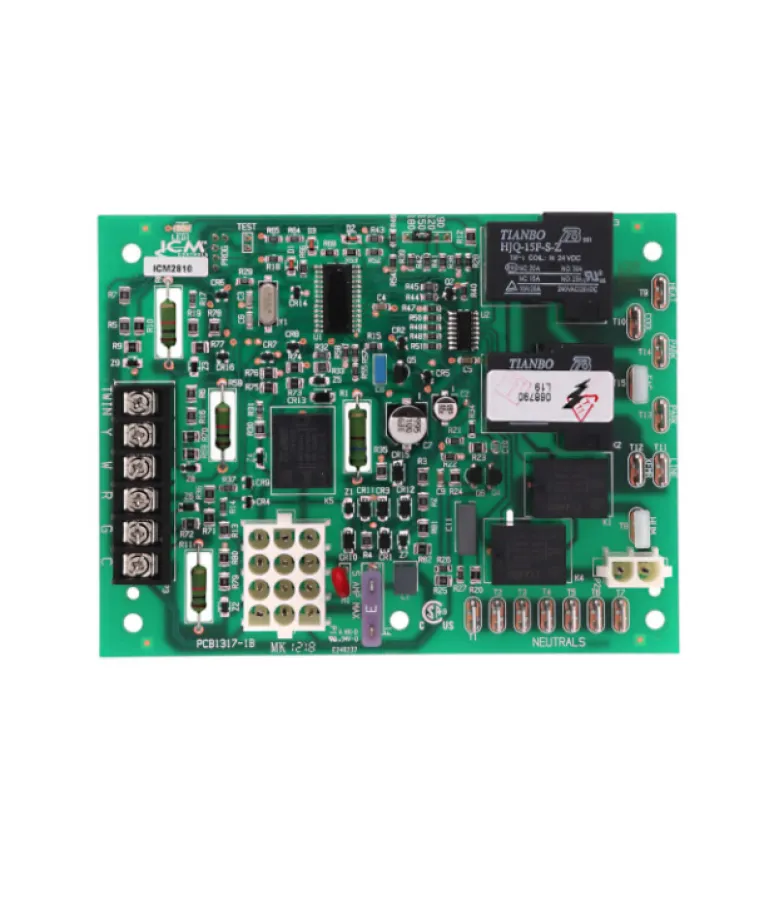

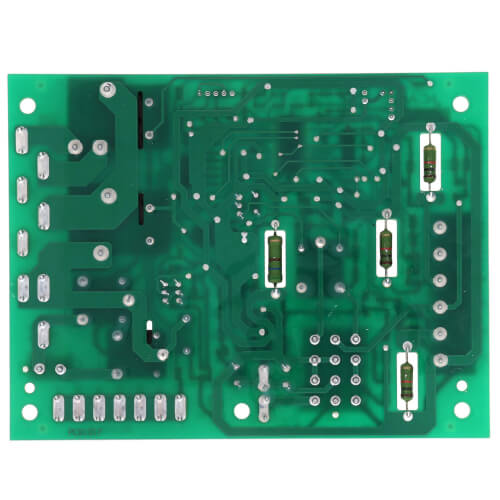

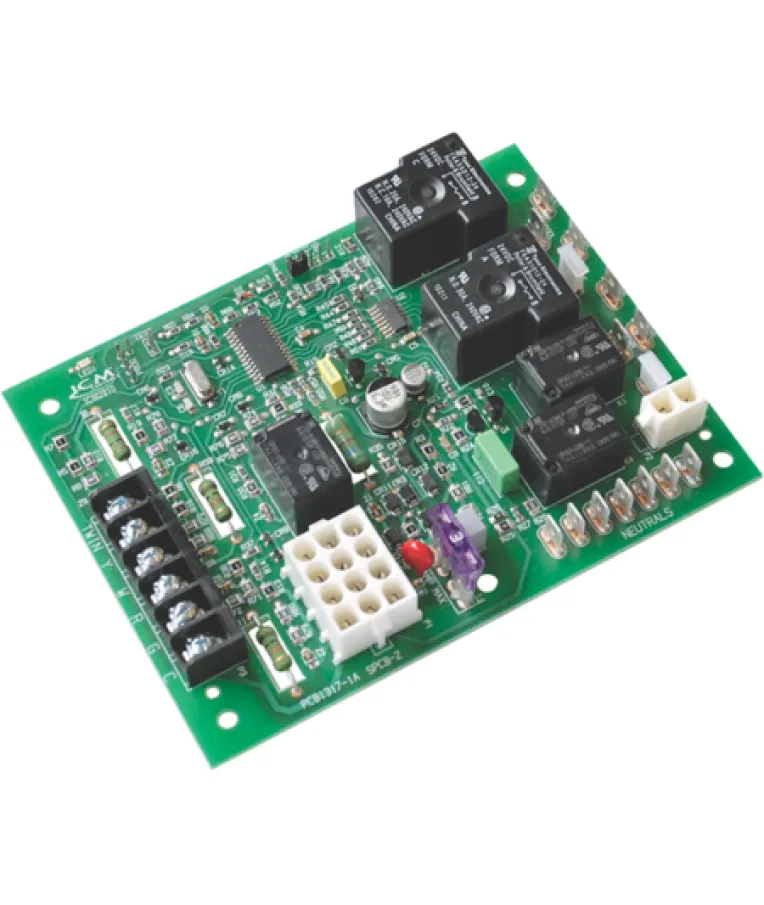

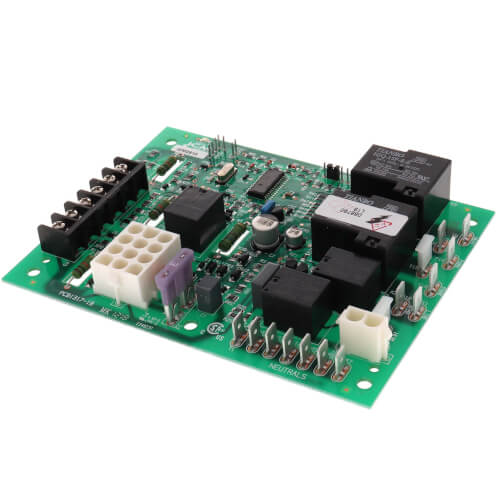

Icm Controls 2810 Furnace Ignition Control Board for Goodman PCBBF136 and PCBBF140

Product Description

The ICM CONTROLS 2810 is a microprocessor-based furnace ignition control board, serving as a replacement for Goodman PCBBF136 and PCBBF140 models. It manages critical furnace functions including inducer and blower fan motors, hot surface ignitor, and gas valve operation. The board continuously monitors timing, flame sensing, pressure, and limit switches for safe and efficient residential heating system performance. It operates within a voltage range of 98-132 VAC at 60Hz, featuring a 15-second pre-purge time and an 18-second igniter warm-up time.

• Microprocessor-based precision ensures accurate timing and reliable ignition sequencing.
• Controls inducer and blower fan motors, hot surface ignitor, and gas valve.
• Monitors timing, flame sensing, pressure, and limit switches for comprehensive safety.

Product Highlights

Microprocessor-based furnace control board for Goodman PCBBF136 and PCBBF140, managing ignition, motors, and gas valve with integrated safety monitoring.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 2810
• Country of Origin: United States

Technical Specifications

• Product Type: Control Board
• Operating Temperature Range: -40° to 176°F
• Humidity Range: 5% to 95% Relative Humidity (Non-Condensing)
• Input Voltage: Line (98 - 132 VAC) @ 60Hz
• Pre-purge Time: 15 seconds
• Igniter Warm Up Time: 18 seconds
• Post-Purge Time: 15 seconds
• Total Trials for Ignition: 3 (auto rest after 1 hour)
• Heat Blower On Delay: 30 seconds
• Heat Blower Off Delay: Selectable 90/120/150/180 seconds
• Fan (Heat) On/Off Delay: 1 second
• Cool On Delay: 5 seconds
• Cool Off Delay: 45 seconds
• Replaces Part Numbers: BD1000, ICM2810C, Goodman PCBBF136, Goodman PCBBF140
