Icm Controls 2807 Carrier replacement furnace control board HK42FZ017

Product Description

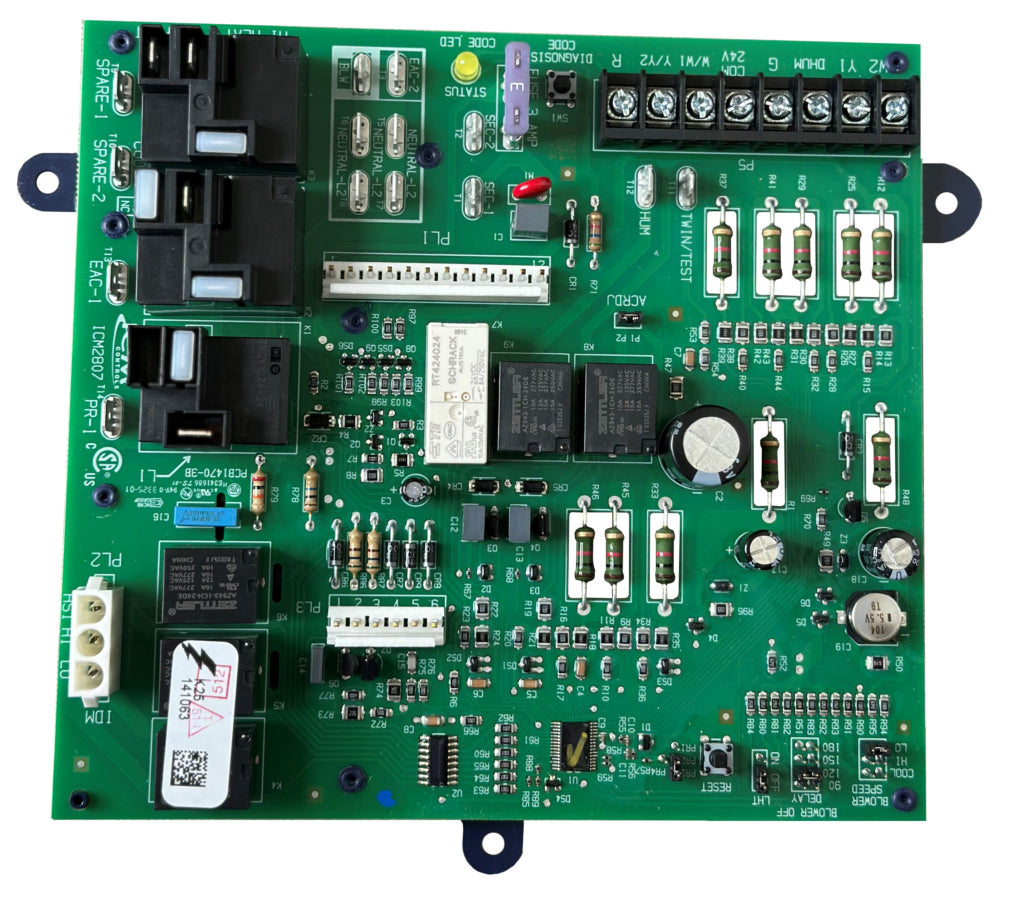

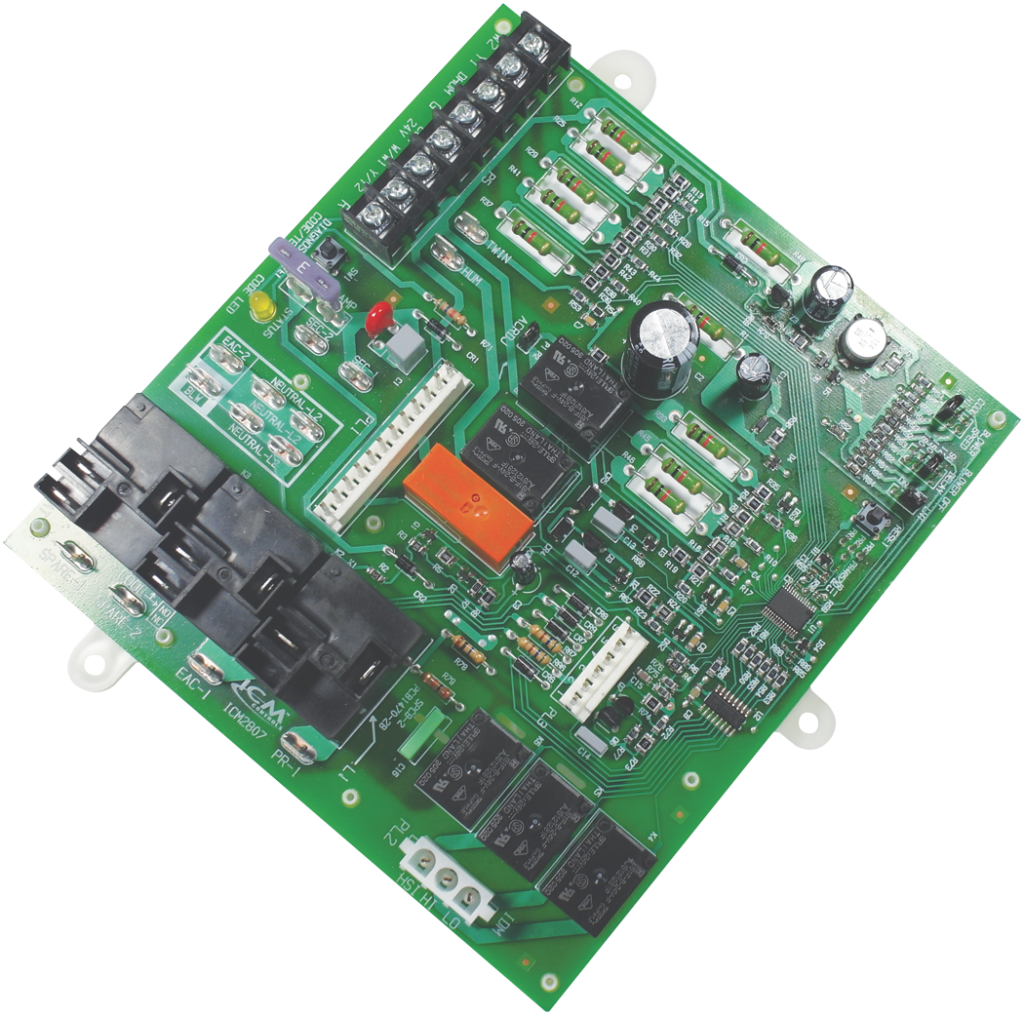

The ICM CONTROLS 2807 is a microprocessor-based, 2-stage furnace control board designed as a form, fit, and functional replacement for the Carrier HK42FZ017. It precisely controls the gas valve, ignitor, blower motor, inducer, humidifier, and air cleaner. This board ensures 100% gas shutoff in case of ignition failure and features secondary brownout voltage protection. It operates within a line voltage range of 98 to 132 VAC at 60 Hz and an operating temperature of -40°F to 176°F.

• Low cost replacement 2-stage furnace control board.
• Controls gas valve, ignitor, blower motor, inducer, humidifier and air cleaner.
• Microprocessor-based precision for optimal performance.

Product Highlights

Replacement furnace control board with diagnostic LEDs, twinning compatibility, and reverse polarity protection.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 2807

Technical Specifications

• Input Voltage Range: Line (98 to 132 VAC) @ 60 Hz
• Ignitor Current: 5A @ 120 VAC
• Low Heat Rating: 5A, 1/2 HP, 120 VAC
• High Heat Rating: 10A, 1 HP, 120 VAC
• Inducer Motor Rating: 4A, FLA-8.0 LRA @ 120 VAC
• Gas Valve Current: 1.5A @ 30 VAC
• EAC Current: 1A @ 120 VAC
• Humidifier Current: 0.5A & 24 VAC
• Operating Temperature: -40°F to 176°F
• Operating Humidity: 5% to 95% R.H. (non-condensing) @ +55°F
