Icm Controls 277 fan blower control

Product Description

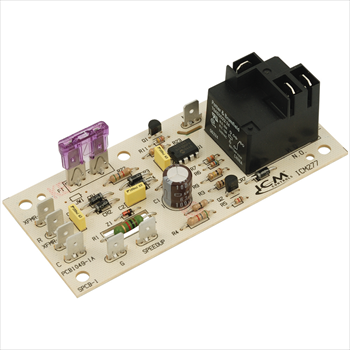

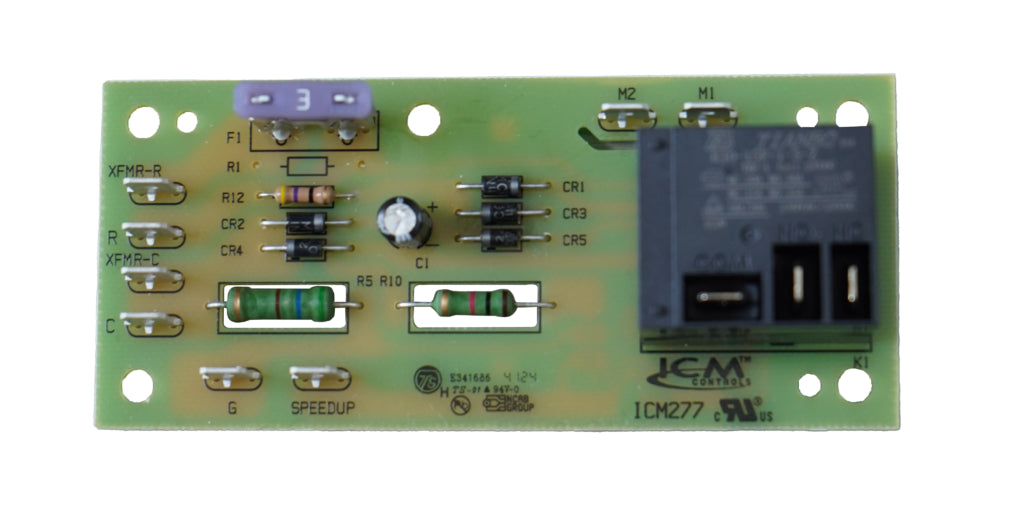

The ICM CONTROLS 277 is a microprocessor-based fan blower control designed for forced air systems. Operating with an input voltage of 18-30 VAC, it manages blower operation with precise timing. Upon a call for the blower, it implements a 7-second ON delay before energizing the motor. After the call is removed, the control maintains blower function for an additional 65-second OFF delay, ensuring efficient air circulation and post-purge.

• Fan post purge timer to control circulating fan in forced air systems
• Dual function 7 second ON delay / 65 second OFF delay
• Fuse protected control voltage

Product Highlights

Features a fan post purge timer for efficient air circulation in forced air systems.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 277

Technical Specifications

• Product Type: Electronic Component Fan
• Manufacturer: ICM Controls
• Brand: ICM Controls
• MPN: 277
• Package Quantity: 1
• Input Voltage: 18-30 VAC
• Contact Rating N.O.: 20 amps
• Contact Rating N.C.: 10 amps
• Blower ON Time Delay: 7 seconds fixed
• Blower OFF Time Delay: 65 seconds fixed
