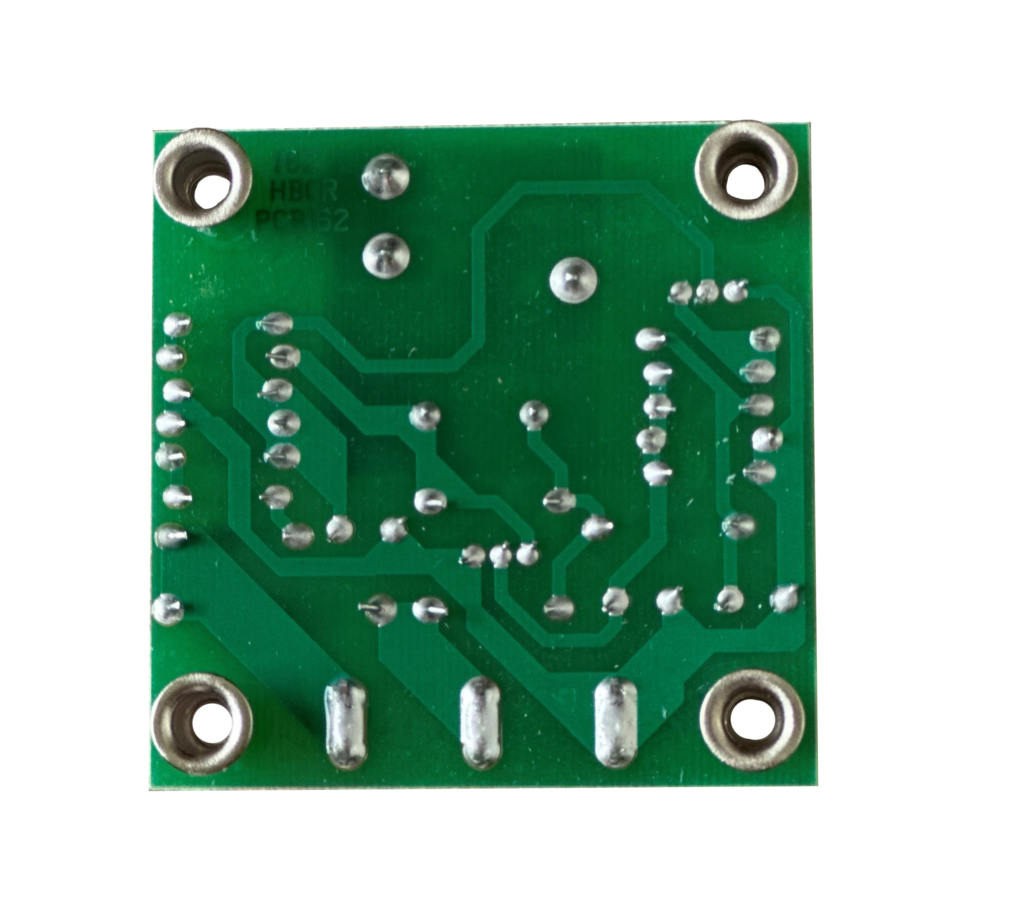

Icm Controls 255 fan blower control - dual on/off delay timer (fixed time delay) 2.5 inches x 2.5 inches

Product Description

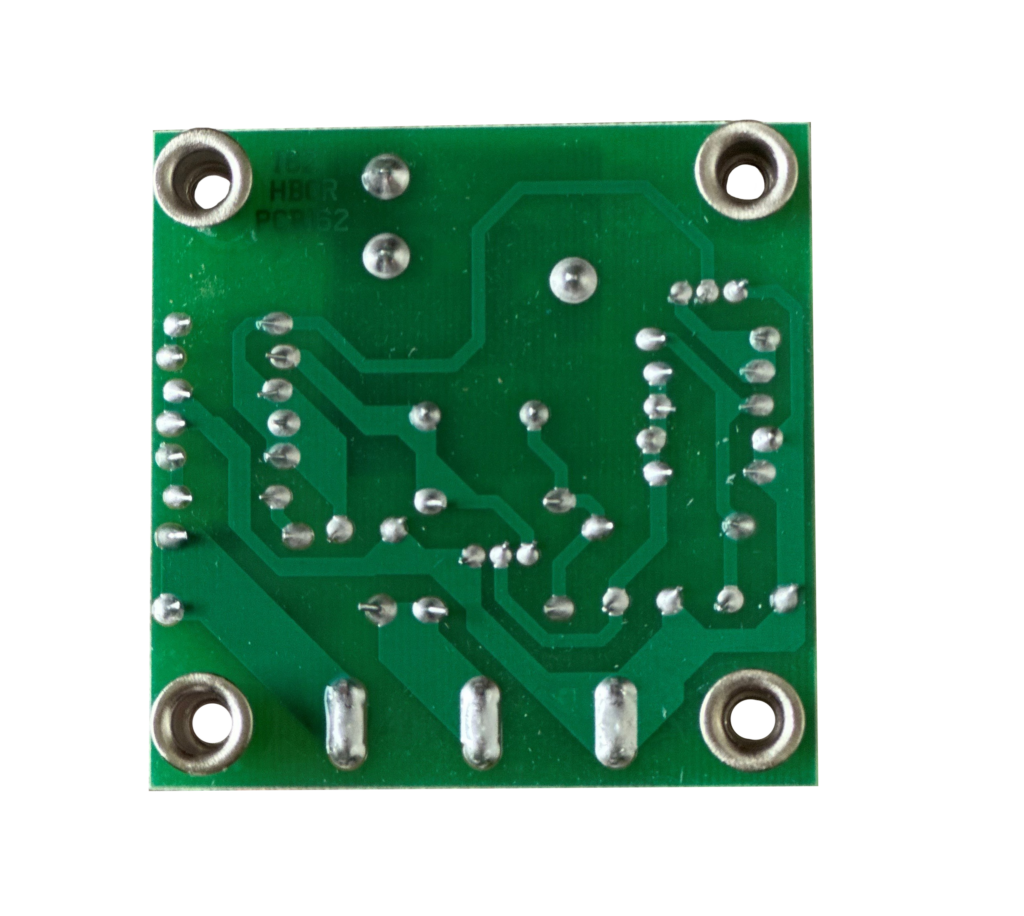

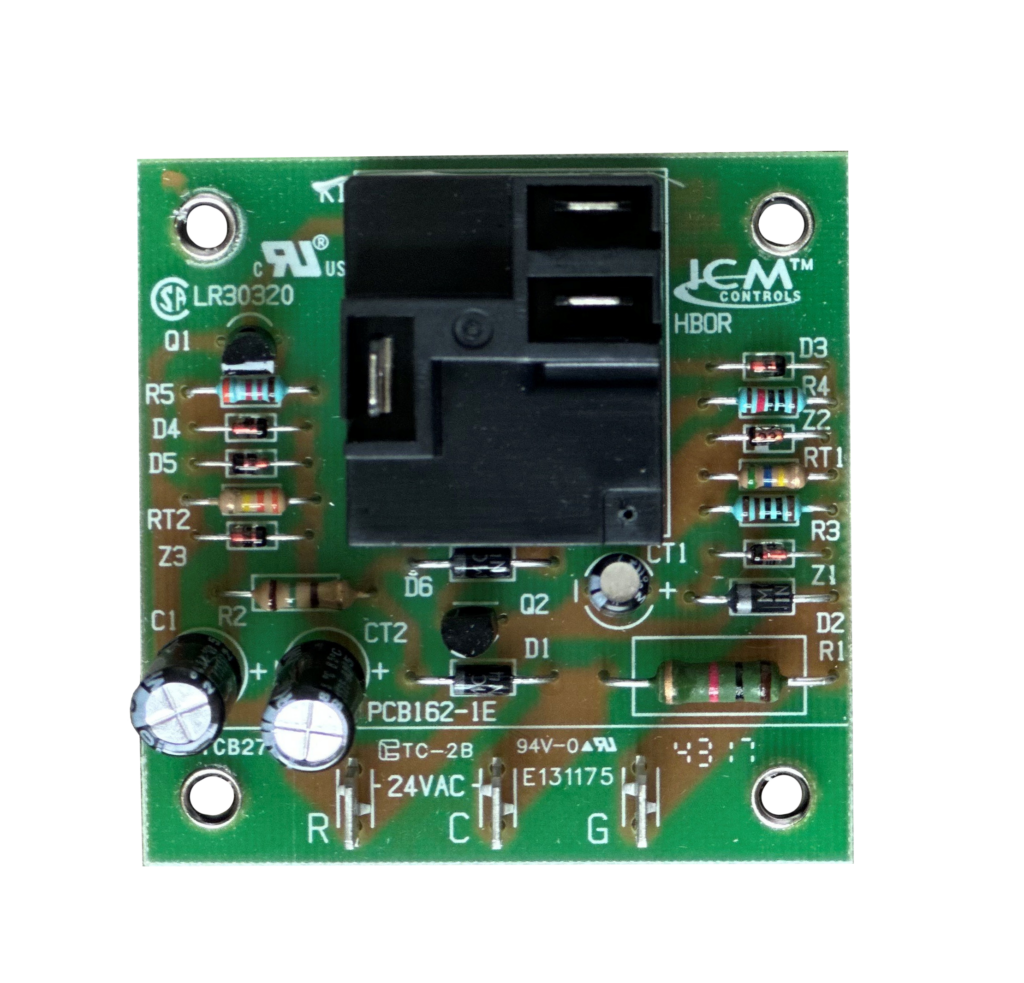

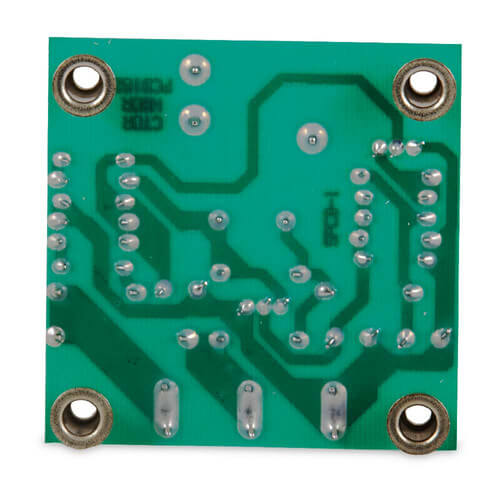

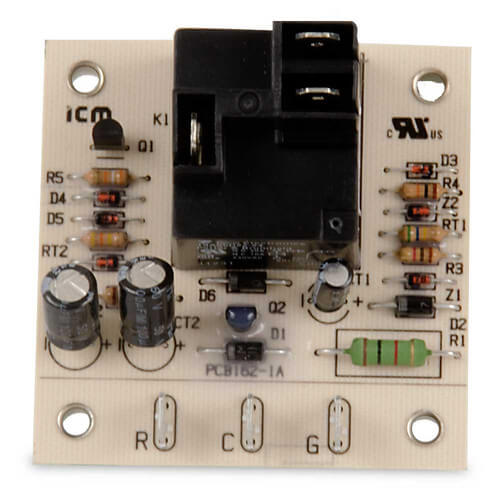

The ICM CONTROLS 255 is a dual function fan delay timer designed to control circulating fans in heat pump, air conditioning, and forced air systems. It features a fixed 1-second ON delay and a 60-second OFF delay, ensuring proper air circulation and system efficiency. This open board design operates on 18/30 VAC and handles up to 20 amps at 240 VAC for both normally open and normally closed contacts, purging ducts of residual air.

• Low cost open board design
• High power, relay output
• Controls the circulating fan in heat pump, A/C and forced air systems

Product Highlights

Dual function fan delay timer with fixed ON/OFF delays for HVAC system efficiency.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 255

Technical Specifications

• Input Voltage: 18/30 VAC
• Frequency: 50-60 Hz
• Normally Open Contact Rating: 20 amps @ 240 VAC
• Normally Closed Contact Rating: 20 amps @ 240 VAC
• ON Delay: 1 Second
• OFF Delay: 60 Seconds
