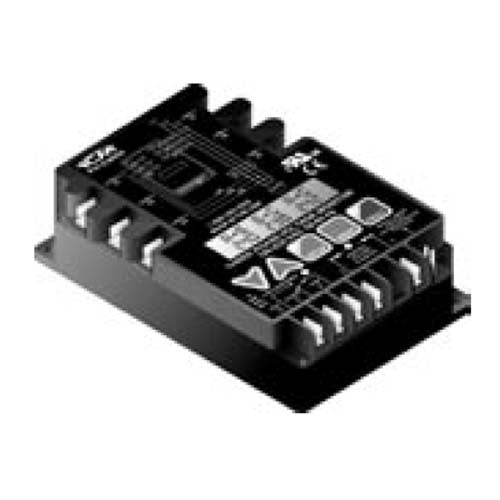

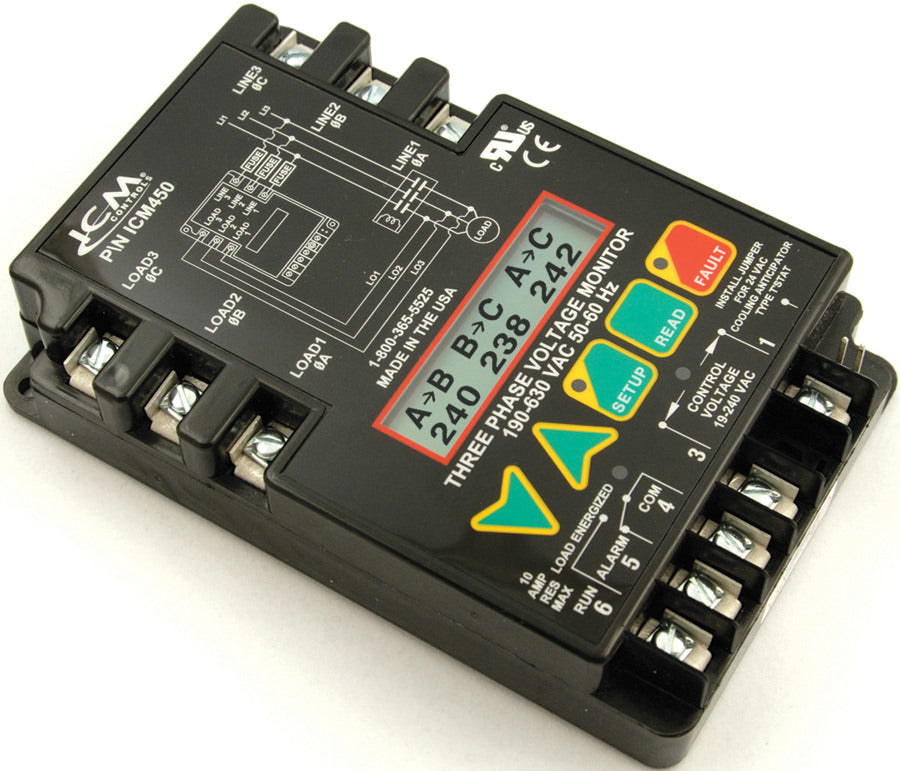

ICM CONTROLS 24-ICM450 3-Phase Line Voltage Monitor

Product Description

The ICM CONTROLS 24-ICM450 is a 3-phase line voltage monitor that safeguards motors against voltage faults. It accurately monitors 3-phase true RMS voltage. The device includes a backlit LCD to assist with setup and diagnostics. Factory calibrated, it retains fault memory for up to twenty-five faults.

• Monitors 3-phase true RMS voltage.
• Features a backlit LCD for setup and diagnostics.
• Protects against high/low voltage, voltage unbalance, phase loss, and phase reversal.

Product Highlights

This monitor simplifies configuration with adjustable variables and menu options available in English or Spanish.

Product Information

Standard Information

• Voltage Range: 277 VAC @ 10A maximum
• Frequency: 50/60 Hz

Technical Specifications

• Load Side Monitoring: Optional
• Control Voltage: 18 - 240 VAC
• Output Relay Rating: 250 VAC at 10 A
• Relay Type: SPDT
• Operating Temperature: -40°F to +149°F (-40°C to +65°C)
• Storage Temperature: -40°F to +185°F (-40°C to +85°C)
• Mounting Type: Surface mount using (2) #8 screws
• Terminations: 1/4 quick connects
• Weight: 12 ounces (341 grams)
• Communication Protocol: ModBus
