ICM CONTROLS 19-FS2-160 Thermal Switch Part 160 degrees F

Product Description

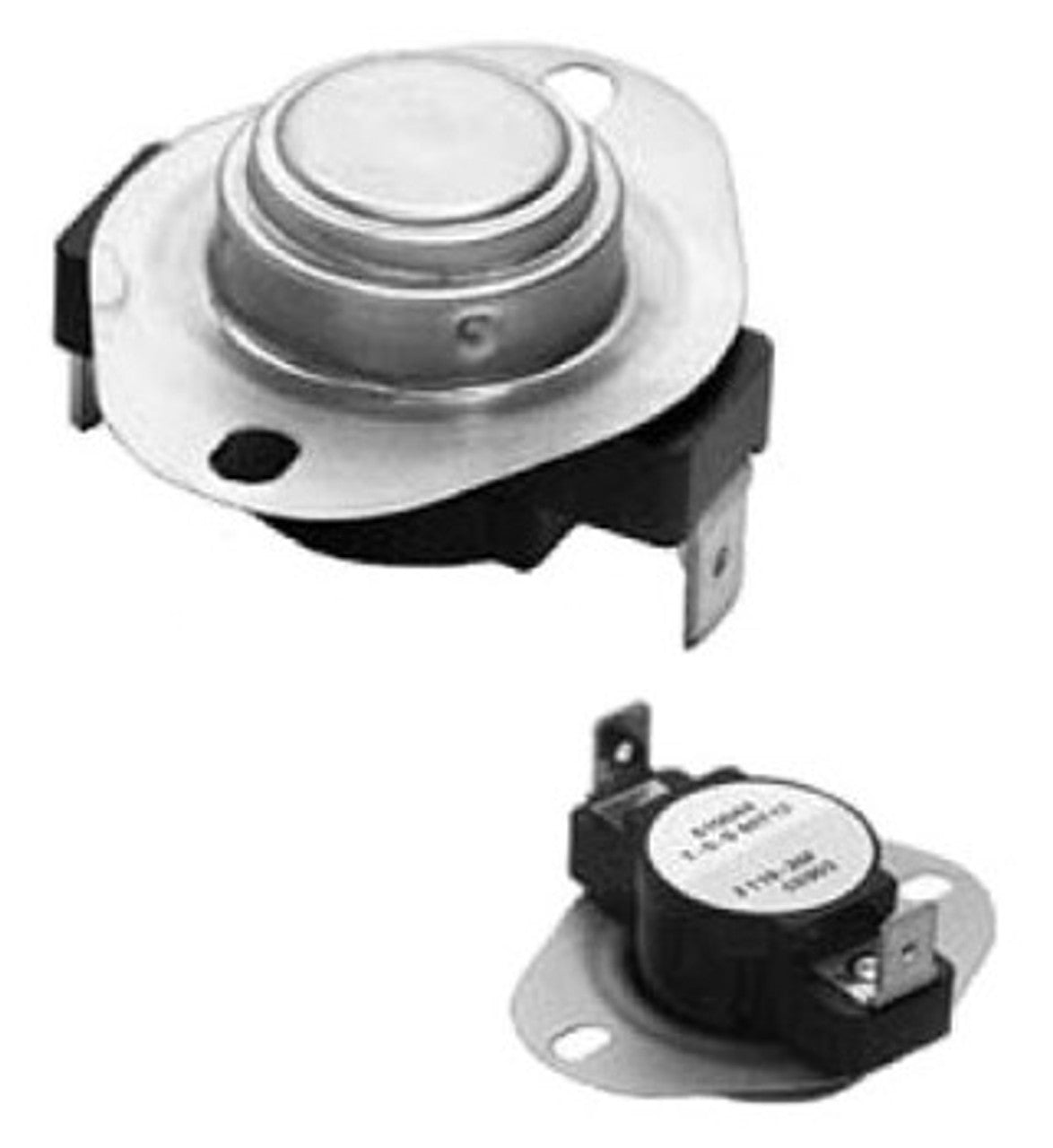

The ICM CONTROLS 19-FS2-160 is a thermal switch designed for reliable performance in furnace applications. This part opens at one hundred forty degrees Fahrenheit and closes at one hundred sixty degrees Fahrenheit. It is shaped like a three-quarter inch disk and can handle up to twenty-five amps. This switch can be integrated into furnace units that do not originally include it. Mounting the switch on the furnace housing allows the fan to activate as the temperature rises and deactivate when it cools.

• Opening Temperature: 140 degrees F
• Closing Temperature: 160 degrees F
• Simple installation with inline connection

Product Highlights

This thermal switch is essential for optimizing furnace operations, ensuring efficient heating and cooling cycles.

Product Information

Standard Information

• Brand: ICM CONTROLS
• MPN: 19-FS2-160

Technical Specifications

• Type: Thermal Switch
• Shape: Disk
• Rated Amperage: 25 Amp
• Mounting Position: Furnace housing
• Disk Size: 3/4 inch
