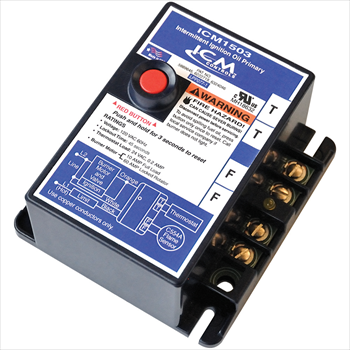

Icm Controls 1503 intermittent ignition oil primary control 120/240 VAC replaces Honeywell R8184G series

Product Description

The ICM CONTROLS 1503 is an intermittent ignition oil primary control designed for oil burner systems. It features 45-second safety timing and manages the oil burner, ignition transformer, and optional oil valve during heat calls. This control ensures safe and efficient operation by monitoring the burner flame with a solid-state flame detection circuit. It is suitable for residential oil-fired burners in boilers, furnaces, and water heaters, and replaces Honeywell R8184G series models.

• Controls oil burner, ignition transformer, and optional oil valve during heat calls.
• Features a solid-state flame sensing circuit for accurate flame monitoring.
• Integrated 45-second safety timing with an external reset button.

Product Highlights

Direct replacement for Honeywell R8184G and Carlin 48245 models, ensuring compatibility and ease of upgrade.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 1503
• Country of Origin: United States

Technical Specifications

• Ignition Type: Intermittent Timing
• Safety Timing: 45 seconds
• Mounting: Standard 4x4 J-Box or direct mounting on burner housing
• Full Load Electrical Rating: 7.4 A @ 120 VAC, 3.7 A @ 240 VAC
• Locked Rotor Electrical Rating: 44.4 A @ 120 VAC, 22.2 A @ 240 VAC
• Operating Temperature Range: -30°F to 130°F
• Approvals: UL Approved
• Product Type: Burner Control
