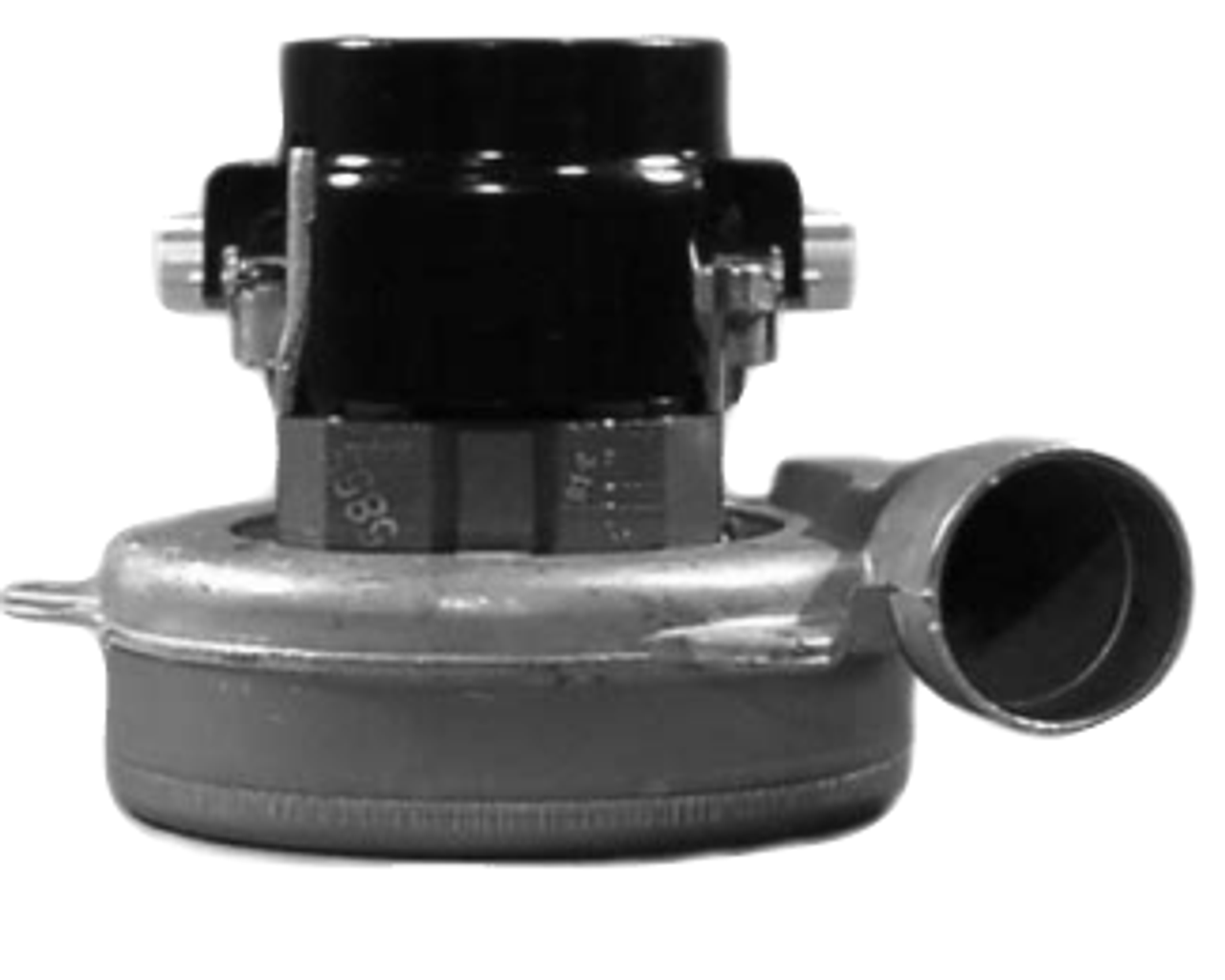

ICM CONTROLS 116765-00 Lamb Ametek Vacuum Motor

Product Description

The ICM CONTROLS 116765-00 is a vacuum motor made by Ametek Lamb. This model is a 3-stage bypass tangential vacuum motor. It is suitable for many uses such as central vacuum systems, industrial vacuums, and blowers. It runs on 120 volts and features aluminum construction for both the fan end and commutator brackets.

• Operates at 120 volts and 13.1 amps
• Designed for clean, dry, filtered air
• Recommended brush change after 300 to 500 hours

Product Highlights

This vacuum motor is designed for efficiency and durability. It can effectively handle various tasks in vacuum systems.

Product Information

Standard Information

• Model: 116765-00
• Voltage: 110-120V

Technical Specifications

• Amps: 13.1
• Stages: 3
• Diameter: 5.7 inches
• Waterlift: 136
• CFM: 95
• Airwatts: 465
• Fan System: 3 stage
• Motor Type: Tangential bypass discharge
• Construction: Fan end Bracket: Aluminum, Commutator Bracket: Aluminum
