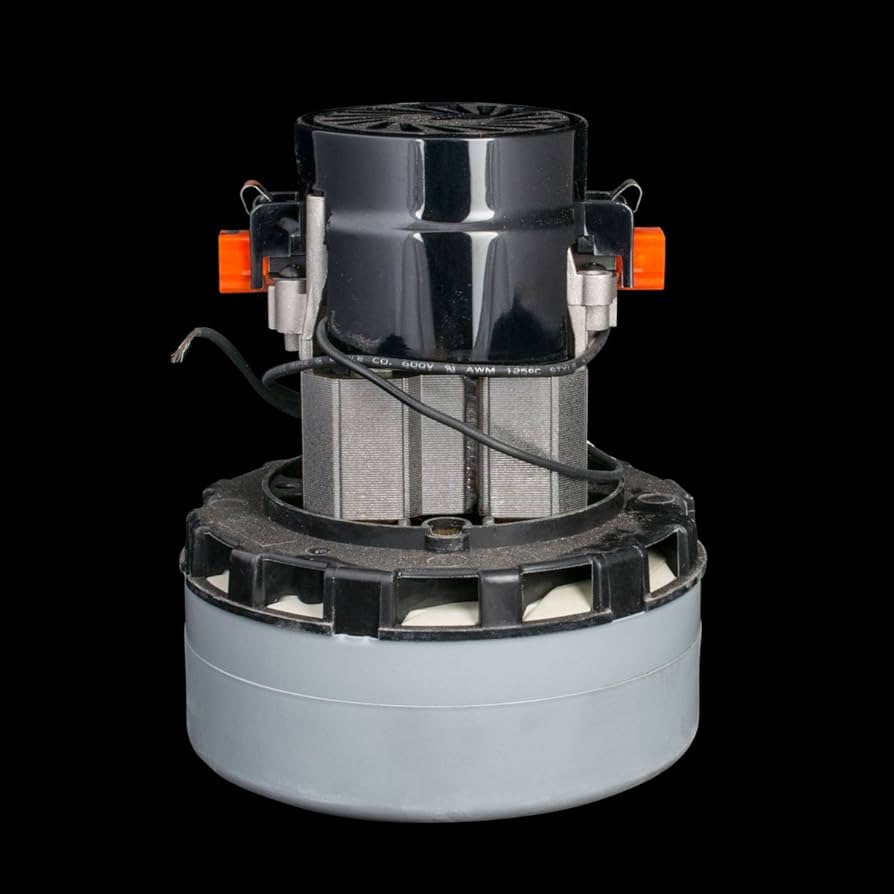

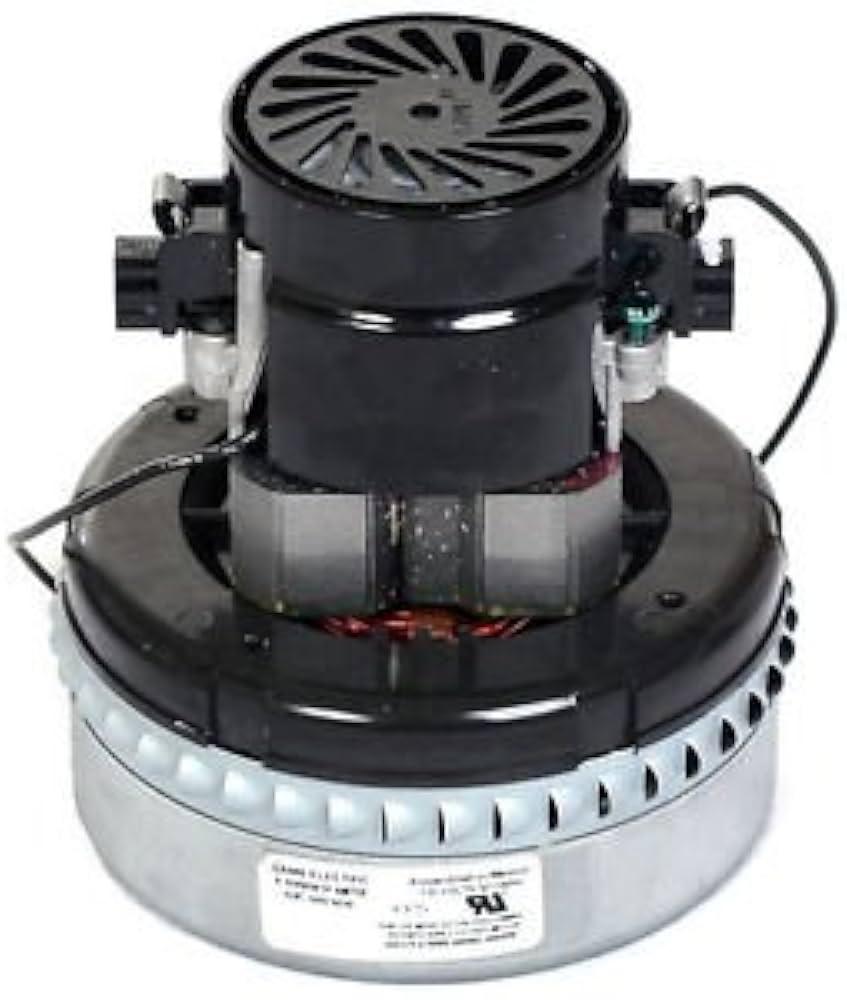

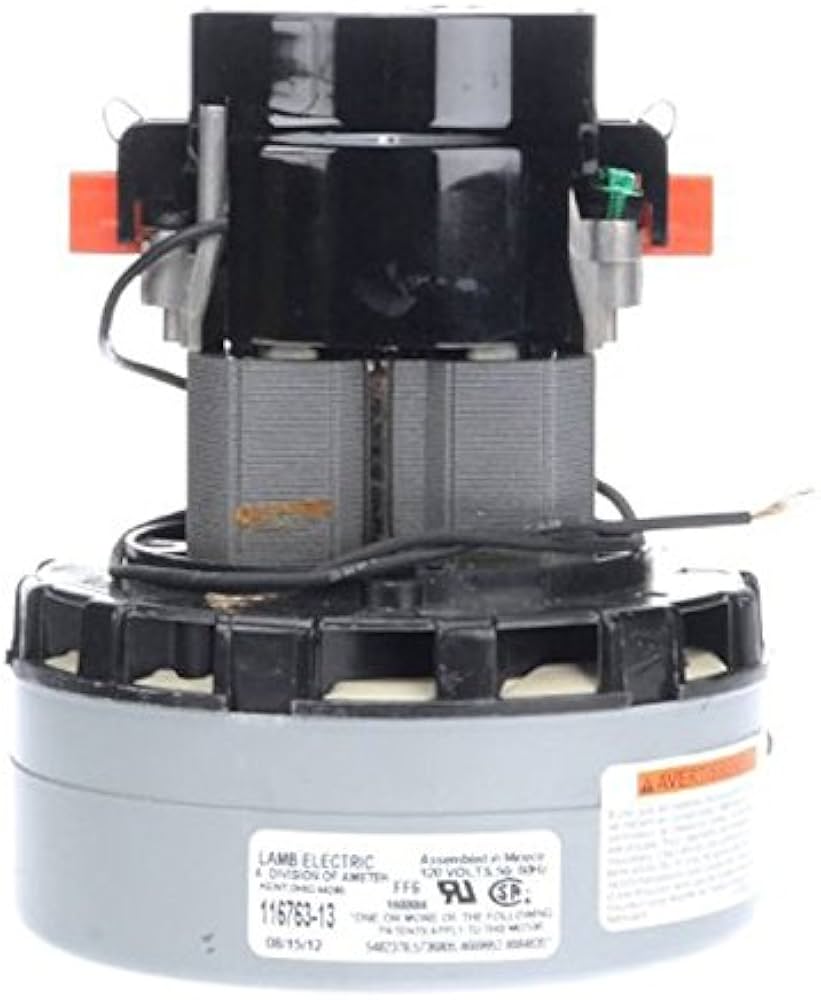

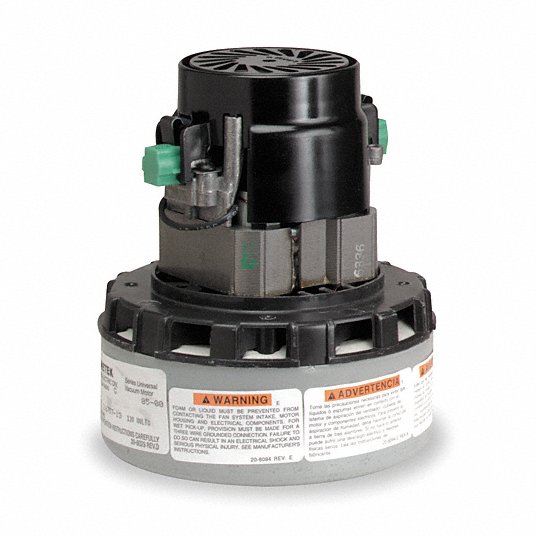

ICM Controls 116763-13-CL Blower/Vacuum Motor

Product Description

The ICM Controls 116763-13-CL is a two-stage blower and vacuum motor suitable for multiple applications. It is commonly used in car wash vacuums, central vacuum systems, commercial floor care equipment, and household vacuums. This motor has a diameter of five point seven inches and operates on a voltage range of one hundred ten to one hundred twenty volts. The design includes a peripheral bypass discharge and double ball bearings for improved durability and performance. This motor also utilizes ACUSTEK low-noise technology to reduce operational noise, making it ideal for environments sensitive to sound.

• Two-stage motor design
• Equipped with double ball bearings
• Features ACUSTEK low-noise technology

Product Highlights

Product Information

Standard Information

• Brand: ICM Controls
• MPN: 116763-13-CL

Technical Specifications

• Stages: 2
• Diameter: 5.7 inches
• Voltage: 110-120V
• Air Watts: 387
• CFM: 110
• Water Lift: 107.1 inches
• Motor Type: Bypass
• Discharge: Acustek
• Bearings: Double Ball Bearing
• Motor Speed: 21,110 RPM
• Hertz: 50-60
