ICM Controls 116118-00-CL Lamb Ametek Vacuum Motor 120V

Product Description

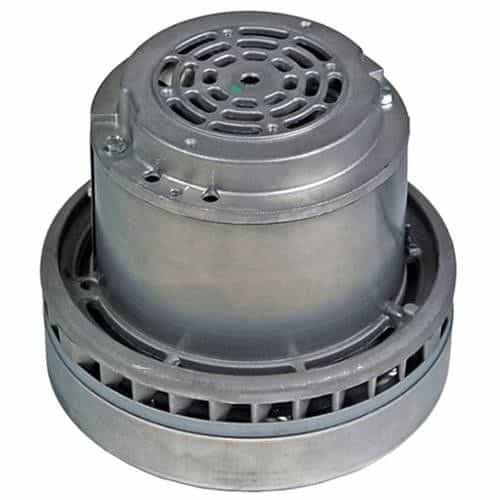

The ICM Controls Lamb Ametek 116118-00 is a vacuum motor designed for optimal air separation. This vacuum motor operates at 120V and has a frame size of seven point two inches. It features a three-stage design, operating at a single speed to efficiently manage clean, dry, and filtered air. The peripheral bypass discharge design allows for effective separation of working air from the motor's ventilating air.

• Designed for environments needing clean air
• Robust construction with double ball bearings
• Max airflow of one hundred five cubic feet per minute

Product Highlights

This motor is built for reliability with industrial-grade materials, ensuring a long lifespan across various applications.

Product Information

Standard Information

• Product Type: Vacuum Motor
• Frame Size: Seven point two inches

Technical Specifications

• Stages: Three
• Speed: One
• Voltage: One hundred twenty VAC
• Max Amps: Ten Amps
• Motor Speed: Nineteen thousand four hundred fifty RPM
• Maximum Air Flow: One hundred five CFM
• Sealed Vacuum: One hundred thirty-one point four inches
• Maximum Air Watts: Four hundred forty-seven
