Icm Controls 102 Delay-On-Make Timer 18-240 Vac 1.25 inches Height 2 inches Width 2 inches Length

Product Description

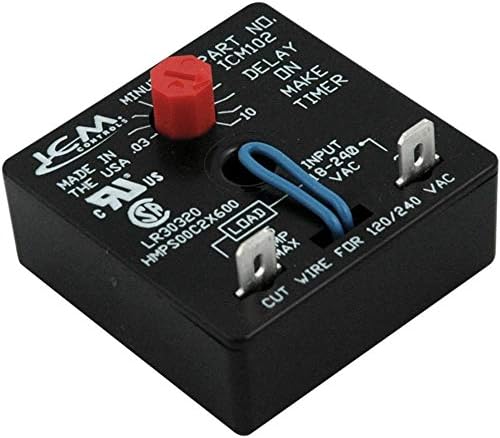

The ICM Controls ICM102 is a delay-on-make timer designed for universal voltage operation from 18-240 VAC. This device features a knob-adjustable time delay ranging from 0.03 to 10 minutes, making it suitable for various applications. It supports a maximum output current of 1.5 Amps and a minimum of 40 mAmps, with an inrush current of 15 Amps. Its compact design measures 1.25 inches in height, 2 inches in width, and 2 inches in length.

• Universal voltage operation (18-240 VAC)
• Higher 1.5 amp power rating with knob-adjustable time delays (0.03-10 minutes)
• Compatible with anticipator-type thermostats

Product Highlights

Versatile delay-on-make timer for HVAC and other control applications.

Product Information

Standard Information

• Brand: ICM CONTROLS
• Manufacturer Part Number: 102
• Country of Origin: United States

Technical Specifications

• Input Voltage: 18-240 VAC
• Input Frequency: 50/60 Hz
• Output Current Maximum: 1.5 Amps
• Output Current Minimum: 40 mAmps
• Output Current Inrush: 15 Amps
• Time Delay Range: 0.03-10 minutes adjustable
