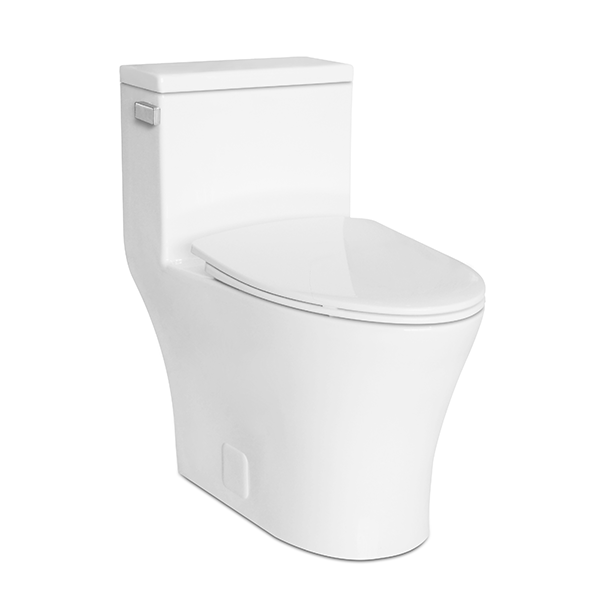

Icera C-6690.01 Muse II One-Piece Toilet 1.28 gpf (Compact-Elongated)

Product Description

The Icera C-6690.01 is a Muse II one-piece toilet made of vitreous china with a compact-elongated, chair-height (16-1/2") bowl and a fully skirted trapway. It features Icera's Rimless Wash with twin jets and the EcoQUATTRO high-efficiency gravity flush at 1.28 gallons per flush (WaterSense compliant). The design includes an oversized 3" flush valve, a fully glazed 2-1/8" trapway, a soft-close quick-release seat, and a side-mounted polished chrome trip lever.

• EcoQUATTRO high-efficiency gravity flush, 1.28 gallons per flush (WaterSense compliant) with rimless wash and twin jets
• Oversized 3" flush valve and fully glazed 2-1/8" siphon-jetted trapway to reduce clogging
• One-piece vitreous china construction with fully skirted trapway, included soft-close quick-release seat, bolt cover tiles, and solid metal side trip lever

Product Highlights

Chair-height compact-elongated one-piece toilet; 1.28 gpf WaterSense compliant; rimless wash with twin jets; 3" flush valve and 2-1/8" trapway; soft-close quick-release seat.

Product Information

Standard Information

• Brand: ICERA
• Manufacturer Part Number: C-6690.01
• Country of Origin: China

Technical Specifications

• Brand: Icera
• Model Number: C-6690.01
• Collection: Muse II
• Product Type: One-piece toilet
• Material: Vitreous china
• Bowl Shape: Compact-elongated
• Bowl Height: Chair-height 16-1/2" (420 mm)
• Dimensions (W x L x H): 15-5/8" x 27-1/2" x 29-3/8"
• Rough-in: 12 inches (305 mm)
• Installation: Floor mount
• Seat Included: Yes (soft-close, quick-release slim seat)
• Seat Features: Soft-close; Quick-release; Silent Close
• Flush Volume: 1.28 gallons per flush (4.8 L) - WaterSense compliant
• Flush System: EcoQUATTRO high-performance gravity flush; Rimless Wash with twin jets
• Flush Valve: Oversized 3" flush valve
• Trapway: Fully glazed 2-1/8" internal trapway; fully skirted trapway with bolt cover tiles
• Trapway Size: 2-1/8"
• Rim: Rimless wash with twin jets
• Water Surface Area: 9 x 7 inches
• Trip Lever: Solid metal side trip lever (polished chrome)
• Accessories Included: Seat and cover; bolt cover tiles (set of 2); solid metal trip lever; installation guide
• Factory Testing / Performance: MaP score 1000g; 100% factory flush tested
• UPC: 847637006988
