Icc ICRESVPA3C 8-Port RJ-31X Telephone Expansion Module

Product Description

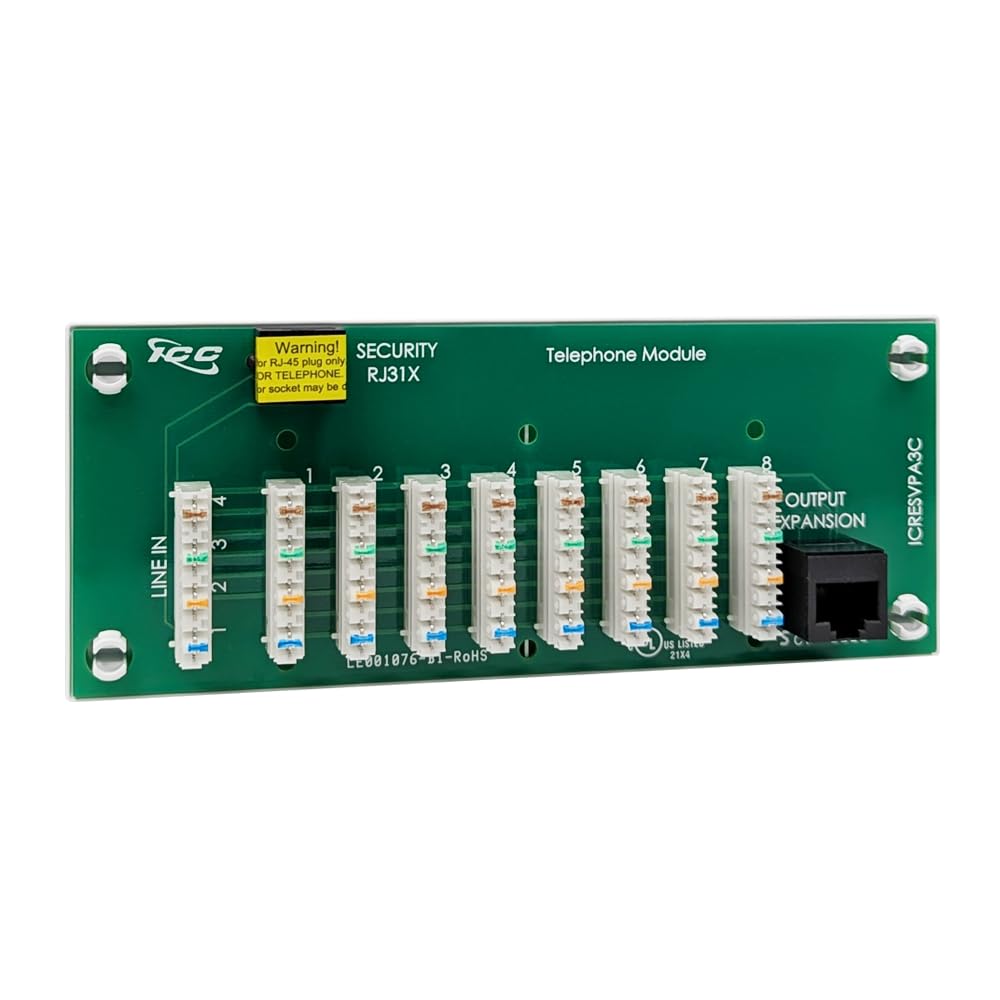

The ICC ICRESVPA3C 8-Port RJ-31X Telephone Expansion Module supports up to 4 incoming telephone lines with 8 outputs/extensions. Designed with a printed circuit board for reliability, it includes standard RJ-31X connections. It distributes incoming lines to multiple locations and is ANSI/TIA-568-C and UL1863 compliant.

• Supports up to 4 incoming telephone lines with 8 outputs/extensions.
• Includes an RJ-31X jack connected to line 1 for a security system.
• Fits all ICRESDC 14", 21" and 28" residential distribution center enclosures.

Product Highlights

Reliable telephone expansion module with RJ-31X, supporting multiple lines and security integration.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: ICRESVPA3C
• Country of Origin: China

Technical Specifications

• Brand Name: ICC
• Manufacturer: ICC
• Product Name: Compact Module, Telephone, 8-Port W/RJ31
• Product Type: Phone Patch Panel
• ADI Part Number: H2-RESVPA3C
• Package Contents: Compact Module, Telephone, 8-Port W/RJ31 Expansion Jack Installation Instructions RJ31X Jack 1 x Warning Label 4 x Locking Button
• Number of RJ-11 Ports: 10
• Total Number of Ports: 10
• Manufacturer Part Number: ICRESVPA3C
• Certifications & Standards: UL
• Width: 6.5"
• Material: Gold,Phosphor Bronze
• Module Type: 8-Port Voice Module with RJ-31X – PCB
• Connectivity: Voice
• Style: PCB
• RJ-31X: With RJ-31X
• Ports: 8
• Packaging: Single
• 8 Port Telephone Module with RJ31X Jack: PCB: Glass Epoxy FR-4 copper clad, t=1.20mm
• 110 Block: Housing: PC, UL 94V-0 IDC: Phosphorous Bronze, Tin Plated
• RJ45 and RJ31X Jack/Socket: Housing: PBT 15% Fiber Glass Contact: Phosphorous Bronze, 50u” Gold Plated
• Wiring in Accordance with: T568A Standard
• Locking Button: Material: Nylon 6/6, UL 94V-0
• Number of Ports: 8
• Front Port Connection: RJ31
• Patch Panels: Horizontal
• Environmental Features Energy Star Qualified: No
• Recycled Packaging: No
• RoHS Compliant: Yes
• Type of Packaging: Plastic Bag
• Incoming Lines: 4
• Outgoing Extensions: 8 (expandable to 32)
• Expansion Capability: Connects to ICRESVPB10
• Compatibility: Works with ICREDSDC enclosures
• Installation: Instructions included
• Safety Certification: UL Listed
• Manufacturer Compatibility: Most major manufacturers
• Model: ICRESVPA3C
• UPC: 633758029001
