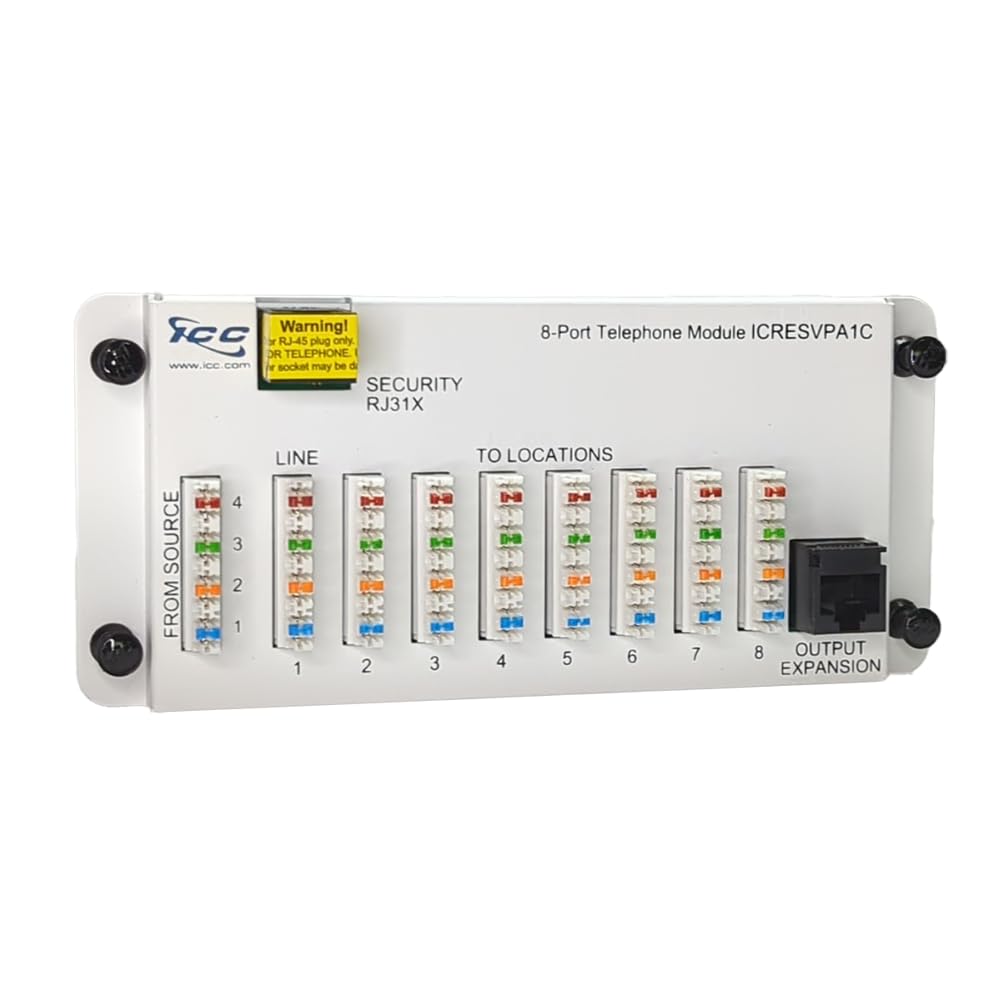

Icc ICRESVPA1C Telephone Expansion Module with Steel Bracket in RJ-31X and Ports

Product Description

The ICC ICRESVPA1C Telephone Module with RJ31X Jack is an 8-port bridged telephone solution. It offers a 110 IDC input for extensions and phone lines, plus an expansion jack for connectivity. Supporting up to 8 telephone outlets for phone, fax, and modem devices, it allows access to 4 incoming phone lines.

• Designed to support up to 4 incoming telephone lines with 8 outputs/extensions per line.
• Module bridged using only 2 incoming lines can get 16 outputs/extensions per line.
• 1 incoming line can get 32 outputs/extensions.

Product Highlights

This telephone expansion module is ideal for distributing telephone lines in residential structured wiring applications.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: ICRESVPA1C
• Country of Origin: China

Technical Specifications

• Brand Name: ICC
• Manufacturer: ICC
• Product Name: ICRESVPA1C Interactive Phone Module
• Product Type: Modules
• Compatibility: Fits all ICRESDC 14", 21", 26" AND 42" resi distribution center enclosures with the 4 locking buttons
• Product Model: ICRESVPA1C
• ADI Part Number: H2-RESVPA1C
• Package Contents: ICRESVPA1C Interactive Phone Module Installation Instructions
• Environmentally Friendly: Yes
• Manufacturer Part Number: ICRESVPA1C
• Environmental Certification: ROHS
• Width: 6.5"
• Material: CRS,Gold,Phosphor Bronze
• Module Type: 8-Port Voice Module with RJ-31X – Metal Bracket
• Connectivity: Voice
• Style: Metal Bracket
• RJ-31X: With RJ-31X
• Ports: 8
• Packaging: Single

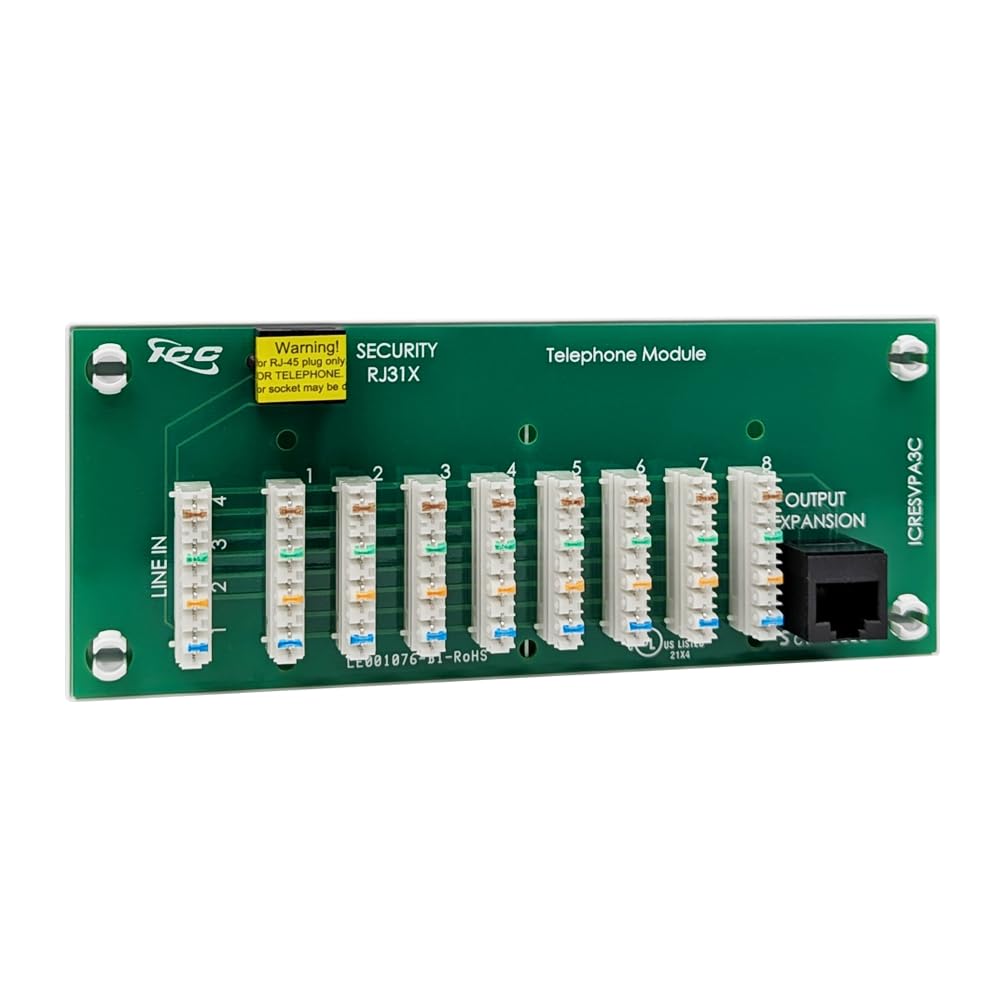

• 8-Port Telephone Module with RJ31X Jack: PCB: Glass Epoxy FR-4 copper clad, t=1.20mm
• 110 Block: Housing: PC, UL 94V-0
• 110 Block: IDC: Phosphorous Bronze, Tin Plated
• RJ45 and RJ31X Jack/Socket: Housing: PBT 15% Fiber Glass
• RJ45 and RJ31X Jack/Socket: Contact: Phosphorous Bronze, 50u Gold Plated
• Wiring: In Accordance with T568A Standard
• Bracket: Material: 18 GA CRS
• Bracket: Surface Finish: White Powder Coat
• Locking Button: Material: Nylon 6/6, UL 94V-0
