Icc ICRESDPA1C data module premier series CAT5e 8-port

Product Description

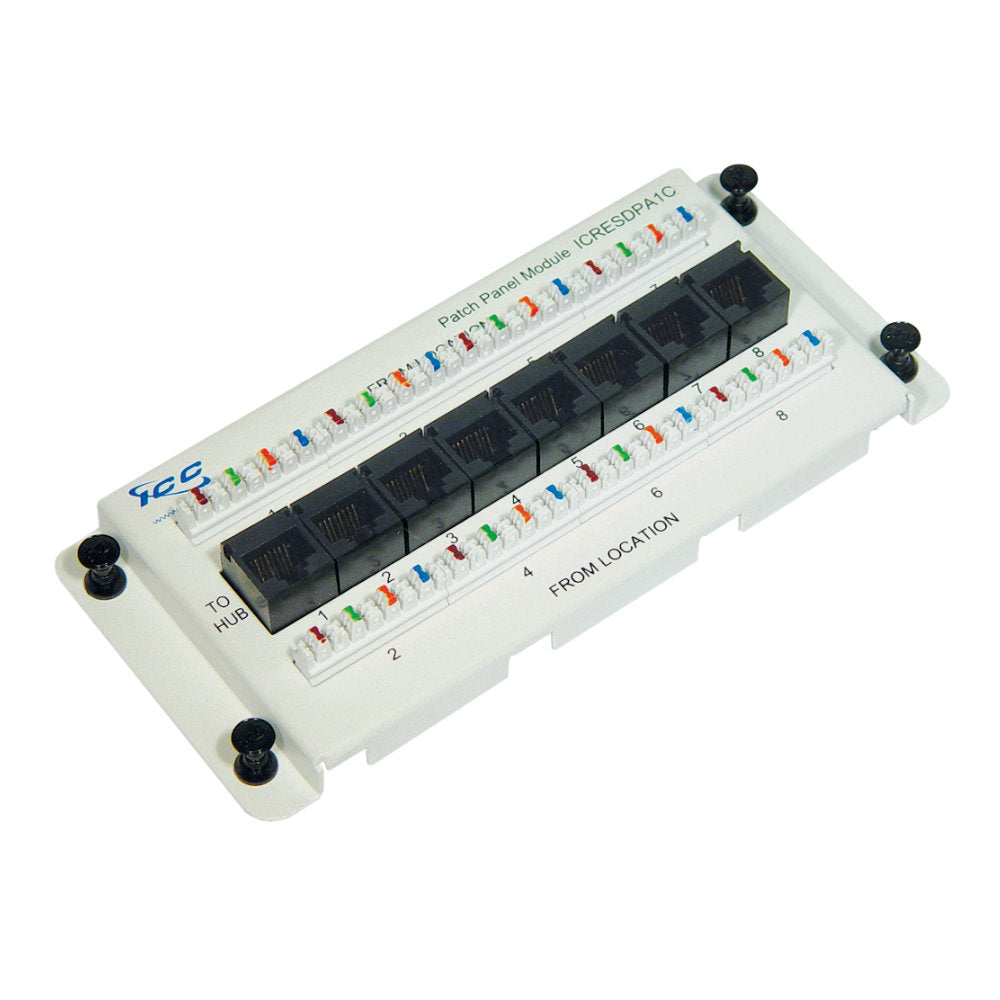

The ICC ICRESDPA1C Premier CAT 5e data module provides broadband internet access for up to eight computers. Integrated with a non-bridged CAT 5e data board with eight standard 4-pair 110 IDC connectors, it exceeds TIA/EIA-568-B.2 industry standards. UL listed with steel bracket construction, it fits ICC's Net.Media Centers with a push-pin design for easy installation.

• Supports up to 8 Category 5e data lines.
• Wired in accordance with T-568-A Standard for residential use.

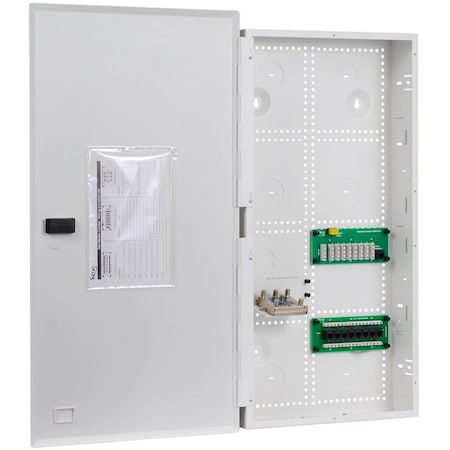

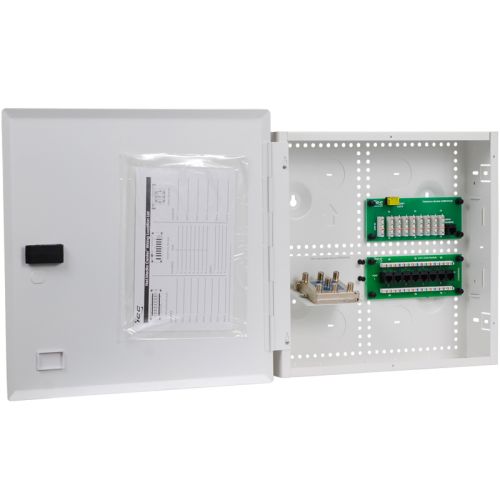

• Fits all 14", 21", and 28" Net Media Centers.

Product Highlights

The ICC CAT5e data module supports up to 8 Ethernet lines through IDC punch-down ports. Meeting CAT5e standards, this UL Listed module delivers safe and reliable residential networking.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: ICRESDPA1C
• Country of Origin: China

Technical Specifications

• Brand Name: ICC
• Manufacturer: ICC
• Product Name: Resi Module, Cat 5e Data, 8-Port
• Product Type: Network Patch Panel
• Product Series: Premier
• Cable Types Supported: Cat5e
• ADI Part Number: H2-RESDPA1C
• Package Contents: Resi Module, Cat 5e Data, 8-Port 1 x Bracket 4 x Locking Button
• Additional Information: 8 x 110 Network
• Manufacturer Part Number: ICRESDPA1C
• Number of Network (RJ-45) Ports: 8
• Depth: 0.9"
• Width: 6.5"
• Height: 2.9"
• Material: CRS
• IDC: Phosphorous Bronze, Tin Plated
• PCB: Glass Epoxy FR-4 copper clad t=1.20mm
• Ports: 8
• Style: Metal
• Contact: Phosphorous Bronze, 50u Gold Plated
• Housing: PBT 15 % Fiber Glass, PC, UL 94V-0
• Connectivity: CAT5e
• Surface Finish: White Powder Coat
• Locking Button Material: Nylon 6/6, UL 94V-0
• Wiring: In Accordance with TIA 568A Standard
• Rating: CAT5e Rated
• Front Port Connection: Cat5e
• Patch Panels: Horizontal
• RoHS Compliant: Yes
• Category: Cat 5e
• Connector Type: 4-pair 110 IDC
• Standards Compliance: TIA/EIA-568-B.2
• Installation Type: Push-pin design for easy installation
• UL Listed: Yes
