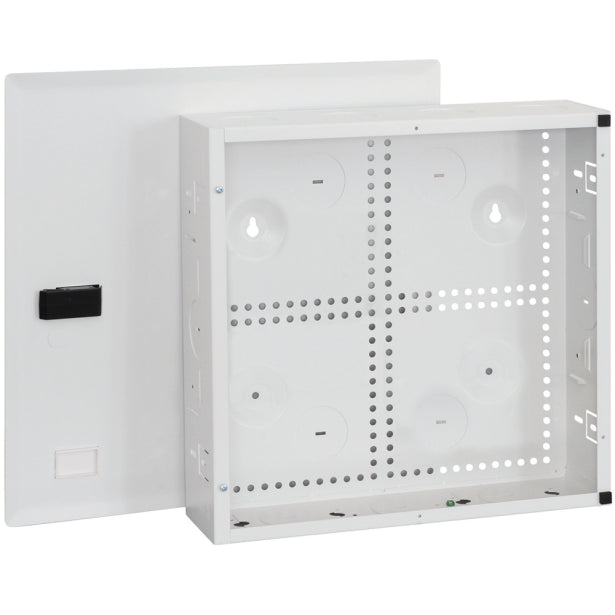

Icc ICRESDC14E Net Media Center, 14 inches, Empty Enclosure

Product Description

The ICC ICRESDC14E Net Media Center is the ideal solution for managing structured cabling in residential setups. It combines lightweight and sturdy steel construction with a versatile design, allowing for easy installation and access management. It is suitable for homes and multi-unit buildings.

• Designed with steel construction, white powder coated, lightweight and sturdy
• Integrated snap-in module system enables users to quickly insert or move the internal modules
• Supports up to 4 ICCMSCMPT1 or ICCMSCMPT2 Cable Management Rings for organizing and routing cables

Product Highlights

This media center includes knockouts for cable routing and an optional AC power outlet. It fits between 16" wall studs with 8 internal module mounting spaces or can be wall mounted.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: ICRESDC14E

Technical Specifications

• SKU: ICRESDC14E
• Manufacturer: ICC
• UPC/EAN Code: 633758023276
• Condition: New
• NDAA Compliance: No
• Category: Media Enclosures
• J-Hook Size: 14"
• Part#: ICRESDC14E
• Designed with: steel construction, white powder coated, lightweight and sturdy
• Application: Designed to serve as the central distribution point for voice, data, video, audio, and security services for smaller residential structured wiring systems
• Module Mounting: Allows for internal modules to be mounted horizontally or vertically facilitating easier layout and wiring of the system, while providing for optimum cable management
• Module System: Integrated snap-in module system enables users to quickly insert or move the internal modules
• Cable Management: Supports up to 4 ICCMSCMPR1 or ICCMSCMPR2 Cable Management Rings for organizing and routing cables
• Knockouts: Includes 4 top, 3 bottom, 4 rear, and 2 side knockouts for routing cables and 4 cable tie points
• Power Outlet: Includes a knockout for an optional AC power outlet (not included) to provide power distribution
• Mounting: Fits between 16” wall studs with 10 internal module mounting spaces or can be wall mounted
• Door: Designed with a door latch and an optional door lock knockout
• Hinge: Hinged door and NET MEDIA CENTER insert are reversible for opening from left or right
• Modules: Accommodates all of ICRESXXXXX residential modules
• Accessories: Used with optional accessories including ICRDSDCAC2 distribution center rubber grommets, ICRESDCAC3 distribution center plastic grommets, and ICRDSDC2LK distribution center door lock
• Flush Mounted Door: Flush mounted door overlaps ¾" to conceal any uneven drywall cuts around the enclosure.
• UL: UL listed
• Product Type: Audio/Video Patch Panel
• Manufacturer Part Number: ICRESDC14E
• Manufacturer Website Address: http://www.icc.com
• Form Factor: Wall Mountable
• Brand Name: ICC
• Height: 14"
• Width: 14.3"
• Depth: 3.7"
• Environmental Compliance: Restriction of Hazardous Substances (RoHS)
• Environmentally Friendly: Yes
