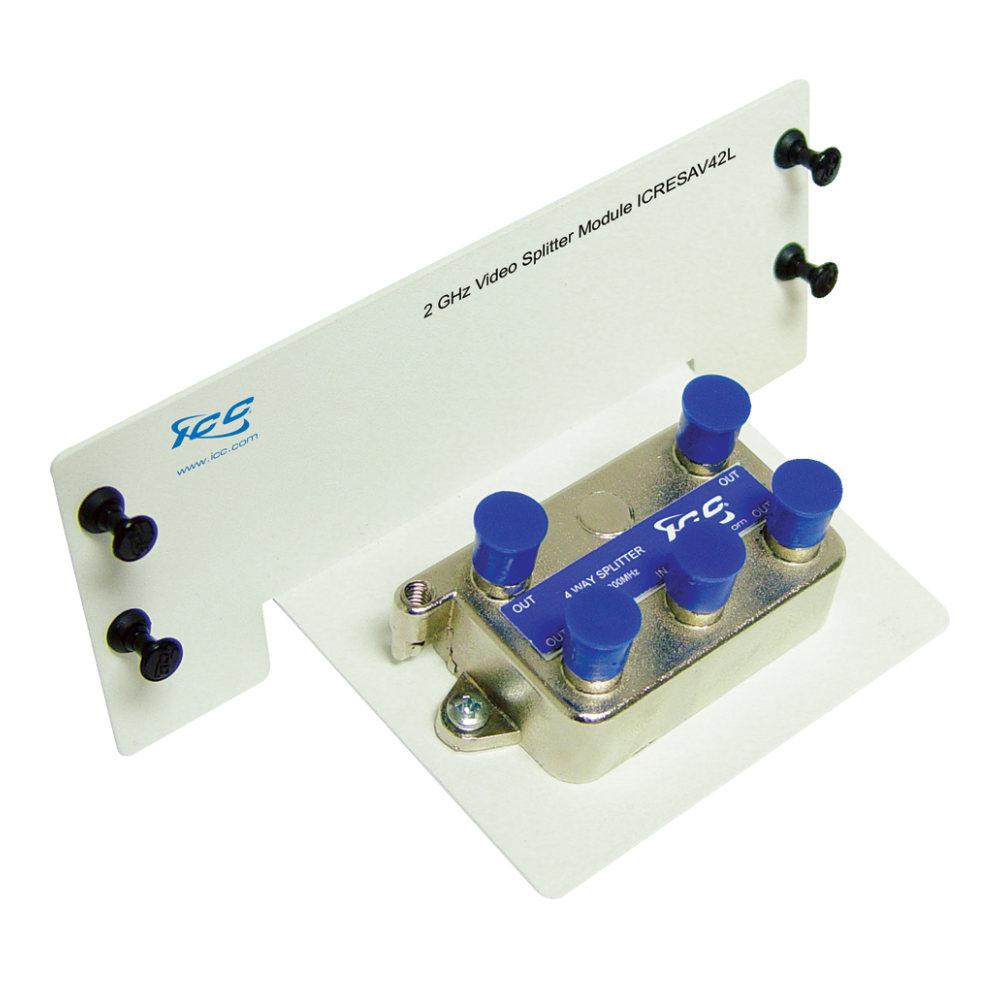

Icc ICRESAV42L 2ghz video splitter module, 4-port

Product Description

The ICC ICRESAV42L 2GHz Video Splitter supports up to four locations and is designed for installation in ICC's Net.Media Centers. This signal splitter receives and distributes CATV, antenna, satellite, or modulated video signals for up to four analog or digital television sets. It is ideal for splitting HDTV, UHF/VHF, antenna, or security system signals.

• Splits CATV and other signals for use with multiple devices.
• Supports up to 2.30 GHz frequency.
• Designed for splitting HDTV, satellite, cable, UHF/VHF, antenna, or security system signals.

Product Highlights

The ICC ICRESAV42L video splitter module provides reliable performance for residential video distribution. It features F-type female connectors for quick coaxial connections and installs inside ICC structured wiring enclosures.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: ICRESAV42L
• Country of Origin: China

Technical Specifications

• Brand Name: ICC
• Manufacturer: ICC
• Product Name: 2 Ghz 1x4 Video Splitter
• Product Type: Signal Splitter
• Product Model: ICRESAV42L
• Connector Type: F Connector
• ADI Part Number: H2-RESAV42L
• Package Contents: 2 Ghz 1x4 Video Splitter 1 x Mounting Bracket 4 x Locking Button
• Connector Details: 4 x F Connector
• Packaged Quantity: 1
• Manufacturer Part Number: ICRESAV42L
• Width: 6.5"
• Gender: Female
• Length: 2.8"
• Material: CRS, Die-cast Metal, Nylon
• Number of Ports: 6
• Item model number: Video 4P
• Style: Video 4 Port
• Frequency Range: 5~2300 MHz
• Insertion Loss: 11 dB Typical
• Mounting Bracket Material: 18 GA CRS
• Surface Finish: White Powder Coat
• Locking Button Material: Nylon 6/6, UL 94V-0
• UL Rated: Yes
• Depth: 2.55 in
• Height: 2.86 in
