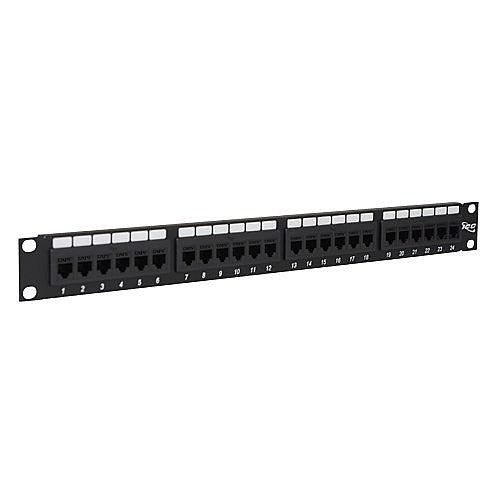

Icc ICMPP24CP5 Cat5e Feed-through Patch Panel 24 Port

Product Description

The ICC ICMPP24CP5 is a 24-port, feed-through patch panel rated for Category 5e structured cabling installations. Unlike punch-down panels, feed-through designs accept RJ45 patch cables on both the front and rear ports, allowing direct pass-through connections without termination tools. This panel mounts in a standard 1U rack space and is suited for data centers, server rooms, telecom closets, and commercial or residential low-voltage network infrastructure. Network technicians and low-voltage cabling contractors are the primary installers. The feed-through design simplifies moves, adds, and changes in high-turnover environments where re-termination time is a cost factor.

The ICMPP24CP5 is designed for horizontal cable management in 19-inch EIA-standard equipment racks and patch enclosures. It supports Cat5e performance requirements across all 24 ports, making it appropriate for 10/100 and Gigabit Ethernet applications. Typical deployment scenarios include structured cabling distribution frames in commercial office builds, school network closets, and light industrial data infrastructure where a toolless, modular patch solution is required.

Key Features

• Feed-through RJ45 design eliminates punch-down termination on both front and rear ports
• 24 ports provide high-density connectivity in a single 1U rack space
• Cat5e rated to support 10/100 and Gigabit Ethernet performance standards
• 1U rack-mount form factor fits standard 19-inch EIA equipment racks and enclosures
• Toolless installation speeds up initial deployment and future moves, adds, and changes

Compatibility

Designed as an OEM-style feed-through patch panel for use in standard 19-inch EIA rack enclosures supporting Cat5e structured cabling infrastructure.

Installation Notes

Installation is typically performed by a licensed low-voltage cabling contractor or qualified network technician in accordance with TIA-568 structured cabling standards. Power down or disconnect active network equipment before seating patch cables to avoid unintended network disruption. Secure the panel to the rack using the provided hardware before inserting patch cables to ensure stable port alignment. Verify cable routing and bend radius compliance per TIA-568 guidelines after installation.
