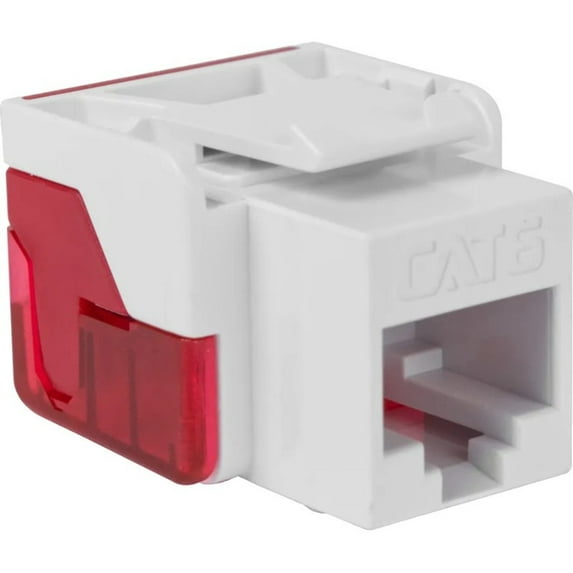

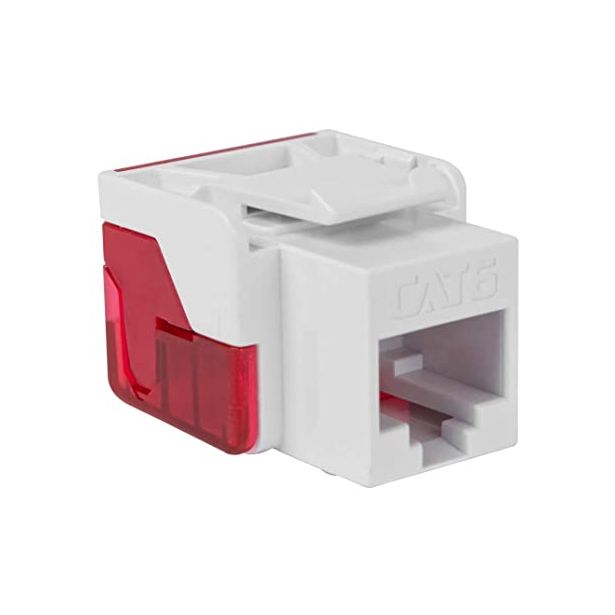

Icc IC107l6rwh cat6 rj45 keystone jack for ez style, 400-pack

Product Description

The ICC IC107L6RWH CAT6 RJ45 keystone jack in EZ Style is engineered for Gigabit Ethernet applications. The advanced printed circuit board design provides optimum signal quality, exceeding TIA Category 6 performance standards. It offers noise reduction due to enhanced crosstalk cancellation and minimum return losses. The EZ connector's flat back IDC construction offers faster installation through its in-line termination design.

• Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.
• Designed with in-line 110 IDC, in-sequence termination reducing termination time.
• Exceeds ANSI/TIA-568-C requirements for permanent performances.

Product Highlights

This ICC CAT6 keystone jack provides superior performance and reliability for data networks, supporting maximum speed and bandwidth.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: IC107L6RWH
• Country of Origin: Taiwan

Technical Specifications

• Brand Name: ICC
• Manufacturer Part Number: IC107L6RWH
• Product Line: EZ
• Product Name: CAT6 RJ45 Keystone Jack for EZ Style
• Product Type: Network Connector
• TAA Compliant: yes
• Connector Type: EZ-RJ45
• ADI Part Number: H2-107L6RWH
• Connector Details: 1 x RJ-45 Keystone - Female
• Packaged Quantity: 400
• Network Category Type: CAT6
• Features: Crosstalk Protection,Far End Cross Talk (FEXT),Flame Retardant,Near End Cross Talk (NEXT),PoE++
• Mount Type: Surface mount
• Cable Type: Category 6
• Connector Gender: Female
• Height: 0.64"
• Width: 0.57"
• Length: 1.11"
• UPC: 633758093897
• Model: IC107L6RWH
• Wire Type: CAT6
• Category Rating: Cat6
• Jacks/Modules: Yes
• Compatible Devices: Wall Plate, Patch Panel
• Special Feature: Data Transfer, High Speed, Lightweight
• Recommended Uses For Product: Networking, Data Center, Office, Home Networking, Security Systems
• Ethernet cable category: Cat 6
• Data Transfer Rate: 1000 Megabits Per Second
• Shape: Flat
• Number of Pins: 8
• Unit Count: 400.0 Count
• Specification Met: icc
• Indoor/Outdoor Usage: Indoor, Outdoor
• Number of Items: 400
• Connection: RJ-45 Keystone - Female
• Count per pack: 400
