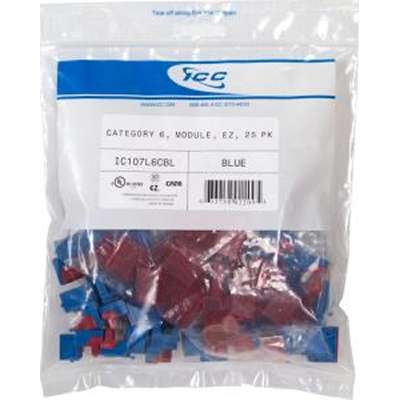

Icc IC107l6cbl cat6 rj45 keystone jack, ez style, 25-pack

Product Description

The ICC IC107L6CBL is a Category 6 modular RJ-45 keystone jack in EZ style. This 8-position 8-conductor (8P8C) connector is engineered for Gigabit Ethernet applications. The advanced printed circuit board design provides optimal signal quality exceeding TIA Category 6 performance standards. It features enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses.

• CAT 6 rated connectors provide excellent performance for data networks.
• PCB technology provides maximum performance and superior signal quality.
• Enhanced crosstalk cancellation reduces return loss and improves performance.

Product Highlights

This ICC CAT6 keystone jack supports high-speed data transmission and reduces noise. It is compatible with ICC faceplates, inserts, surface mount boxes, and blank patch panels.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: IC107L6CBL
• Country of Origin: Taiwan

Technical Specifications

• Wire Type: CAT6
• Brand Name: ICC
• Manufacturer: ICC
• Product Line: EZ
• Product Name: IC107L6CBL Cat.6 Network Connector
• Product Type: Network Connector
• Product Model: IC107L6CBL
• TAA Compliant: yes
• Connector Type: RJ-45 Network Female
• ADI Part Number: H2-107L6CBL
• Package Contents: IC107L6CBL Cat.6 Network Connector 25 x Wire Cap
• Connector Details: 1 x RJ-45 Network Female
• Packaged Quantity: 25
• Network Category Type: CAT6
• Environmentally Friendly: Yes
• Manufacturer Part Number: IC107L6CBL
• Environmental Certification: ROHS
• Features: Crosstalk Protection,Far End Cross Talk (FEXT),Flame Retardant,Near End Cross Talk (NEXT),PoE++
• Cable Type: Category 6
• Connector Gender: Female
• Contact Plating: Gold, Nickel
• Height: 0.64"
• Width: 0.57"
• Length: 1.11"
• Indoor/Outdoor: Indoor
• Current rating: 1.5 amps
• Insulation resistance: 500 mohms min.
• Contact resistance: 20 mohms max.
• DC resistance: 0.1 ohm max.
• Plug insertion life: 750 cycles min.
• Plug and jack contact force: 100 grams min. using FCC approved plug
• Plug retention force: 30 lbs min.
• Temperature: -40° to 150° F (-40° to 68° C)
• Housing: ABS, UL 94V-0
• Jack wiring: 50 micro inches of gold over 100 micro inches of nickel
• Connector: insulation displacement connector (IDC); accepts 22~24 AWG solid wire
• Category: CAT 6
• Connectors: 8-position 8-conductor (8P8C)
• Termination: In-line 110 IDC
• Wiring Diagram: Integrated TIA-568A/B color wiring diagram
• Compatibility: Compatible with all faceplates, inserts, surface mount boxes, and blank patch panels
• Termination Tools Compatibility: Compatible with ICC termination tools ICACSPDT00 and ICACSPDTEH
• Standards: Exceeds ANSI/TIA/EIA-568-B.2-1 Category 6 connecting hardware requirements
• Other: Backwards compatible to all lower rated category components, Compatible with all furniture faceplates, bezels, and surface mount boxes, UL listed
• UPC: 633758022095
• Type: Wall Jacks/Inserts
• Model: IC107L6CBL
• Item Type: Wall Jacks/Inserts
• Part Type: Wall Jacks/Inserts
