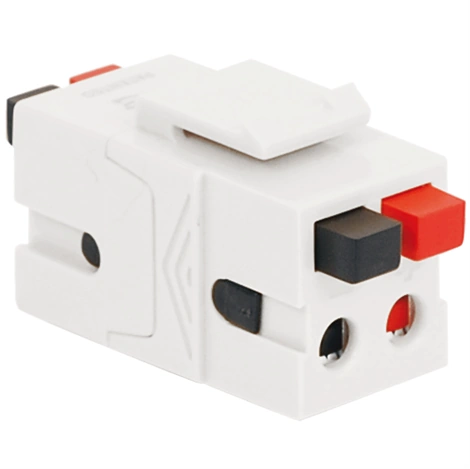

Icc IC107DSBWH Module, Speaker, Dual, Front/Back Button, Wh

Product Description

The ICC IC107DSBWH dual button speaker keystone insert simplifies in-wall speaker wire management by terminating speaker wire runs at a wall plate outlet. It reduces outlet size, requiring half the space for dual speaker connections. It allows any 5.1, 6.1, or 7.1 surround sound home theatre system to be installed in a single gang outlet.

• Reduced outlet size with 1/2 the space required for dual speaker connections
• Allows any 5.1, 6.1, or 7.1 surround sound home theatre system to be installed in a single gang outlet
• Accepts up to 16 AWG speaker wire on front and rear connections

Product Highlights

This module is compatible with standard faceplates and features color-coded push buttons for easy installation and correct polarity.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: IC107DSBWH
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Country of Origin: Taiwan, Province of China
• ADI Part Number: H2-107DSBWH
• Brand Name: ICC
• Manufacturer: ICC
• Manufacturer Part Number: IC107DSBWH
• Packaged Quantity: 1
• Product Model: IC107DSB
• Product Name: Audio Adapter
• Product Type: Dual Speaker Module
• TAA Compliant: No
• Compatible Wire Gauge: Up to 16 AWG
• Supported Systems: 5.1, 6.1, 7.1 Surround Sound
• Wall Plate Size Requirement: Single Gang Outlet
• Polarity Markings: Yes (+ and -)
• Compatible Components: All IC107 and IC108 faceplates and boxes
• Side 1: Push Pins (Side 1)
• Side 2: Push Pins (Side 2)
• Optional Side 3: No
• Electrical Rating: 300 Volts MAX @ 75 C
• Electrical Current: 15 AMP MAX
