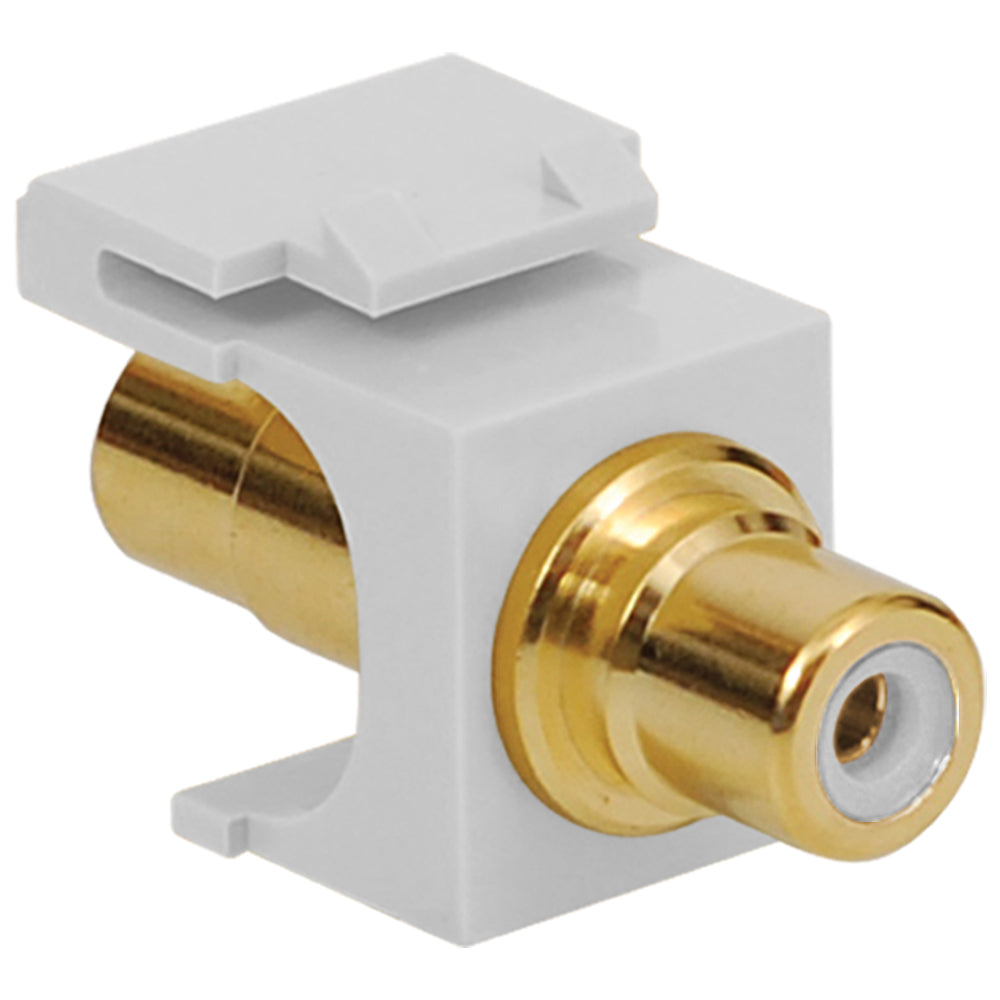

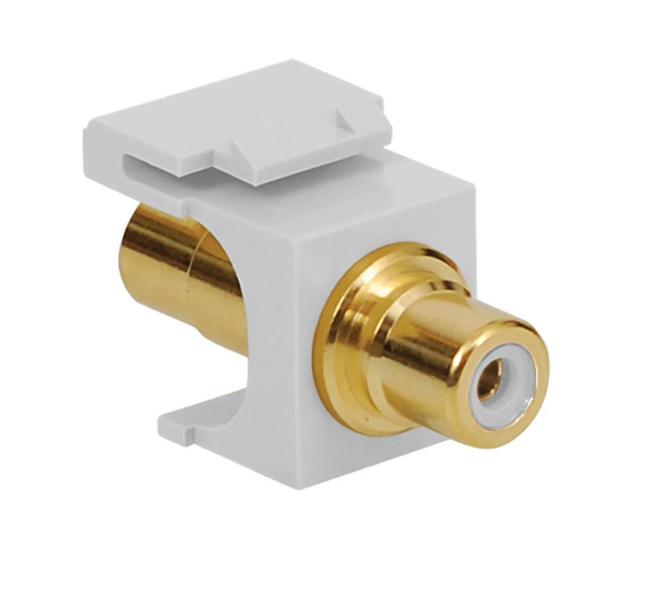

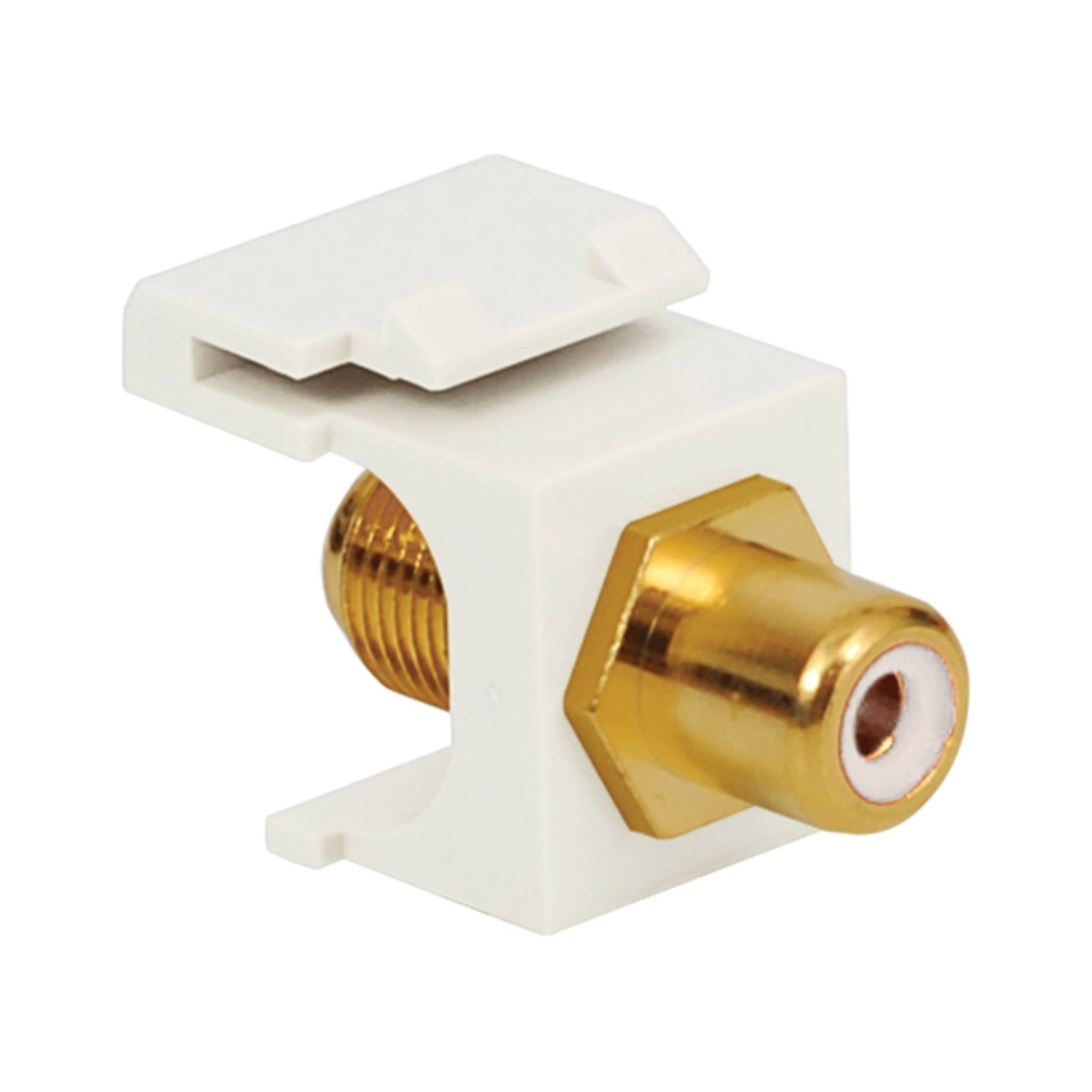

Icc IC107B6GWH rca female to female keystone jack

Product Description

The ICC IC107B6GWH is a professional grade, gold plated RCA female to female keystone jack designed for plug and play RCA connections in standard keystone wall plates or Decora inserts. It is suitable for residential home theater or commercial audio video applications. Both sides feature white colored insulators for easy identification of signal types.

• Ideal for Home Theaters, High Resolution Monitors, and High Fidelity Surround Sound Systems
• Works with all standard wall plates and faceplates
• Ideal for residential or commercial use

Product Highlights

Professional grade RCA keystone jack for creating RCA connections in wall plates. Ideal for home theater and commercial audio video applications.

Product Information

Standard Information

• Brand: ICC
• Manufacturer Part Number: IC107B6GWH
• Country of Origin: China

Technical Specifications

• Part#: IC107B6GWH
• Product Type: A/V Inserts
• Performance: Video, Audio
• Style: RCA – RCA White Insert
• Connector: RCA
• Jack Style: HD
• Material Housing: ABS PC, UL 94V-0
• RCA Female to Female Connector Material: Brass with flash Gold Plating
• Insulator: B-White, G-Green, K-Black, L-Blue, R-Red, and Y-Yellow
• Contact Resistance: 30 ohms max
• Insulation Resistance: 100m ohm min at DC 500V
• Dielectric Strength: AC 500V for one min
